Page 61
57
BOOM LIFT MODELS X23J
JLG
X23JR0620113

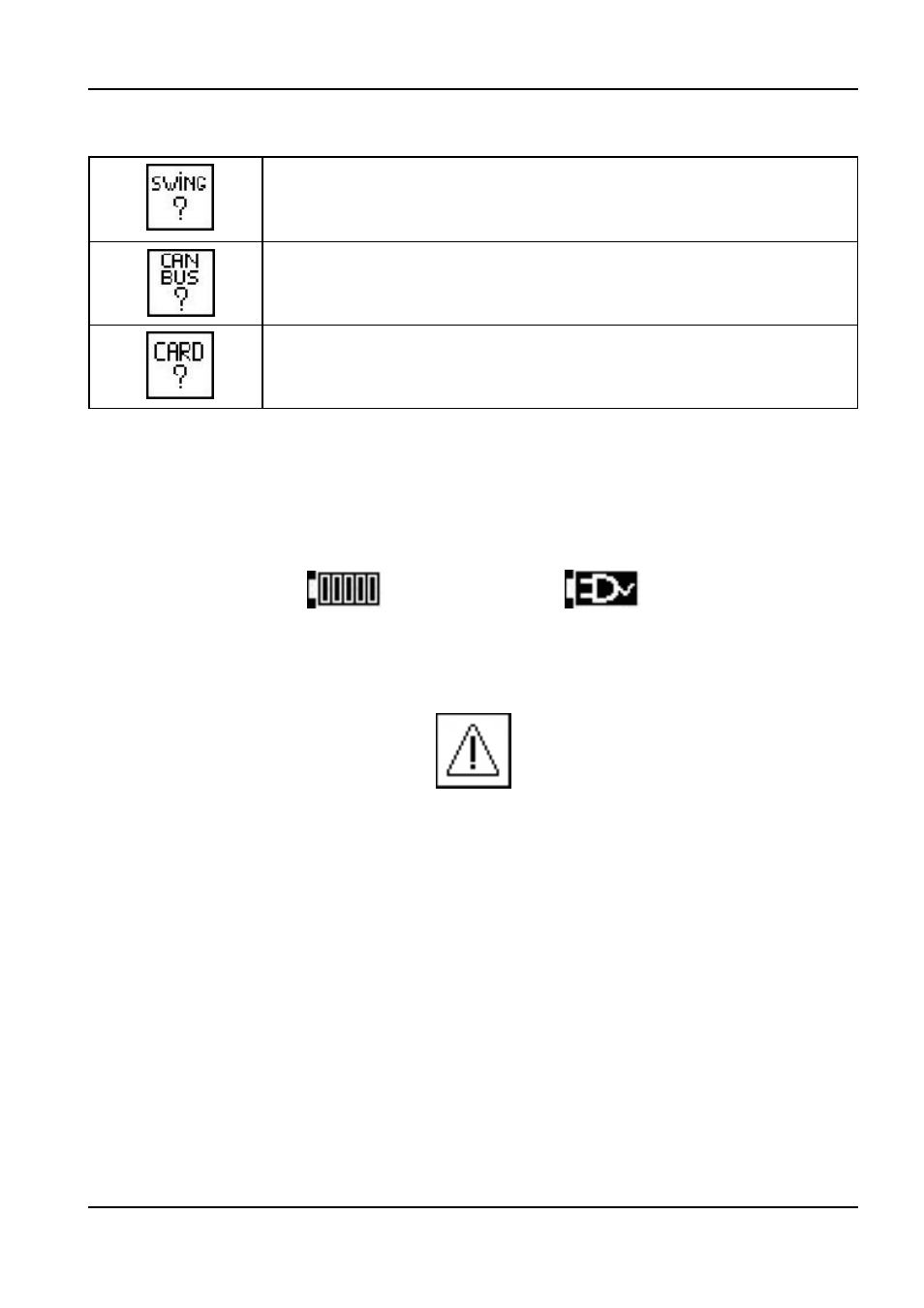

POSITION 8:
Position 8 displays the battery charge status or the icon indicating the battery is being rechar‑
ged in the Lithium version.
Position 8 is also used to indicate the selection of the emergency descent operation from
basket with solenoid valves on cylinders
As well as the main screen described above, there are other functional displays that will
be described successively.
4.1.2 Joystick
Through the joystick the operator selects which movement has to be carried our, in which
direction and at which speed. The direction of the joystick defines the direction of the move‑
ment. The movement of the joystick defines the speed of the same. The more the joystick
goes away from the central neutral zone, the more the speed of the movements increases.
Starting on the left of the image shown below, the joysticks are numbered from 1 to 8.
The following table states the controlled movement and its direction depending on the acti‑
vation direction of the joystick.
Indicates that the angular position sensor doesn’t work correctly (only
for variable area version).
The machine shows problems in connecting with line CAMBUS.
A defective eletronic board or a wrong software had been installed.
