BOOM LIFT MODELS X23J
JLG
162 X23JR0620113
7.27 E
NGINE MAINTENANCE THERMIC VERSION
Refer to the attached use and maintenance manual.
8 SAFETY STANDARDS REGARDING TRANSPORT
Always make sure that the vehicle used to transport the platform has suitable capacity and
that no part of the MEWP escapes from the clearance limits prescribed by the Highway
Code.
D
URING TRANSPORT , COVER THE REMOTE CONTROL WITH AN APPROPRIATE PROTECTION OR
DISCONNECT IT AND PROTECT IT
.
8.1 R EMOVING THE BASKET
The basket can only be removed to allow passage through holes measuring between 1500
and 990 mm.
I
F THE MACHINE IS WITHOUT BASKET
,
ONLY TRACK MOVEMENT IS ALLOWED
,
SAYING AT A MINIMUM
DISTANCE OF 1 METRE FROM THE MACHINE ITSELF .
Act as follows to remove the basket:
‑ Remove the remote control from the support;

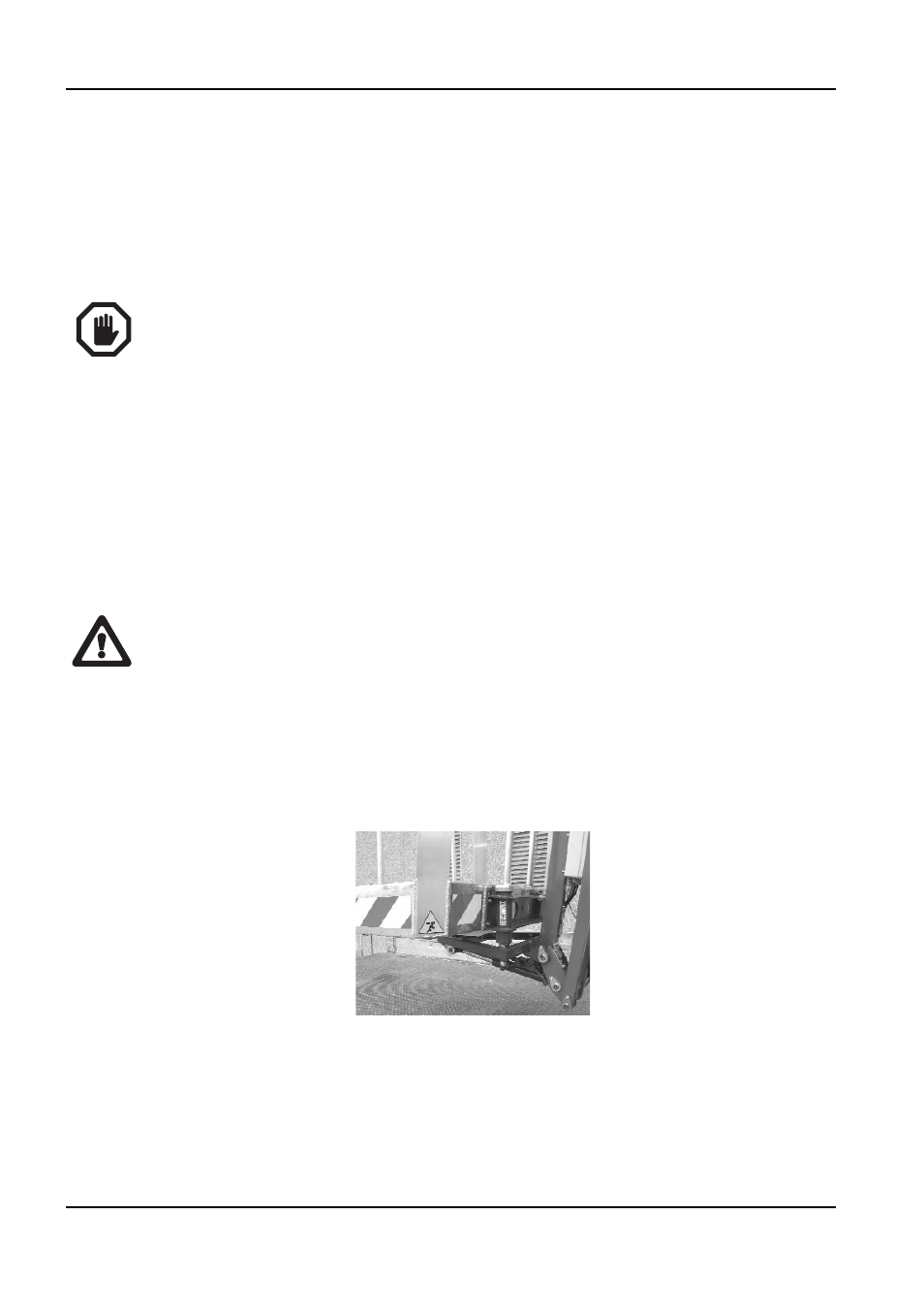

‑ Loosen the aluminium lids on the basket fixing pins (see photo);
‑ Slide the basket off in an upwards direction.
Re‑assemble the basket as follows:
‑ Insert the basket into the fixing pins on the basket support, paying attention to make it
descend as parallel as possible to the basket support;
‑ Tighten the two aluminium block lids.
IMPORTANTE IMPORTANT
