119
Charge curve
The battery charger features just one charge curve (IUIa) plus balancing and maintenance,
designed specially for recharging the battery pack of the self‑propelled elevating platform
JLG.

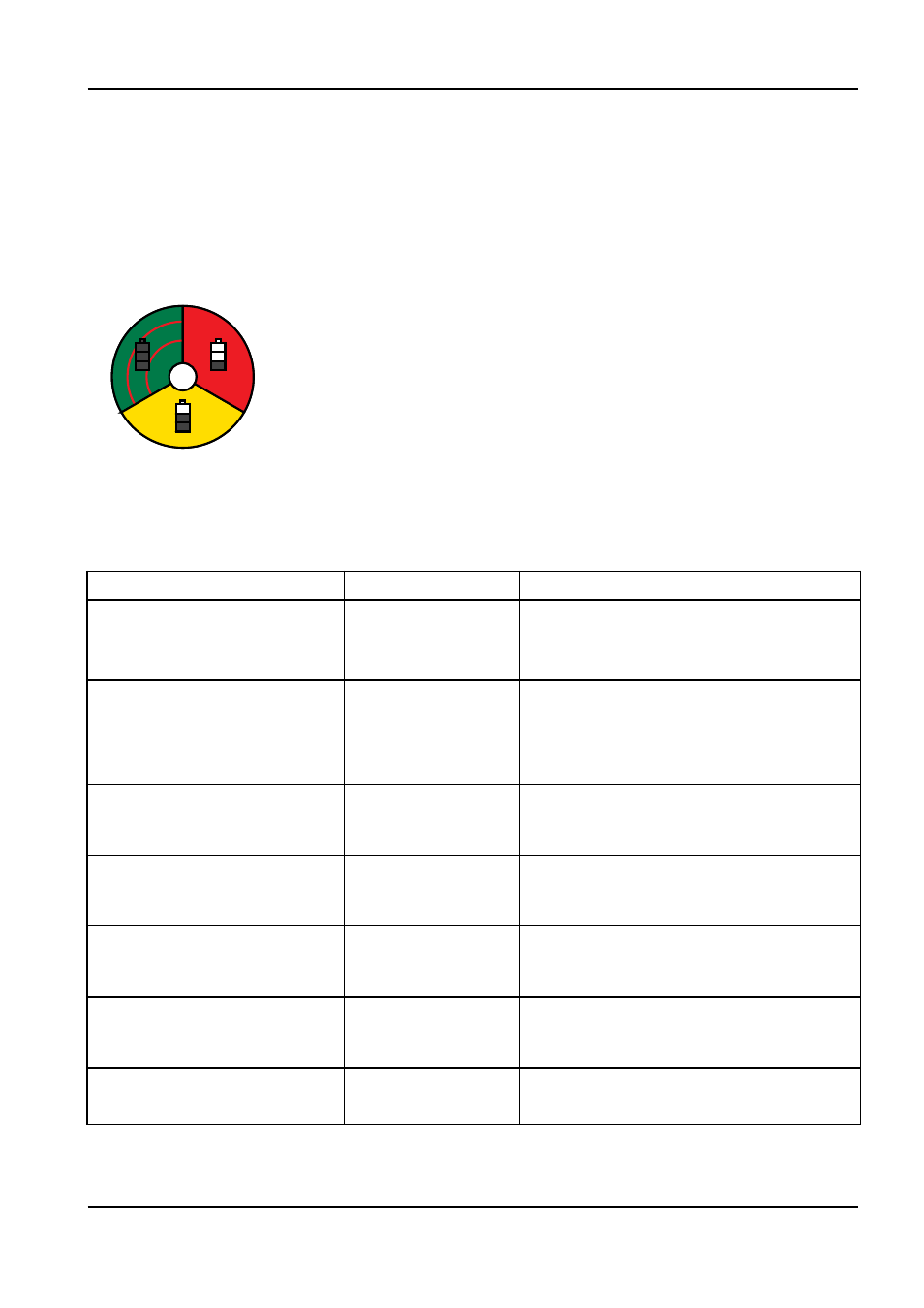

LED Indicator
RED LED indicates that the battery is in the initial charging phase
YELLOW LED indicates that the battery has reached 80% of recharge
GREEN LED, staggered with red flashings, indicates that battery rea‑
ched the balance/maintenance phase.
Further information are available in the description of the Charge
Curve.
Example: RED LED on with short shutdowns indicates a constant vol‑
tage phase.
Warnings (two‑tone beep)
A two‑tone beep and flashing LED indicates that an alarm situation occurred.
In case of alarm the battery charger stops supplying power.
BOOM LIFT MODELS X23J
JLG
X23JR0620113
Condition Type of Warning Description (Action)
Beep + flashing RED Battery presence
Battery disconnected or not compliant
(Check the connection and the nominal
voltage).
Beep + flashing YELLOW Thermal probe
Thermal probe disconnected during
recharge or out of functioning range
(Check the connection of the probe and
gauge the temperature of the battery).
Beep + flashing GREEN
Timeout
Phase 1 and/or phase 2 longer than the
maximum permitted (check the capacity
of the battery).
Beep + flashing RED‑YEL‑
LOW
Battery Power
Loss of control of output current
(Failure of control logic).
Beep + flashing
RED‑GREEN
Battery voltage
Loss of control of output voltage (Bat‑
tery disconnected or failure of control
logic).
Beep + flashing
YELLOW‑GREEN
Selection
An unused configuration has been selec‑
ted (Check the position of the selector).
Beep + flashing
RED‑YELLOW‑GREEN
Thermal
Semiconductors overheating
(Check the functioning of the fan).
