Following the hazard deriving from the use of the platform during the by‑pass of the
safety devices, carefilly read paragraphs regarding the use of the safety devices release
key selector switch.
The key used to activate the safety device by‑pass is lead‑sealed to the side of the electric
components box in proximity of the battery.
Force the lead‑sealing to remove it. After use of the safety device by‑pass a JLG after‑sales
centre must be contacted in order to verify the causes that determined the necessity to use
the safety device by‑pass and to lead‑seal the key
The safety device circuit board records every time the safety device by‑pass key is activa‑
ted along with the movements made during these operations.
Note: In case of machine with variable stabilization area the by‑pass of the safety measures
does not allow to go out the working area foreseen in function with the stabilization configu‑
ration
The safety BY‑PASS permit to move the machine with a extra load inside the basket but
the alarm of maximum load is always showed on the display. This BY‑PASS must be used
only from official dealer/service centre and are strictly prohibited for the end user.
5.5 E MERGENCY POSITION CONTROLS
‑ SELECTION PANEL, EMERGENCY STOP AND START‑UP.

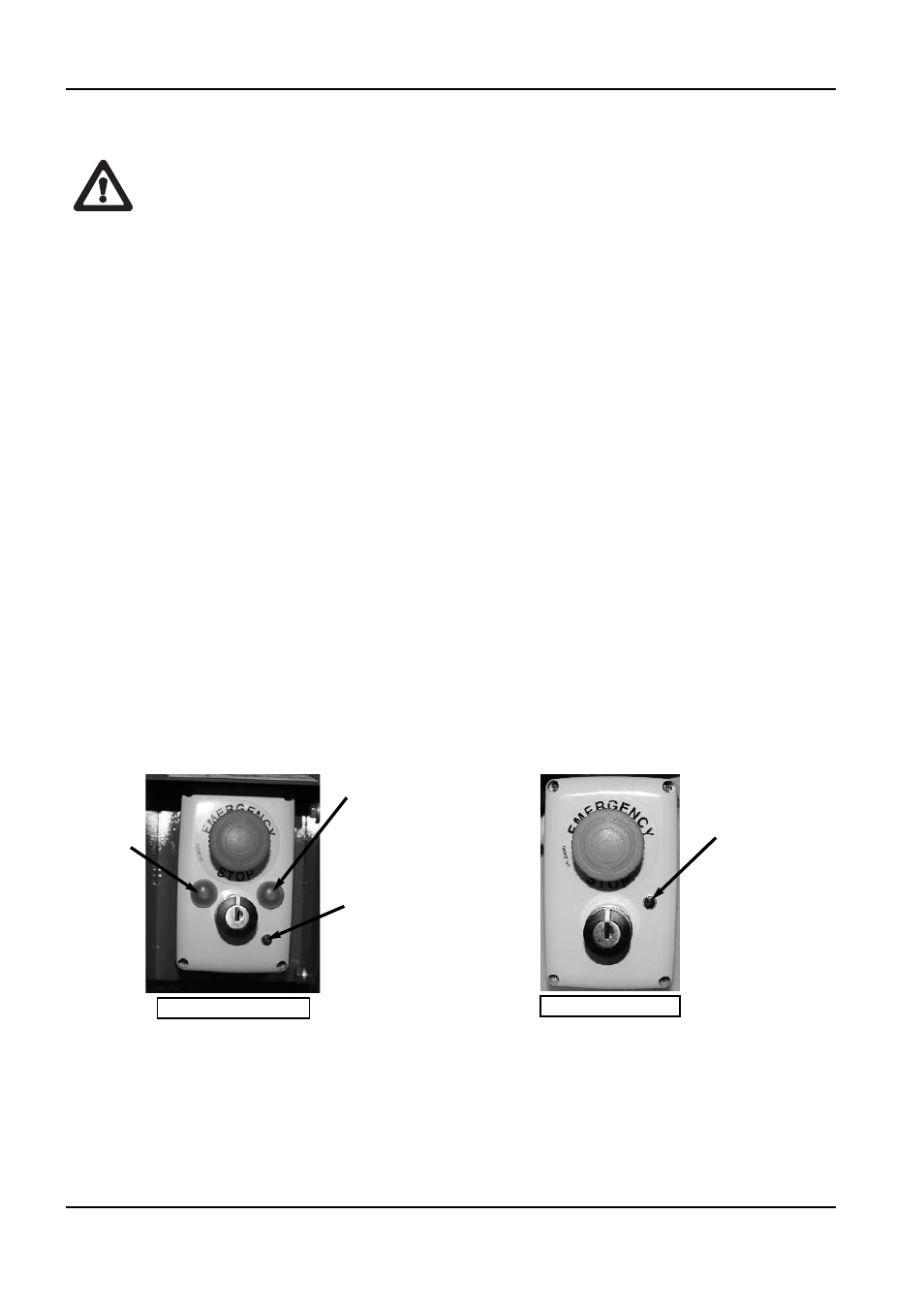

The following are housed on the panel:
‑
Three position key for the selection of control location/panel.
1_The key in central (neutral) position validates the remote primary control in the
basket.
2_Turning the key clockwise and keeping it in place the emergency control position is
enabled.
PERICOLO
A
ERIAL PART
MOVEMENT
CONSENT
INDICATOR
STARTER
THERMIC
ENGINE
STARTER
ELECTRIC
ENGINE
DANGER
AERIAL PART
MOVEMENTS
ENABLED
LIGHT
THERMIC MOTOR LITHIUM MOTOR
