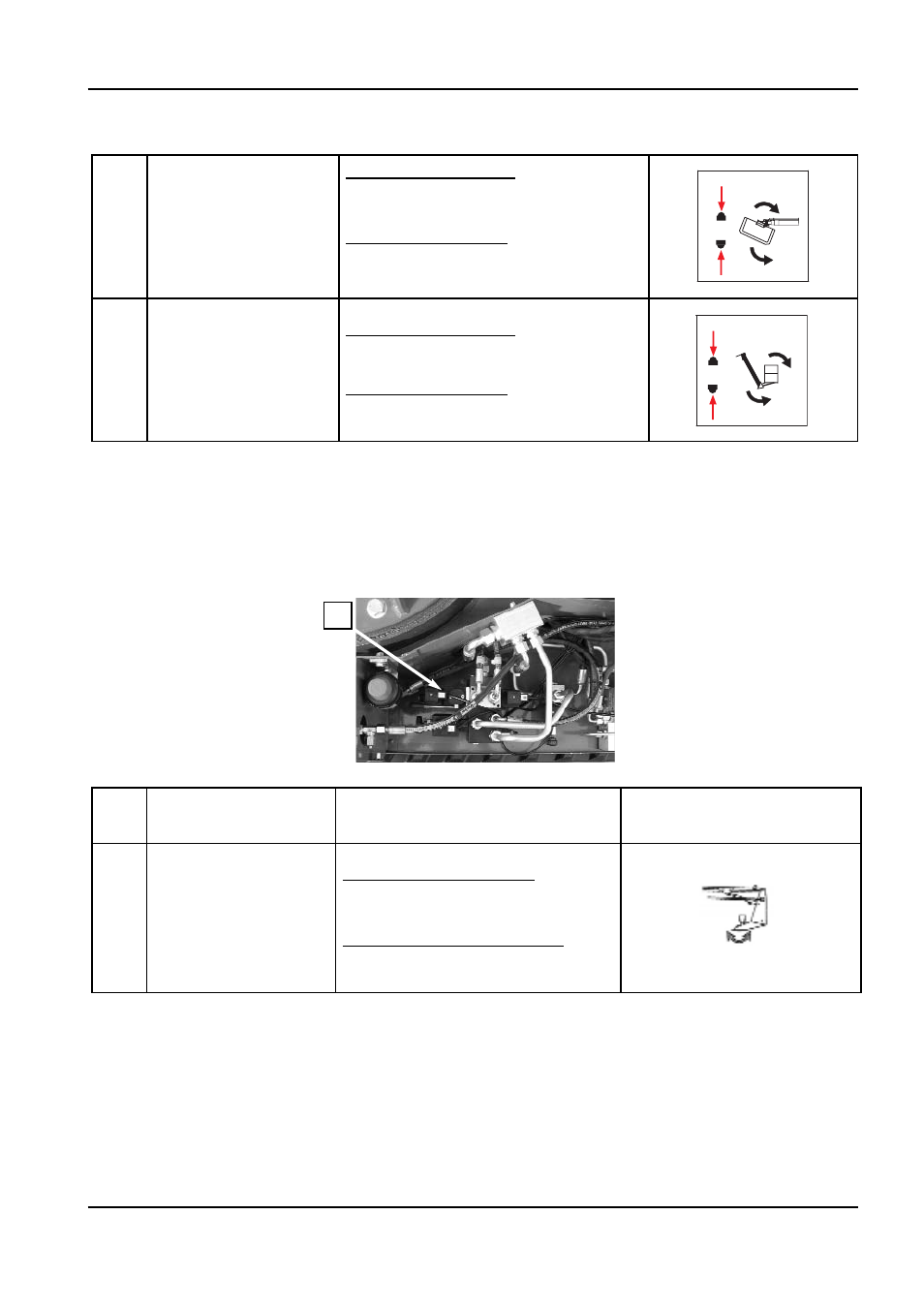

• ROTATION HYDRAULIC DISTRIBUTOR
It is positioned in the proportional valves and hand pump compartment. It can be accessed
by removing the protection lid.
In case of machine with variable stabilization area, stabilized in reduced area, the ground
manual emergency controls allow to move the machine just within 40° (+20°/‑20°) between
the outriggers 2 and 4
If this area is exceeded all the movements will be completely forbidden from this position
and on the display an error message will appear and any use of the macchine except from
the one described in the paragraphs will be prohibited until the machine is not positioned in
BOOM LIFT MODELS X23J
JLG
X23JR0620113
5
Basket rotation
control
Activating button 5A:
the basket rotates in a clockwise
direction
Activating button 5B:
the basket rotates in an anti‑clockwi‑
se direction
6
Basket levelling
control
Activating button 6A:
the basket opens
Activating button 6B:
the basket closes
7
Ref. Descriptions
Activation
/movement Pictograms in
proximity of the control
7 Rotation control
Moving upwards lever 7:
anti‑clockwise rotation
Moving downwards lever 7:
clockwise rotation
