21

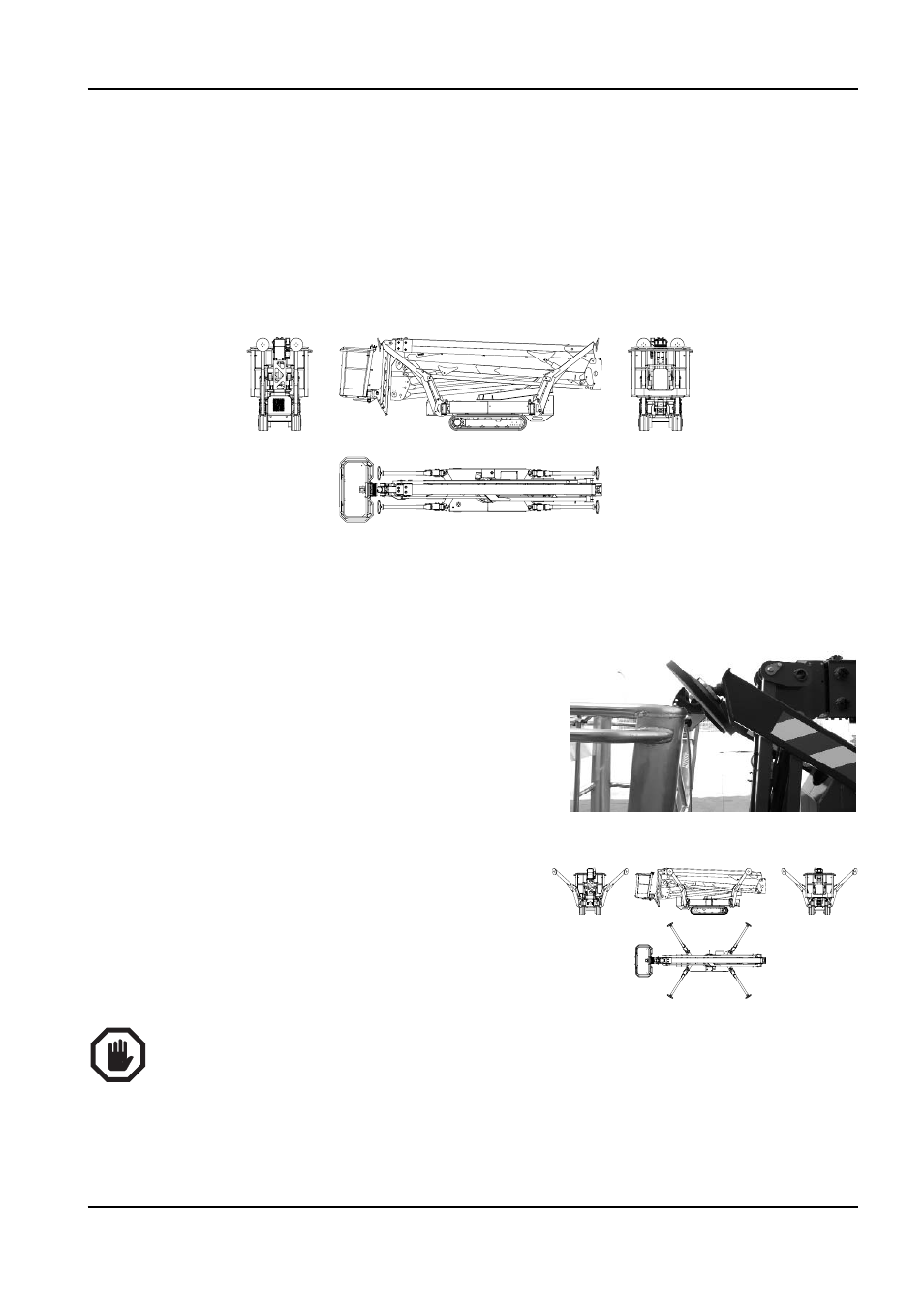

2.1.6 TRANSPORT AND STABILISATION POSITION (STANDARD VERSION)
The overhead platform has rotating outriggers on a joint connecting the frame and outrigger
itself.
Regarding the outriggers, two positions are defined:
• TRANSPORT POSITION
• STABILISATION POSITION
The transport position is defined as the completely closed configuration and aligned with the
completely lifted and turned outriggers in a way to be parallel to the machine axle.
This configuration is the most compact possible for the machine and is that recommended for
all traversing operations on flat surfaces.
In the transport configuration, the vicinity of the outrig‑
ger plates to the basket handrail creates a potential
shearing hazard, it is appropriately indicated with
stickers.
Do not place the hands in this area during traversing
phases.
The stabilisation position is defined as that with the
outriggers raised from the ground, but turned by
about 45° with respect to the machine axis in a way
to almost create a square with the outrigger plates
positioned on the ends.
A lock pin with spring positioning blocks the outrig‑
gers in one or other position.
For the stabilization positions of the version with variable stabilization area please read
paragraph 6.4.6
Passage from transport configuration to stabilisation configuration Stan‑
dard version.
