SECTION 3 - CHASSIS & TURNTABLE
3121619 – JLG Lift – 3-13
3.8 DRIVE HUB

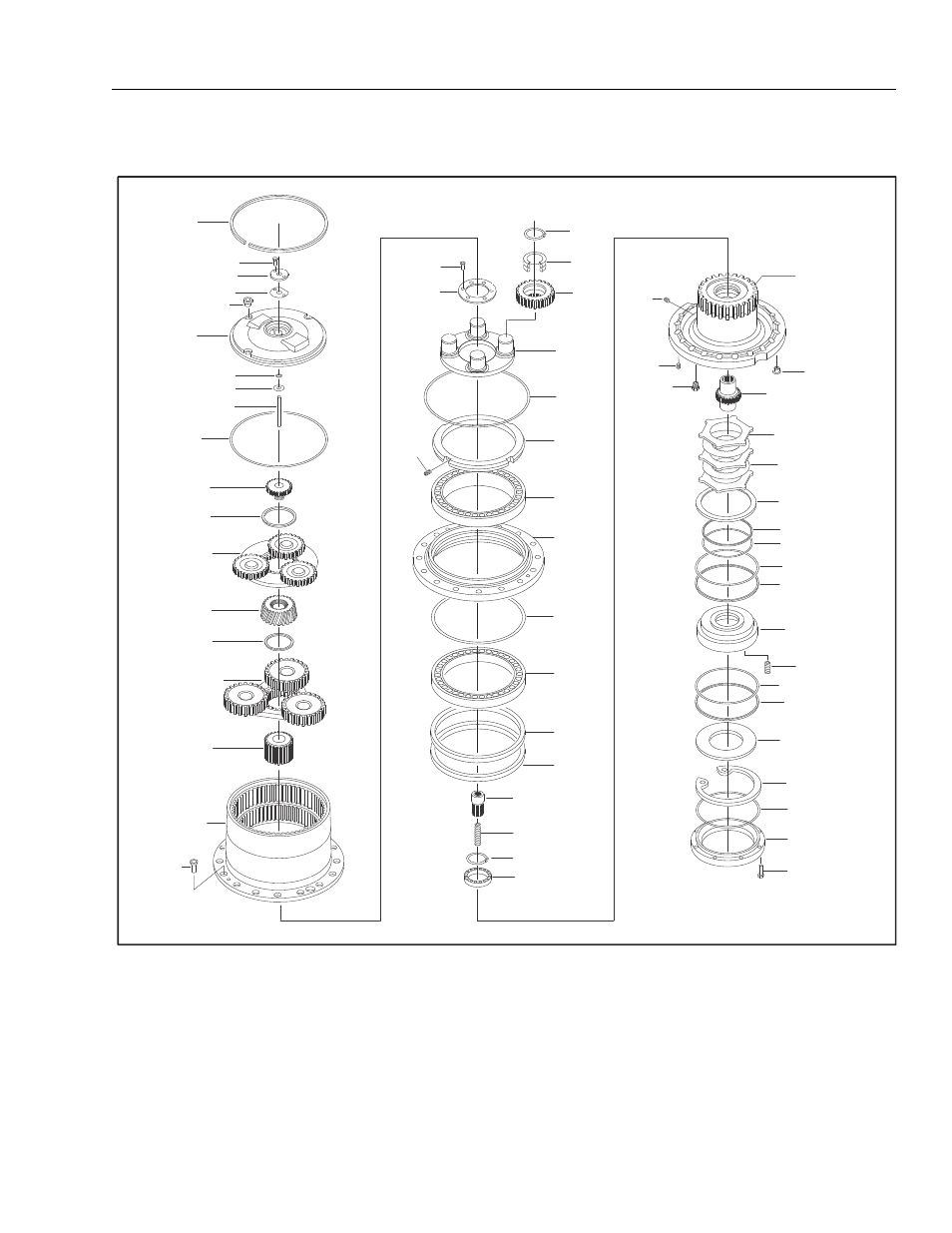

Figure 3-11. Drive Hub
1. Ring
2. Screw
3. Cover
4. Gasket
5. Plug
6. Cover
7. O-Ring
8. Shim
9. Pin
10. O-Ring
11. Pinion
12. Retaining Ring
13. Gear Reduction Assy
14. Pinion
15. Ring
16. Gear Reduction Assy
17. Pinion
18. Hub Housing
19. Screw
20. Screw
21. Plug
22. Retaining Ring
23. Bearing
24. Planet Wheel 25. Flange
26. O-Ring
27. Ring Nut
28. Set Screw
29. Bearing
30. Hub Support
31. O-Ring
32. Bearing 33. Seal
34. Coupling
35. Spring
36. Retaining Ring
37. Bearing
38. Axle
39. Plug
40. Plug 41. Plastic Plug
42. Input Shaft
43. Iron Disc
44. Brake Disc
45. Spacer
46. Seal
47. O-Ring
48. Seal 49. O-Ring
50. Brake Piston
51. Brake Spring
52. Spacer
53. Retaining Ring
54. O-Ring
55. Motor Support
56. Screw
1001149921
38
39
39
40
43
22
23
24
20
21
25
41
42
44
26
28
27
29
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
30
31
32
33
33
34
35
36
37
45
46
47
48
49
50
51
49
48
52
53
54
55
56
