Page 324

SECTION 6 - JLG CONTROL SYSTEM

6-42

– JLG Lift –

3121619

SHOWN IN PHANTOM

FOR CLARITY

DETAIL B

INSTALL BETWEEN

LINK AND ARM

TORQUE UNTIL SNUG

5 NM MAX

BOLT

SPACER

ANGLE
SENSOR

SENSOR
MOUNT

SENSOR
LINK

SENSOR COVER

WASHER

NUT

SCREW, NUT

SCREW,
THREADLOCKER

P/N-0100011

BOLT, WASHER,
THREADLOCKER

P/N-0100011

SCREW, WASHER,
THREADLOCKER

P/N-0100035

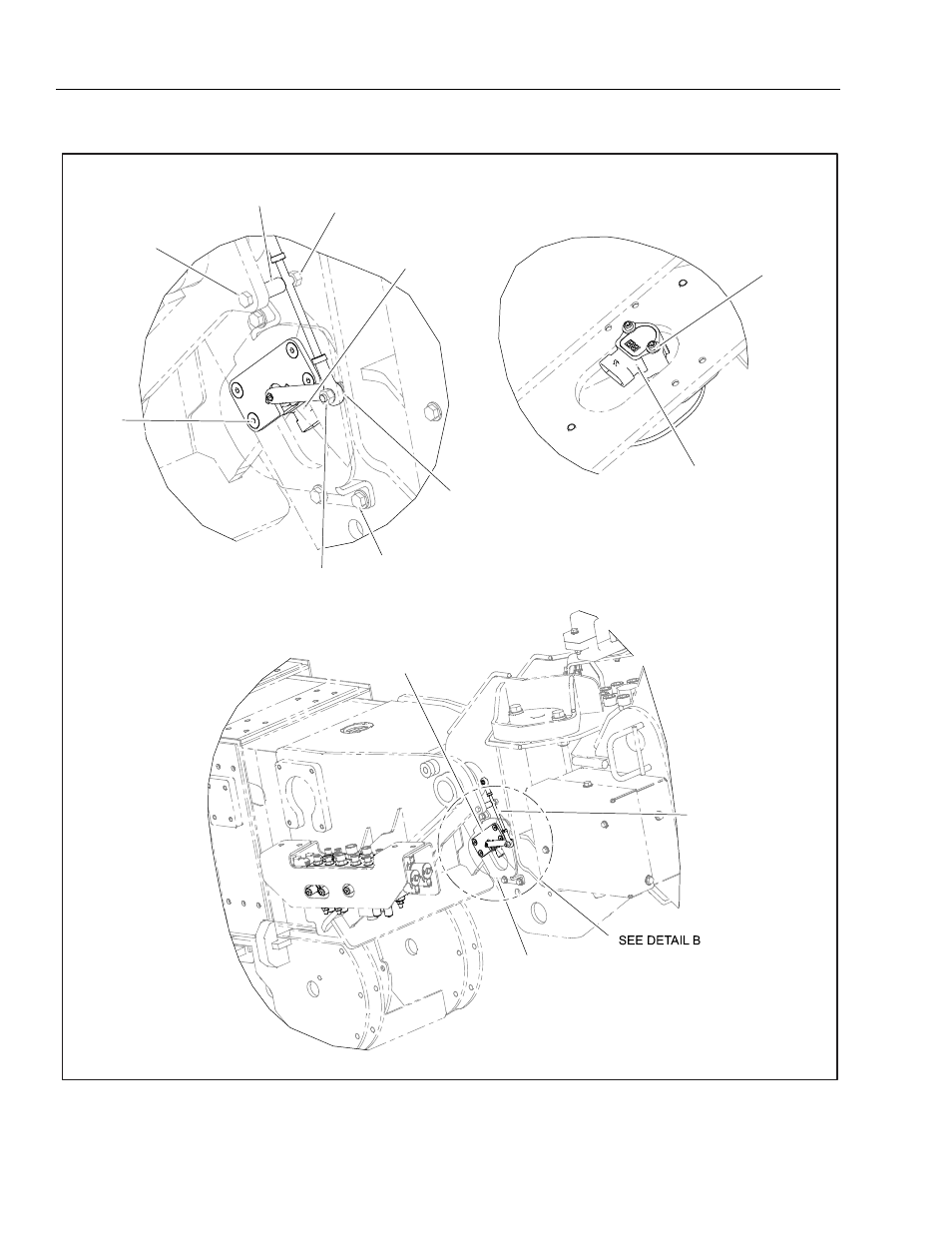

Figure 6-22. Jib Level Angle Sensor
