SECTION 5 - BASIC HYDRAULIC INFORMATION & HYDRAULIC SCHEMATICS
5-24 – JLG Lift – 3121619
1001139999
1
3
4
5
6
7
8
11**
12
4
2*
13***
14
15
16
17
18
19
18
20
21
22
23
24****
25
26
27
28
29
29
10
15
16
*Torque to 30-35 ft-lb (41-47 Nm)
**Torque to 4 in-lb (.4 Nm)
***Torque to 9 ft-lb (12 Nm)
****Torque to 200 ft-lb (271 Nm)
1. Screw
2. Counterbalance Valve
3. Barrel
4. Bushing
5. Spacer Sleeve
6. Length Sensor
7. Retainer Cap
8. Capscrew
9. Retaining Ring
10. Sensor Magnet
11. Setscrew
12. Plug
13. Capscrew
14. Tapered Bushing
15. Lock Ring 16. Seal
17. Piston
18. Backup Ring
19. O-Ring
20. Spacer 21. Backup Ring
22. O-Ring
23. O-Ring
24. Head
25. Wear Ring 26. Seal
27. Rod Wiper
28. Rod
29. Bushing

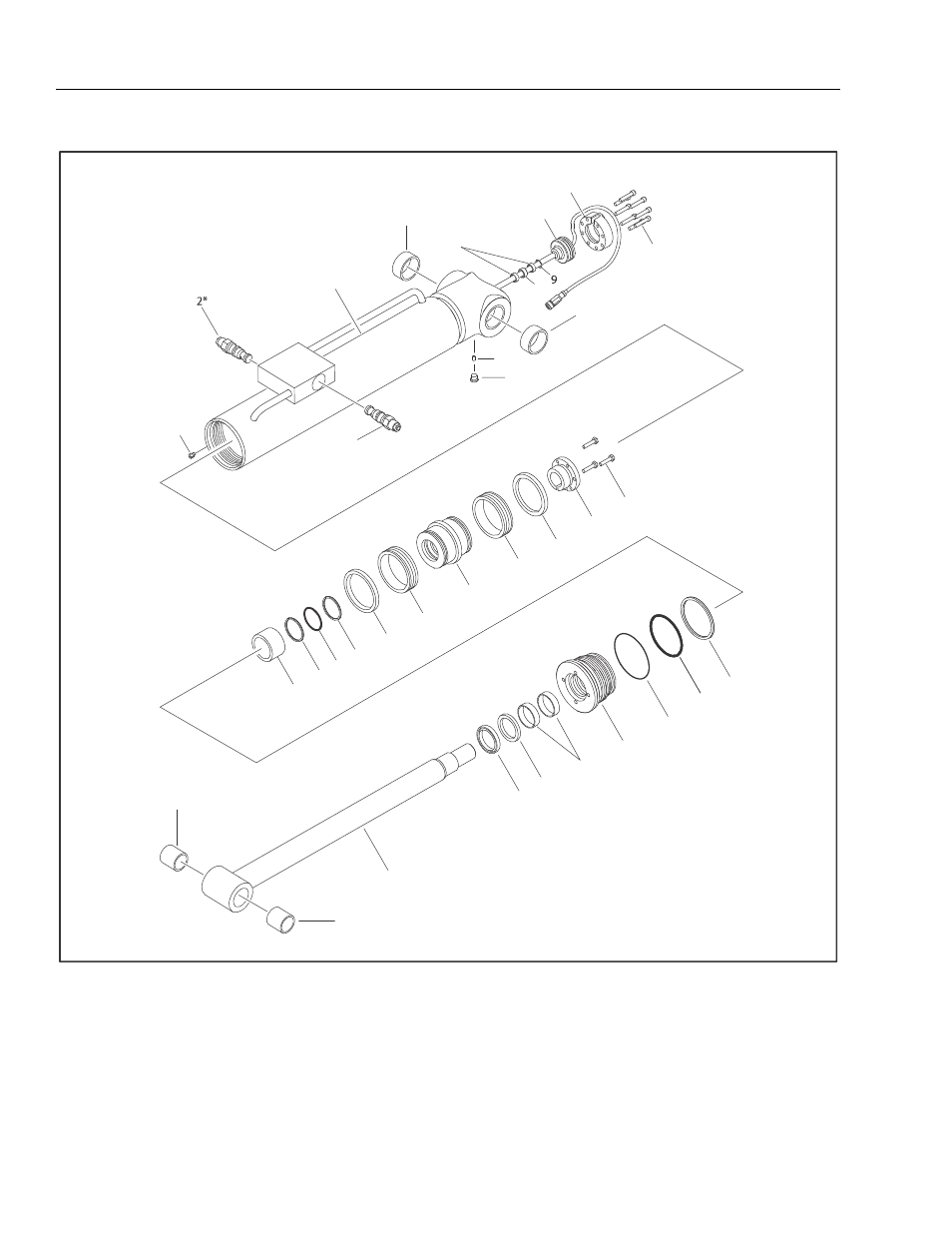

Figure 5-37. Platform Level Cylinder Assembly
