SECTION 7 - BASIC ELECTRICAL INFORMATION & ELECTRICAL SCHEMATICS
7-28 – JLG Lift – 3121619
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 RED B LNTH PWR 18 AWG CABLE
2 BLUE B LNTH SIG 18 AWG CABLE
3 BLACK B LNTH GND 18 AWG CABLE
4 --- --- --- ---
5 BROWN BRKN CBL PWR 22 AWG CABLE
6 BLACK BRKN CBL SIG 22 AWG CABLE
7 BLUE BRKN CBL GND 22 AWG CABLE
8 --- --- --- ---
SN221
CONN
POS
WIRE
COLOR
WIRE
LABEL GAUGE JACKET
1 BROWN BRKN CBL PWR 22 AWG CABLE
2 WHITE --- 22 AWG CABLE
3 BLUE BRKN CBL GND 1 22 AWG CABLE
4 BLACK BRKN CBL SIG 1 22 AWG CABLE
SN131
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
A RED B LNTH PWR 18 AWG CABLE
C BLUE B LNTH SIG 18 AWG CABLE
B BLACK B LNTH GND 18 AWG CABLE
SN401
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET
1 BROWN BRKN CBL PWR 1 22 AWG CABLE
2 WHITE --- 22 AWG CABLE
3 BLUE BRKN CBL GND 2 22 AWG CABLE
4 BLACK BRKN CBL SIG 22 AWG CABLE
S409
CONN
POS
WIRE
COLOR
WIRE
LABEL GAUGE JACKET
1 BLACK BRKN CBL SIG 1 22 AWG CABLE
1 BROWN BRKN CBL PWR 1 22 AWG CABLE
S410
CONN
POS
WIRE
COLOR
WIRE
LABEL GAUGE JACKET
1 BLUE BRKN CBL GND 1 22 AWG CABLE
1 BLUE BRKN CBL GND 2 22 AWG CABLE
2 BLUE BRKN CBL GND 22 AWG CABLE
S410
S409
X407B
SN131
SN221
SN401

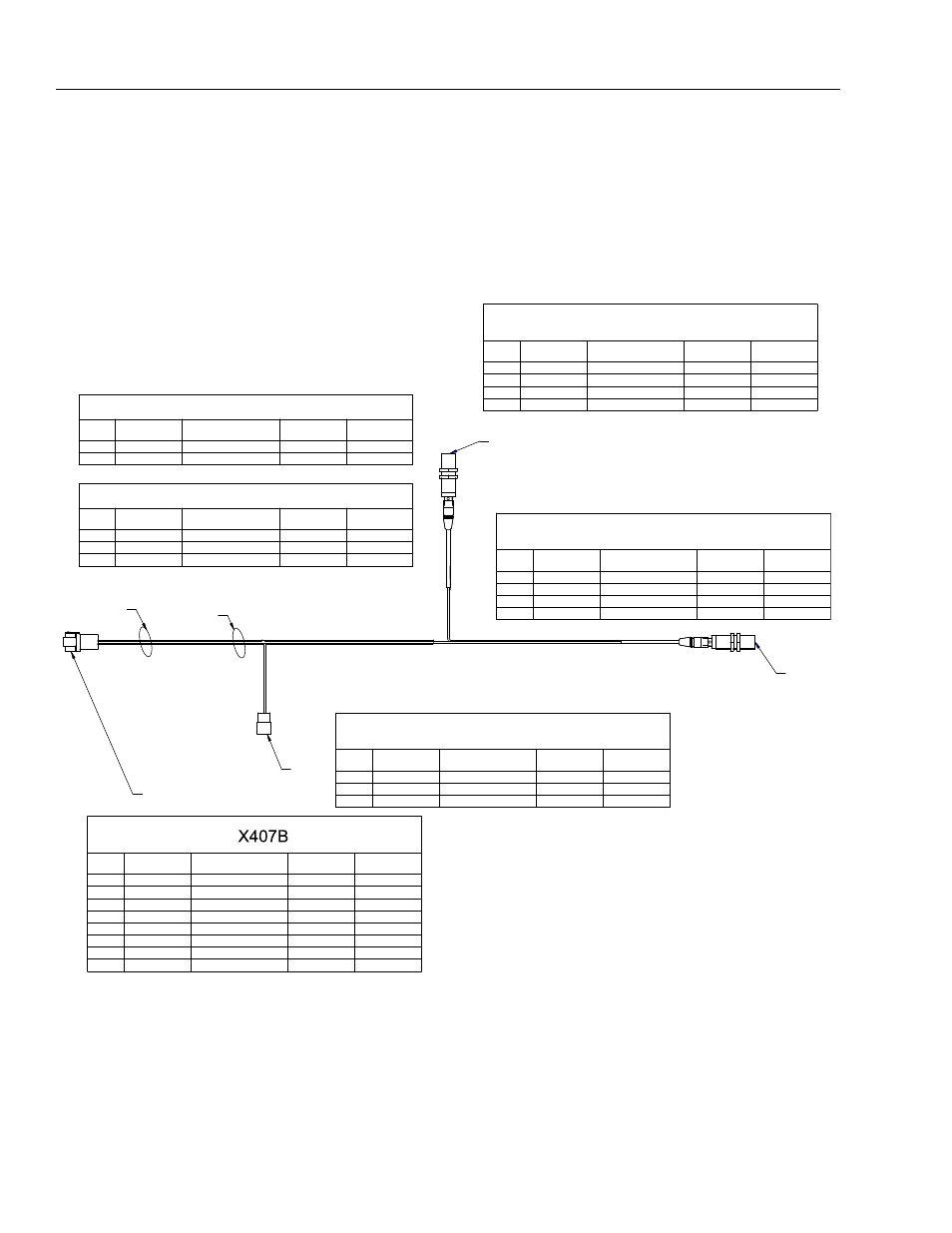

Figure 7-33. Base Boom Harness - Sheet 1 of 2
1001158411-B
