SECTION 6 - JLG CONTROL SYSTEM

3121619

– JLG Lift –

6-43

Sensor #8 - Jib Stow Angle Sensor (1)

See (See Figure 6-23.)

This sensor is used to measure Jib swing angle. This is a rotary
sensor mounted to the underside of the Jib Pivot weldment. It
is a dual output sensor in a single mechanical body with elec-
trically opposing signals.

Sensor #9 - Jib Lift Angle Sensor (1)

This sensor's function is to measure the Jib angle relative to
the Main Boom Pivot weldment. A linear position sensor is
located inside the Jib lift cylinder to measure cylinder stroke.

Torque 34 Nm

ANGLE
SENSOR

ANGLE
SENSOR PIN

SENSOR MOUNT

SENSOR
BRACKET

ADAPTER

SCREW, WASHER,
THREADLOCKER

P/N-0100035

SCREW,
THREADLOCKER

P/N-0100035

BOLT, WASHER
THREADLOCKER

P/N-0100011

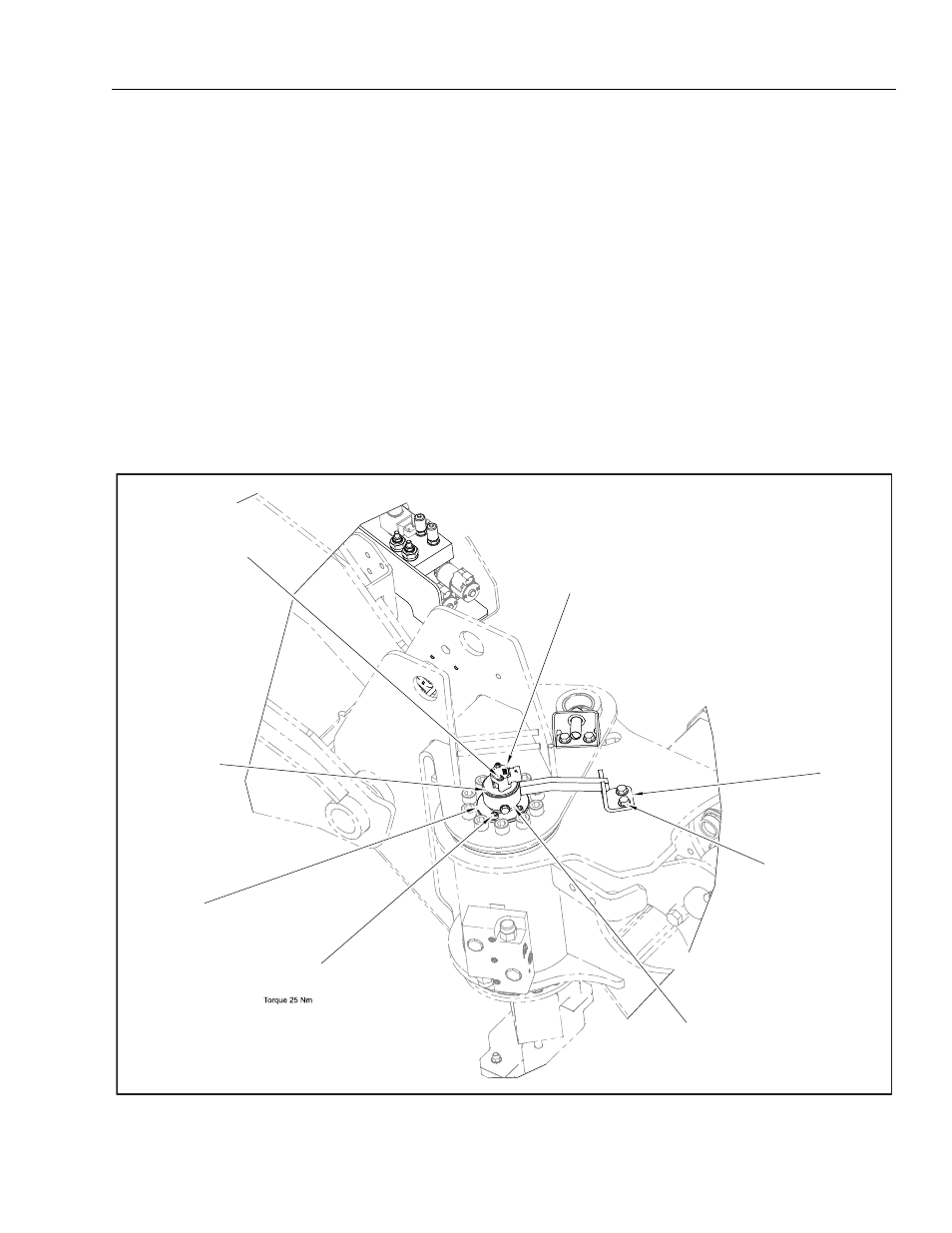

Figure 6-23. Jib Stow Angle Sensor
