SECTION 6 - JLG CONTROL SYSTEM
6-32 – JLG Lift – 3121619
1001119509A
Connector Pin Function Type
J4
(Blue)
1 AXLES SET LAMP DIGITAL OUTPUT
2 500# CAPACITY LAMP DIGITAL OUTPUT
3 BOOM CONTROL SYSTEM LAMP DIGITAL OUTPUT
4 START SWITCH DIGITAL INPUT
5 BASKET LEVEL DOWN DIGITAL INPUT
6 BASKET LEVEL DOWN DIGITAL INPUT
7 UPPER TELESCOPE IN DIGITAL INPUT
8 JIB DOWN DIGITAL INPUT
9 JIB LEFT DIGITAL INPUT
10 TOWER UP DIGITAL INPUT
11 MAIN TOWER TRANSPORT ANGLE OPEN DIGITAL INPUT
12 HOUR METER DIGITAL OUTPUT
13 BCS CALIBRATED LAMP DIGITAL OUTPUT
14 OVERLOAD LAMP DIGITAL OUTPUT
15 SPARE DIGITAL OUTPUT
16 AUXILIARY POWER DIGITAL INPUT
17 BASKET LEVEL UP DIGITAL INPUT
18 BASKET ROTATE RIGHT DIGITAL INPUT
19 JIB UP DIGITAL INPUT
20 JIB RIGHT DIGITAL INPUT
21 TOWER DOWN DIGITAL INPUT
22 MAIN BOOM TRANSPORT ANGLE CLOSED DIGITAL INPUT
23 UPPER LIFT UP DIGITAL INPUT
24 VBAT VBAT OUTPUT
25 VBAT VBAT OUTPUT
26 NO CHARGE LAMP DIGITAL OUTPUT
27 1000# CAPACITY LAMP DIGITAL OUTPUT
28 ENGINE HIGH TEMPERATURE LENGTH DIGITAL OUTPUT
29 ENGINE LOW OIL PRESSURE LAMP DIGITAL OUTPUT
30 UPPER TELESCOPE OUT DIGITAL INPUT
31 GROUND GROUND INPUT
32 SPARE PIN GROUND INPUT
33 UPPER LIFT DOWN DIGITAL INPUT
34 SWING LEFT DIGITAL INPUT
35 SWING RIGHT DIGITAL INPUT
Connector Pin Function Type
J8
(Black)
1 GROUND FROM BATTERY GROUND INPUT
2 GROUND EMS GROUND INPUT
3 GROUND TO PLATFORM GROUND OUTPUT
4 GROUND EMS OUT TO PLATFORM GROUND OUTPUT

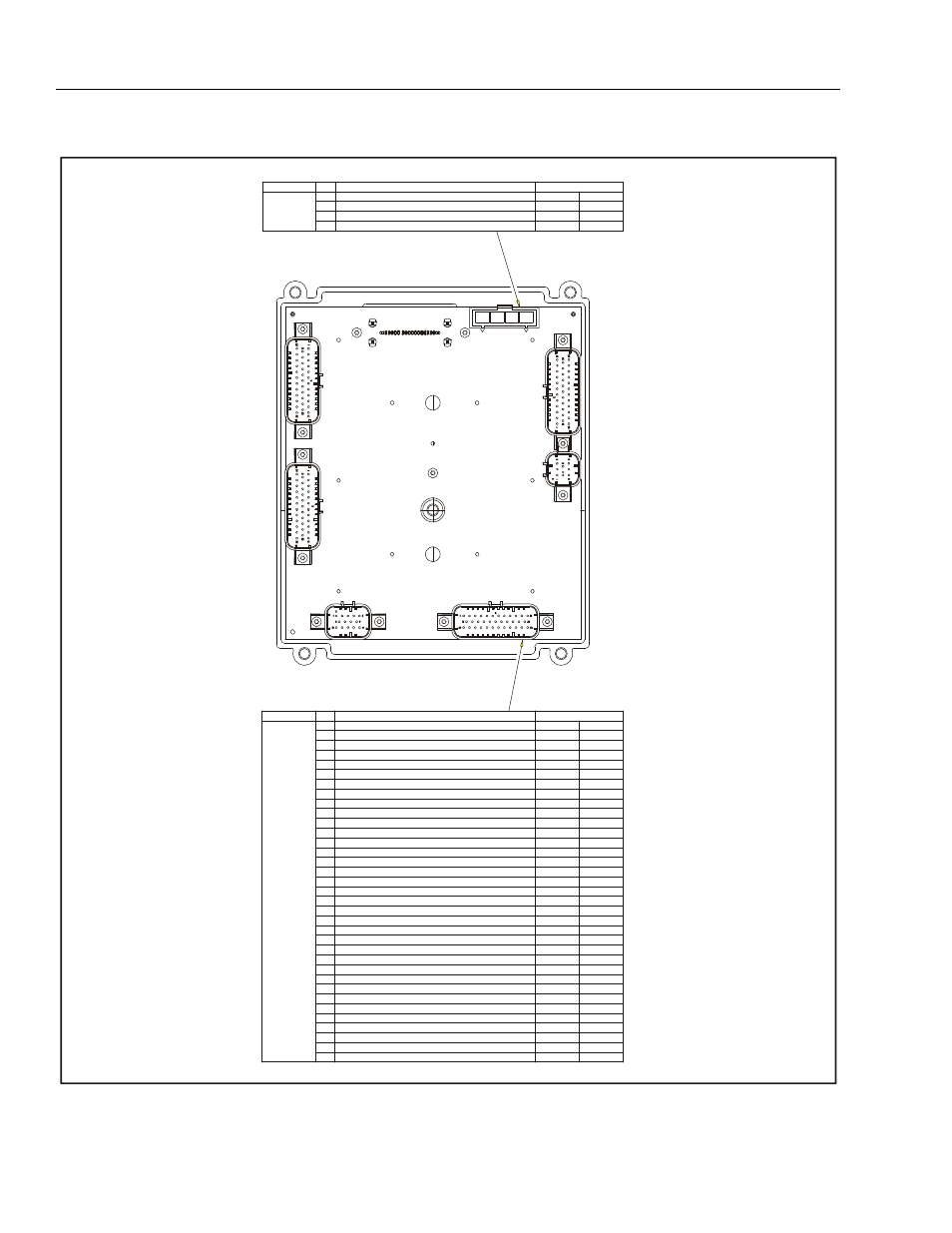

Figure 6-13. Ground Control Module - Sheet 3 of 3
