SECTION 7 - BASIC ELECTRICAL INFORMATION & ELECTRICAL SCHEMATICS
3121619 – JLG Lift – 7-53
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET TO
1 WHT 7-4 RDRV PFWD 18 AWG GXL HV142 (1)
2 WHT 7-3 RDRV PREV 18 AWG GXL HV143 (1)
3 BLK 0-15 18 AWG GXL S146 (1)
4
5 WHT 7-2 LDRV PREV 18 AWG GXL HV144 (1)
6 WHT 7-1 LDRV PFWD 18 AWG GXL HV145 (1)
HV144 - LFT DRV PUMP REV
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET TO
1 WHT 7-2 LDRV PREV 18 AWG GXL X222A (5)
2 BLK 0-15-3 18 AWG GXL S146 (1)
S146
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET TO
1 BLK 0-15 18 AWG GXL X222A (3)
1 BLK 0-15-3 18 AWG GXL HV144 (2)
1 BLK 0-15-4 18 AWG GXL HV145 (2)
2 BLK 0-15-1 18 AWG GXL HV142 (2)
2 BLK 0-15-2 18 AWG GXL HV143 (2)
HV142 - RHT DRV PUMP FWD
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET TO
1 WHT 7-4 RDRV PFWD 18 AWG GXL X222A (1)
2 BLK 0-15-1 18 AWG GXL S146 (2)
HV143 - RHT DRV PUMP REV
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET TO
1 WHT 7-3 RDRV PREV 18 AWG GXL X222A (2)
2 BLK 0-15-2 18 AWG GXL S146 (2)
HV145 - LFT DRV PUMP FWD
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE JACKET TO
1 WHT 7-1 LDRV PFWD 18 AWG GXL X222A (6)
2 BLK 0-15-4 18 AWG GXL S146 (1)
X222A
HV145
LFT DRV PUMP FWD
S146
HV144
LFT DRV PUMP REV
HV142
RHT DRV PUMP FWD
HV143
RHT DRV PUMP REV

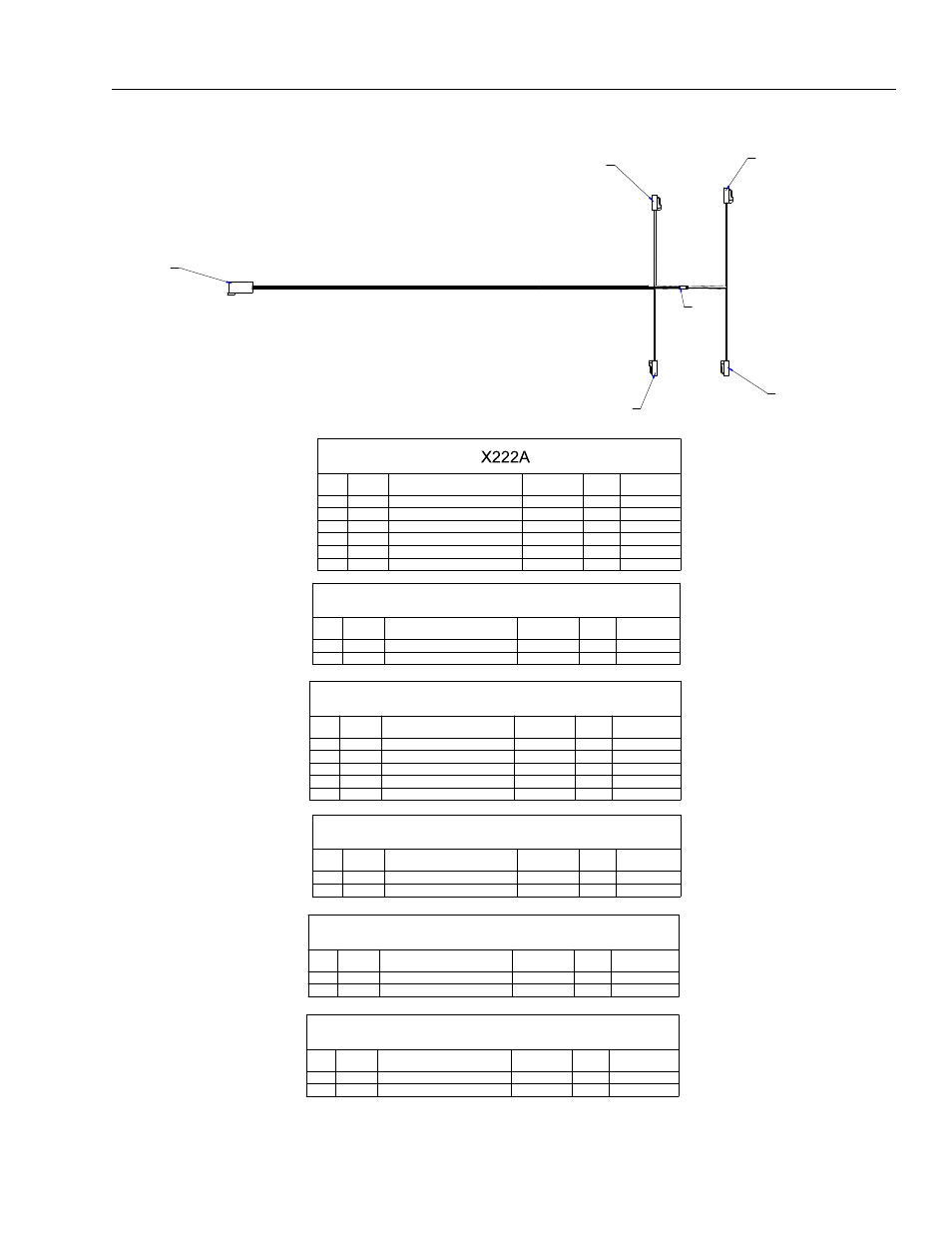

Figure 7-58. Drive Pump Harness
001149970-B
