Galaxy® CO2 Sensor Setup — Instructions
34

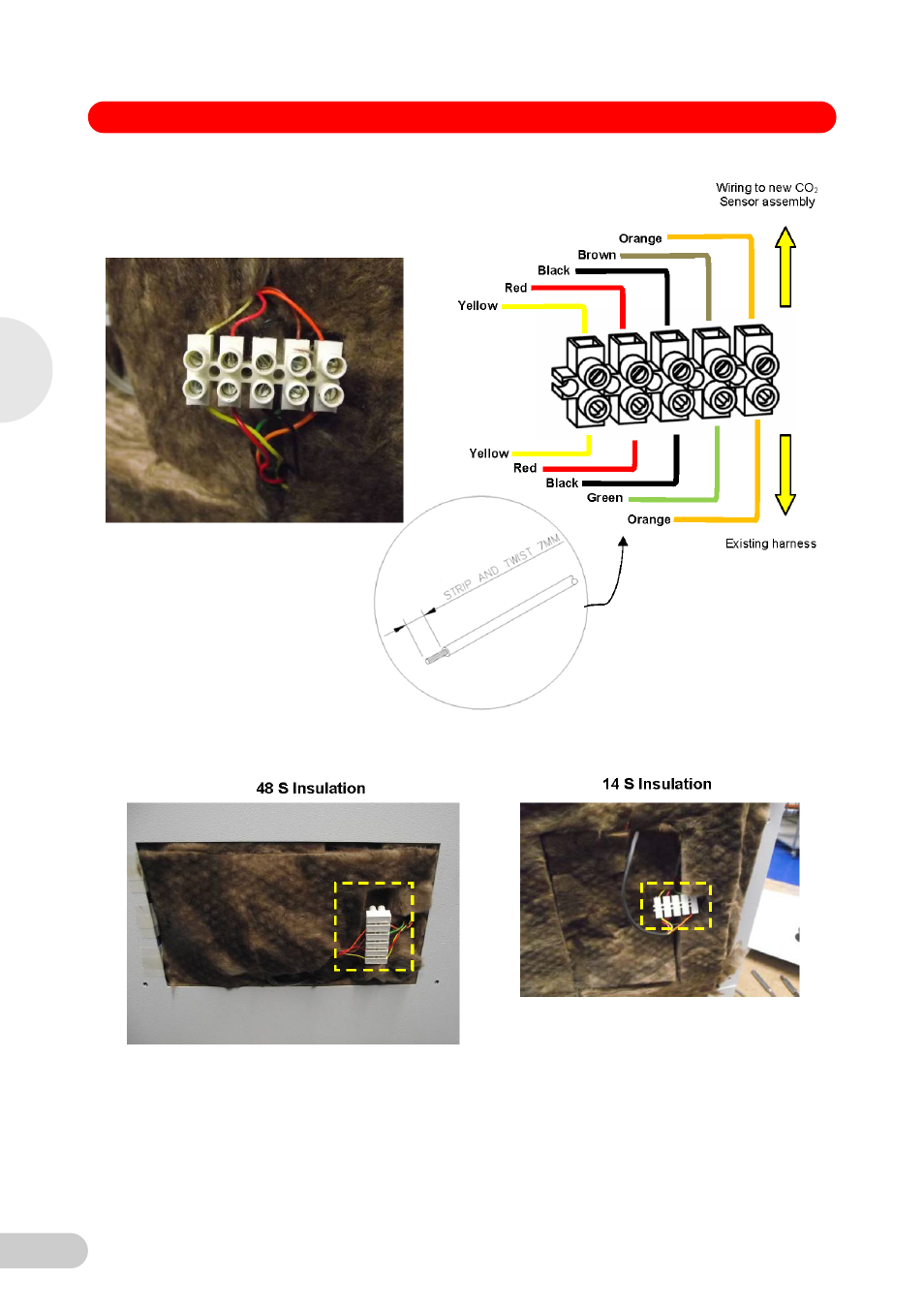

7. Refit the insulation block and trim a small pocket in the insulation to locate the connecting
block (as shown in yellow dashed box in image below).
8. Refit the rear access panel using the 4 x Pozidriv head screws with washers on the 48 S and
6 x Pozidriv head screws with washers for the 14 S (see Fig. on p. 30).
9. Fit the new porous cover supplied to the CO
2
Sensor by sliding it over the brass measuring
body until it touches the back wall of the chamber.
NOTE: It may be difficult to push on so use the palm of the hand to push back.
3
Galaxy 48 S / 14 S 120 V & 230 V CO
2
In
cubators
