Galaxy® CO2 Sensor Setup — Instructions

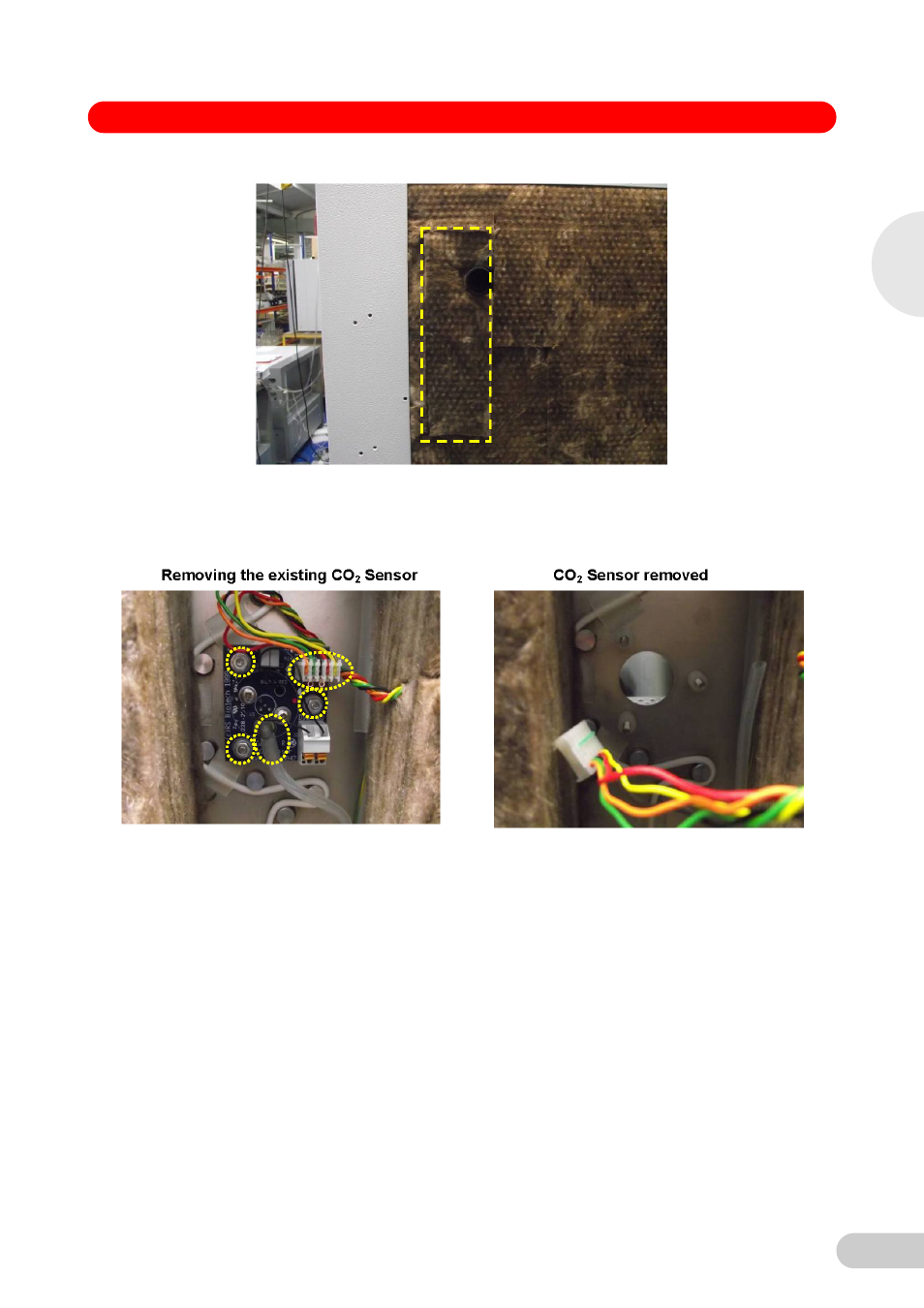

4. Remove the existing CO
2
Sensor by disconnecting the 5 way Molex connector and then
unplug the Auto-Zero port tubing leading from the pump (see dashed yellow circles on image
to the left below). Unscrew the 3 x M3 securing nuts and place to the side for refitting (only
one nylon washer will be reused).
5. Open the rear equipment tray by unscrewing the 2 x large Pozidriv head screws and then
remove the cover plate shown arrowed in image on page 20 by unscrewing the 4 x Pozidriv
head screws. Discard the old plate after removal.
