Galaxy® CO2 Sensor Setup — Instructions

10

10. Replacement Expansion PCB fitting:

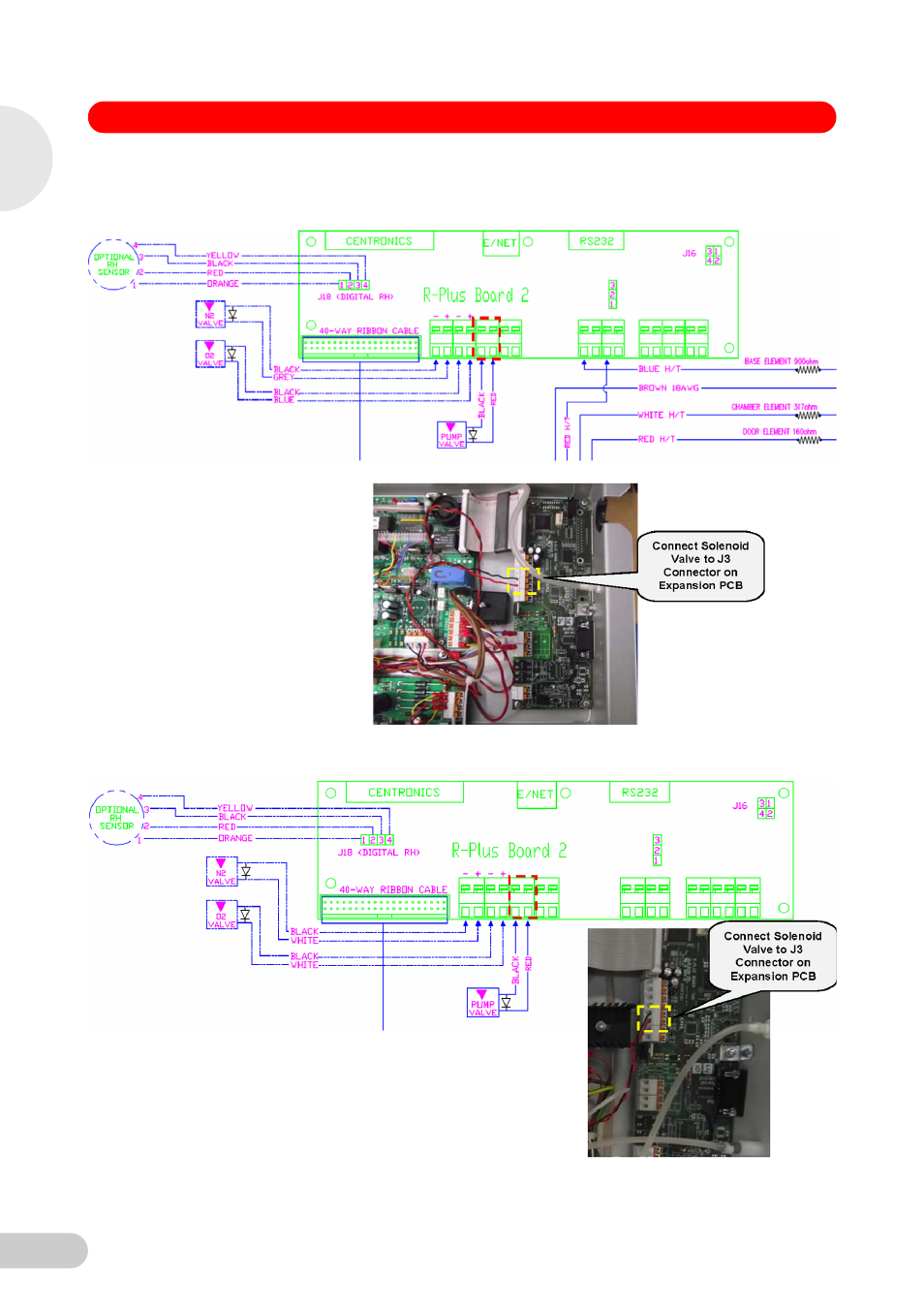

170 R - Refitting is a reversal of removal. Follow the wiring diagram and image below.

48 R - Refitting is a reversal of removal. Follow the wiring diagram and image below.

1

Galaxy 170 R / 48 R 120 V / 230 V CO

2

Inc

ubators
