Galaxy® CO2 Sensor Setup — Instructions

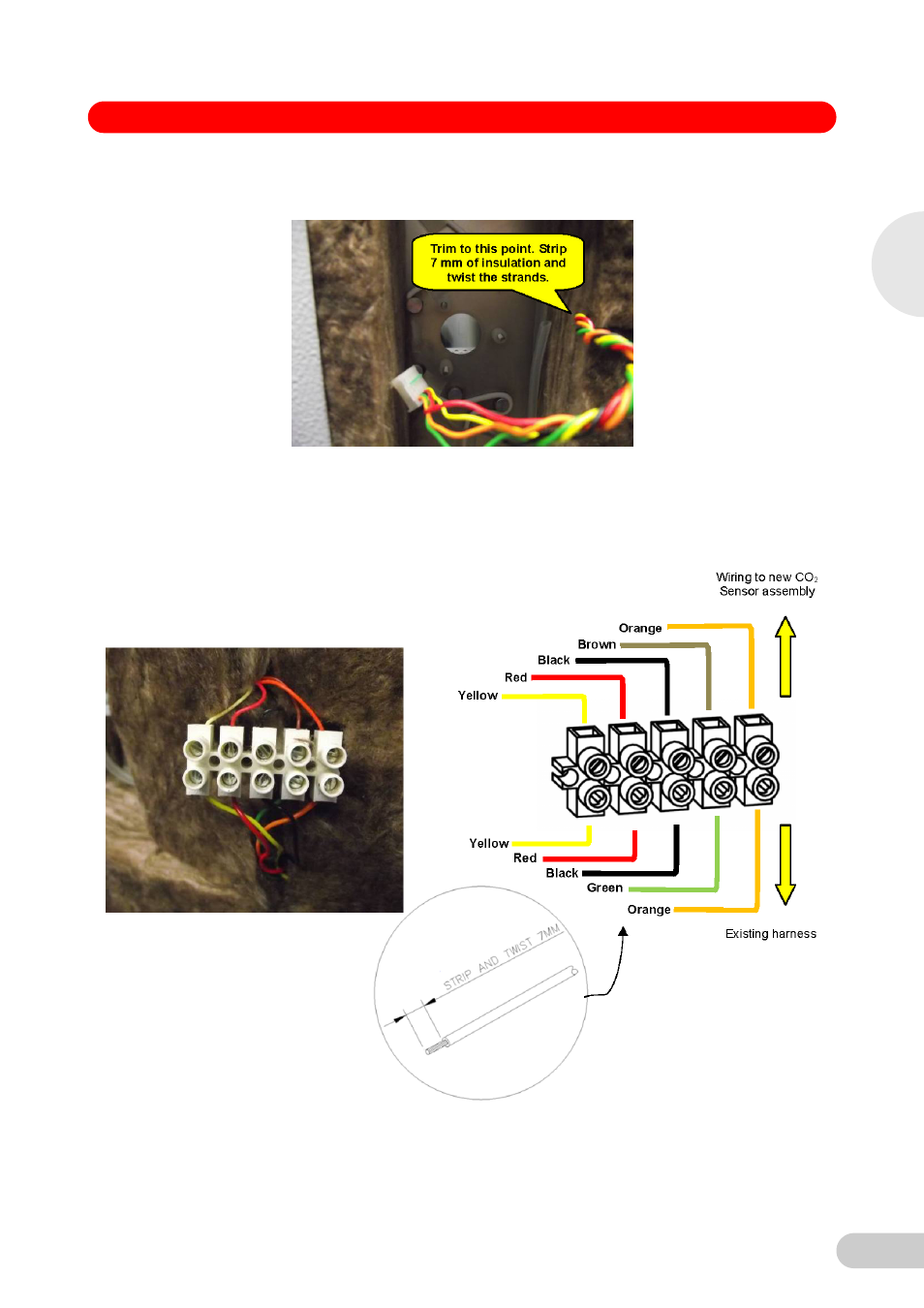

21. Cut the old Pump tubing in line with the glass fibre insulation and also trim the CO
2
Sensor
wiring harness to this point then strip and twist 7 mm from the end.
22. Connect the existing wiring harness to the CO
2
Sensor connecting block (as shown in left and
right-hand images below). Ensure you have stripped 7 mm of insulation from the existing
harness wires and twisted the strands before connecting them.
NOTE: Green on the existing harness connects to Brown on the new CO
2
Sensor assembly
harness.
