Galaxy® CO2 Sensor Setup — Instructions

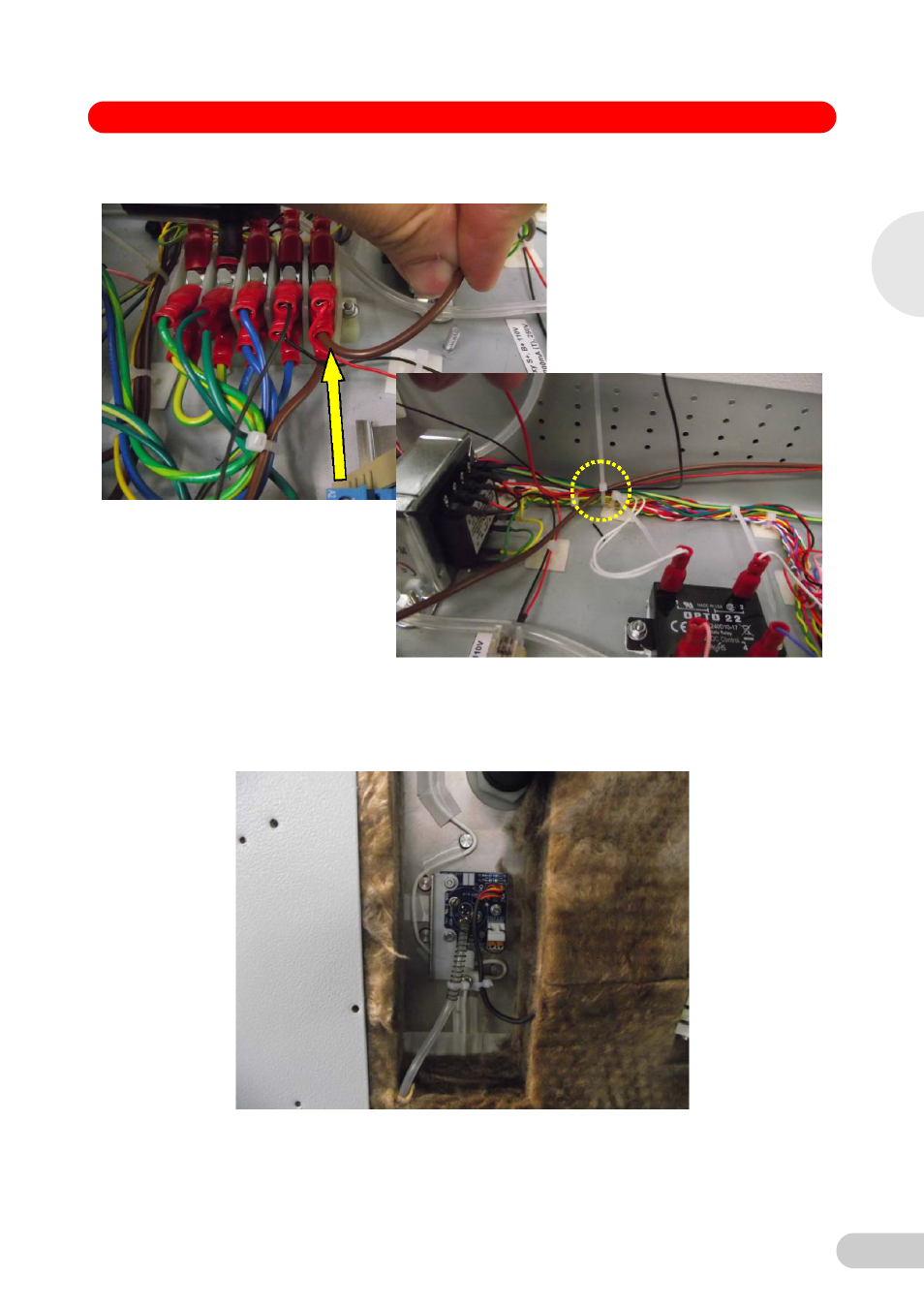

17. Cable zip tie all wires in place to secure to tray.
18. Unpack the new CO
2
Sensor and fix in place with the bracket supplied and the original nuts
and washers and new spring washers but only reuse one of the original nylon washers in the
location shown in the image below. Fit a spring washer then M3 Washer with M3 Nut to each
of the studs through the bracket, reuse the Nylon washer with M3 Washer and Nut on the
other stud. Tighten the M3 fixing nuts to the recommended 0.4FT/LBS (Foot-Pounds).
2
Galax
y 170 S 230 V / 120 V CO
2
Incuba
to
rs
