Galaxy® CO2 Sensor Setup — Instructions
16. 48 R CO
2

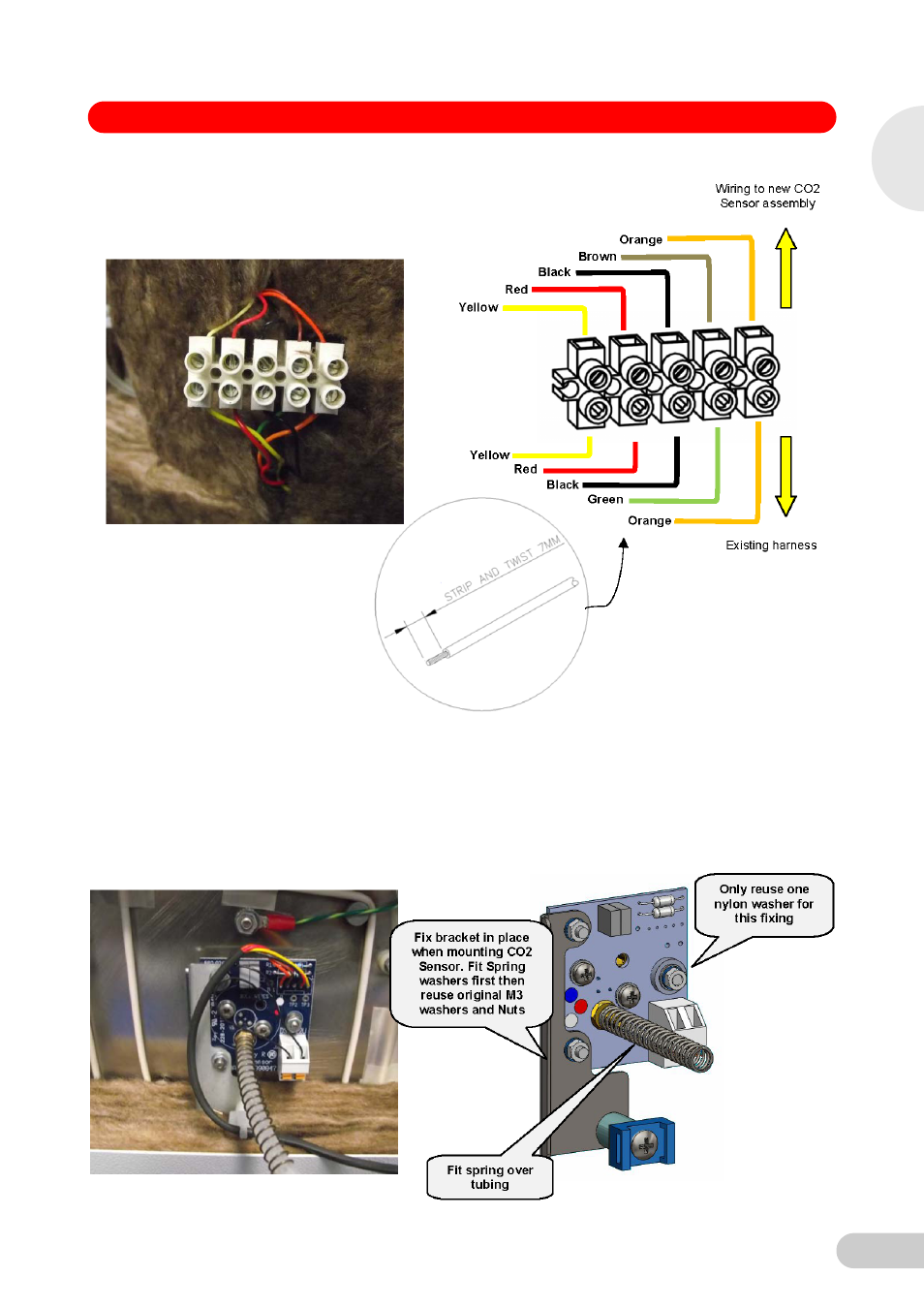

Sensor fitting:
NOTE for 48 R: The replacement CO
2
Sensor has tubing pre fitted for the 170 R. Remove
this tubing with spring and use the existing tubing already fitted to the Incubator. Unpack the
new CO
2
Sensor and fix in place with the bracket supplied and the original nuts and washers
and new spring washers but only reuse one of the original nylon washers in the location
shown in the image below. Refit the spring over the existing tubing. Fit the spring washers
Tighten the M3 fixing nuts to 0.4 Nm (Newton Meters).
1
Galaxy 170 R / 48 R 120 V / 230 V CO
2
Incubators
