15
Galaxy® CO2 Sensor Setup — Instructions

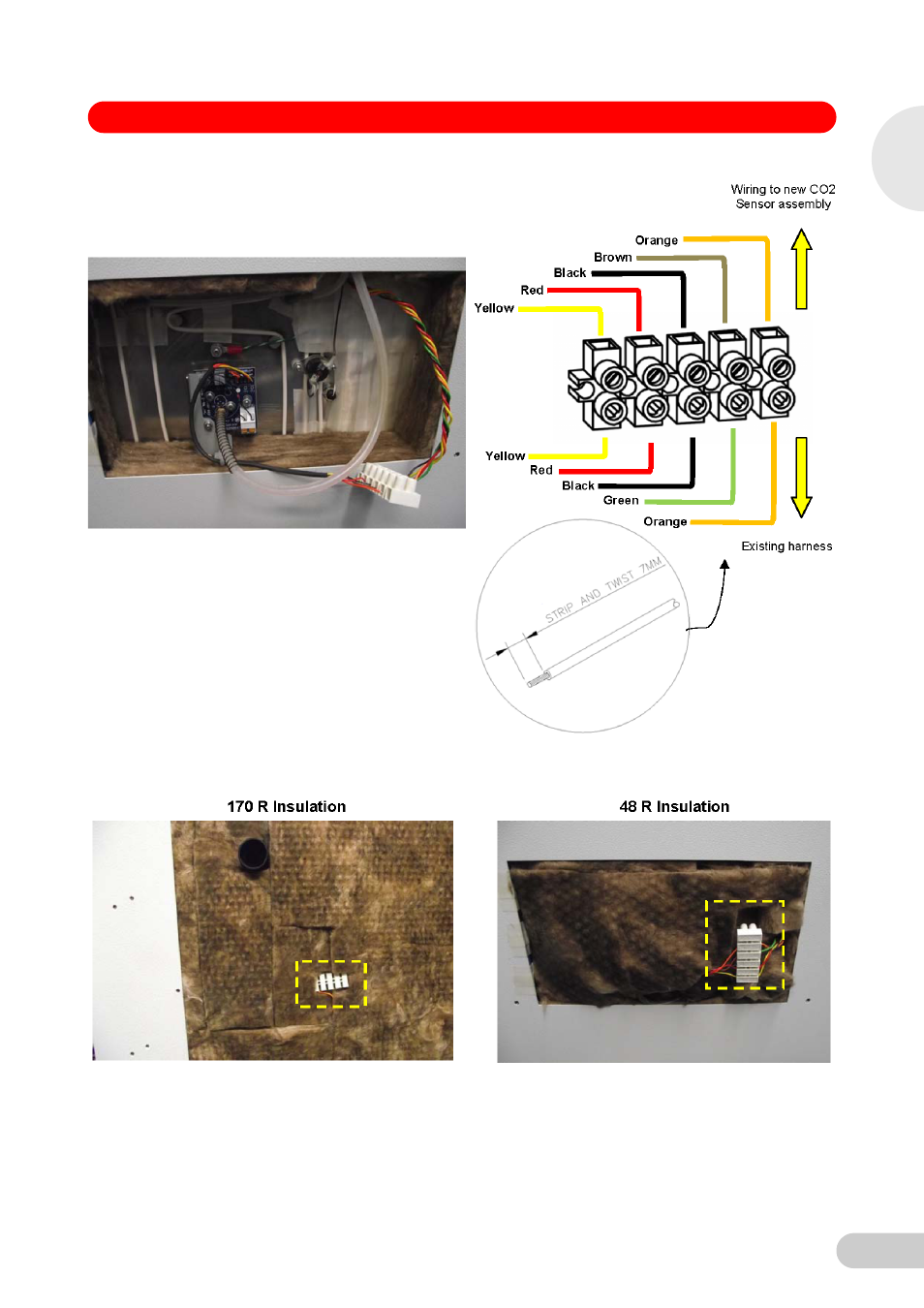

19. Refit the insulation block and trim a small pocket in the insulation to locate the connecting
block (as shown in yellow dashed box in image below).
20. Refit the rear access panel using the 8 x Pozidriv head screws with washers and refit the
Access Port Plug for the 170 R and the 4 x Pozidriv head screws with washers on the 48 R
(see drawings on Page 4).
21. Fit the new porous cover supplied to the CO
2
Sensor by sliding it over the brass measuring
body until it touches the back wall of the chamber.
NOTE: It may be difficult to push on so use the palm of the hand to push back.
1
Galaxy 170 R / 48 R 120 V / 230 V CO
2
Incubators
