Galaxy® CO2 Sensor Setup — Instructions

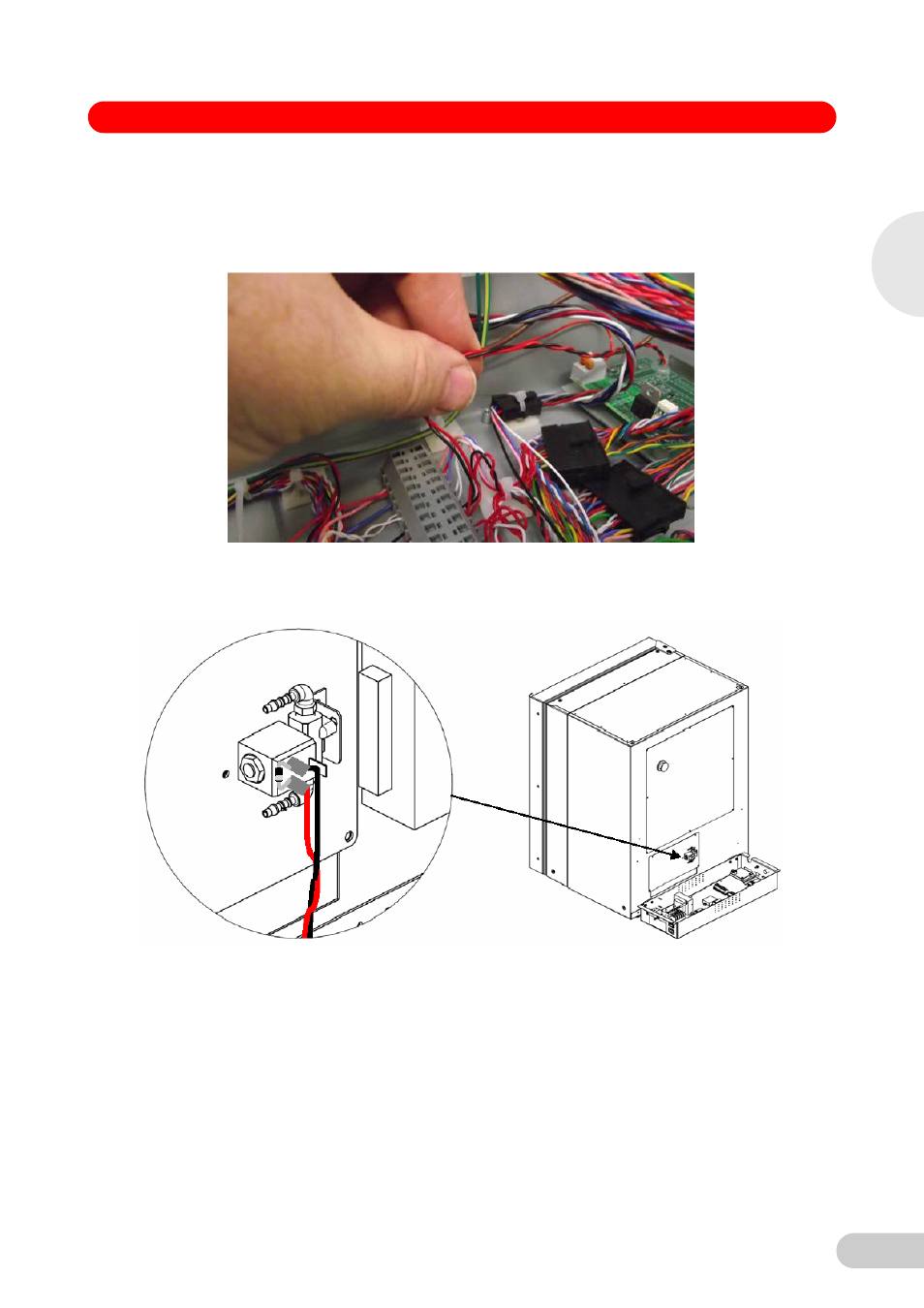

12. Route the Red/Black wires from the PCB to the Auto-Zero Pump connections on the WAGO
connecting block. Use the small flat bladed screwdriver to insert the wires into the right-hand
side of the WAGO connector block making a piggyback connection where the existing Red/
Black wires are connected. Take care when inserting the wires that the existing wires still
have a good connection and most importantly ensure correct orientation of the wires.
13. Mount the Solenoid Valve to the new cover plate using the fixings supplied and fit the new
cover plate in the position shown in the image below using the 4 x Pozidriv head screws
which were kept aside earlier. The tubing will be connected when fitting the new CO
2
Sensor.
