Biological Shakers Innova® 44/44R — Operating manual
3. Pull both side levers (see Fig. 35 on p. 51) down. This will disengage the platform from the
subplatform.
4. Pull both handles on the slide-out mechanism (see Fig. 35 on p. 51) toward you. This will
move the platform to an easily accessible position.

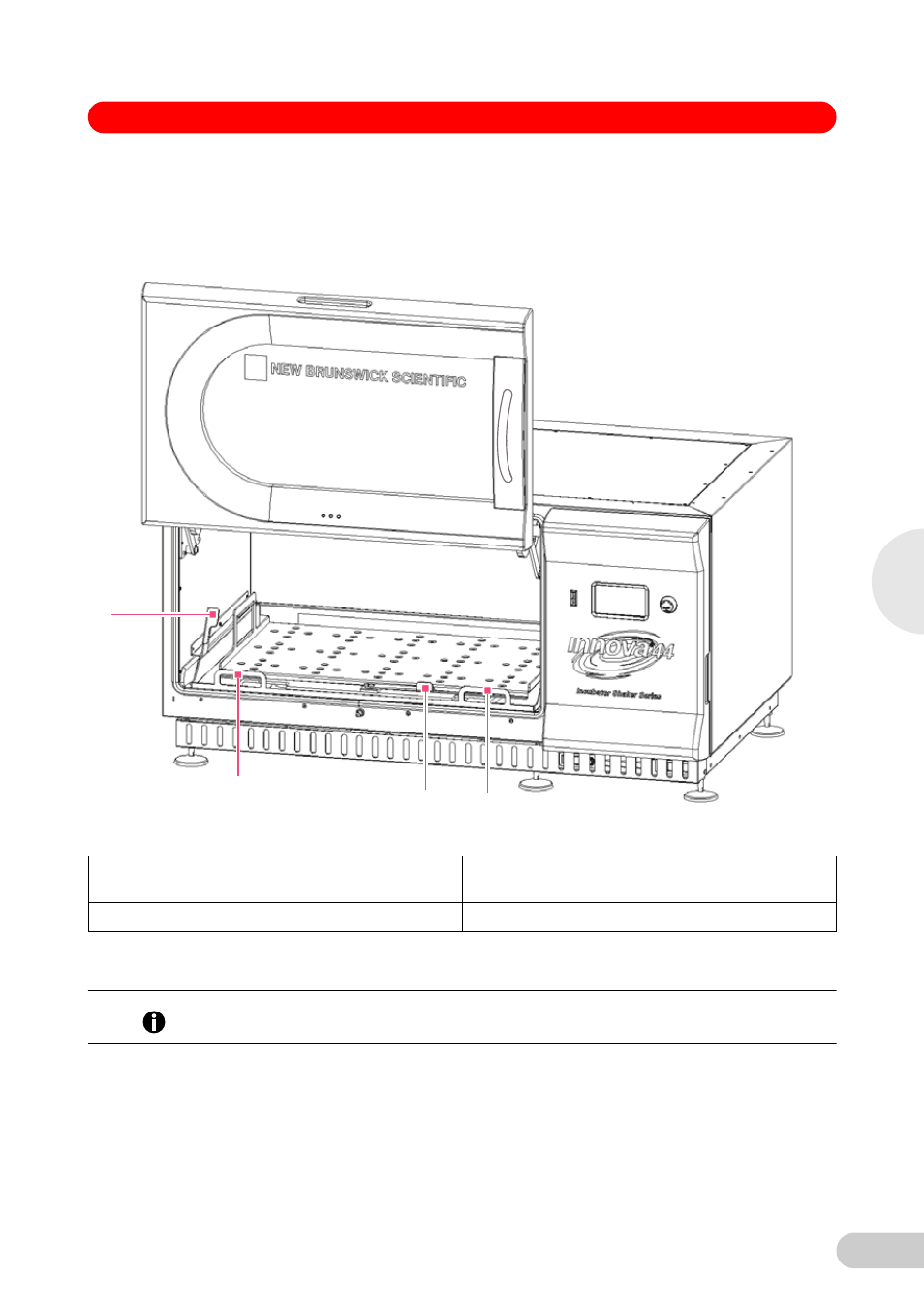

Abb. 35: Disengaging Slide-Out Platform
Fig. 35: Disengaging Slide-Out Platform
5. To re-insert the platform, reverse this process. Make sure the two slots in the back of the
platform are inserted under blocks of subplatform in the back.
1 Rotate subplatform cam lever 180 ° clockwise
(toward you), until it points to the left.
2 Pull both side levers down (toward you)
simultaneously.
3 Pull both slide-out tray handles toward you.
1
2
3
3
Hint!
Make sure that you have rotated the front cam lever counter-clockwise to lock the platform in
position.
