17
Biological Shakers Innova® 44/44R — Operating manual
6 Installation
6 Installation
6.1 Tools required for installation
To install the Innova 44/44R on an optional base and/or to stack Innova 44/44R units, the
following tools will be needed:
• Number 2 Phillips head screwdriver
• Blade screwdriver
• 3 mm (1/8 in) Allen key
• 3/8 in Allen key (provided)
• Level, >25.4 cm (10 in)
• Two adjustable wrenches or 7/16 in socket wrench
• Forklift or other lifting equipment able to lift more than 259 kg (570 lb)
• Metal leveling shims (provided in stacking kit)
• Optional: set of screw-in lifting handles, for small lifts of short duration (adding leveling shims,
for example) or for minor location adjustments
• Optional: stacking kit(s)
6.2 Install the front grille
1. Remove and discard the plastic retaining clip that holds the drain hose in place for shipping.
2. Temporarily remove the thumbscrews (with their washers) installed at the bottom of each side
panel, in the corner closest to the front of the shaker.
3. Hold the front grille in place (see Fig. 4 on p. 17) and reinstall the thumbscrews (and
washers).

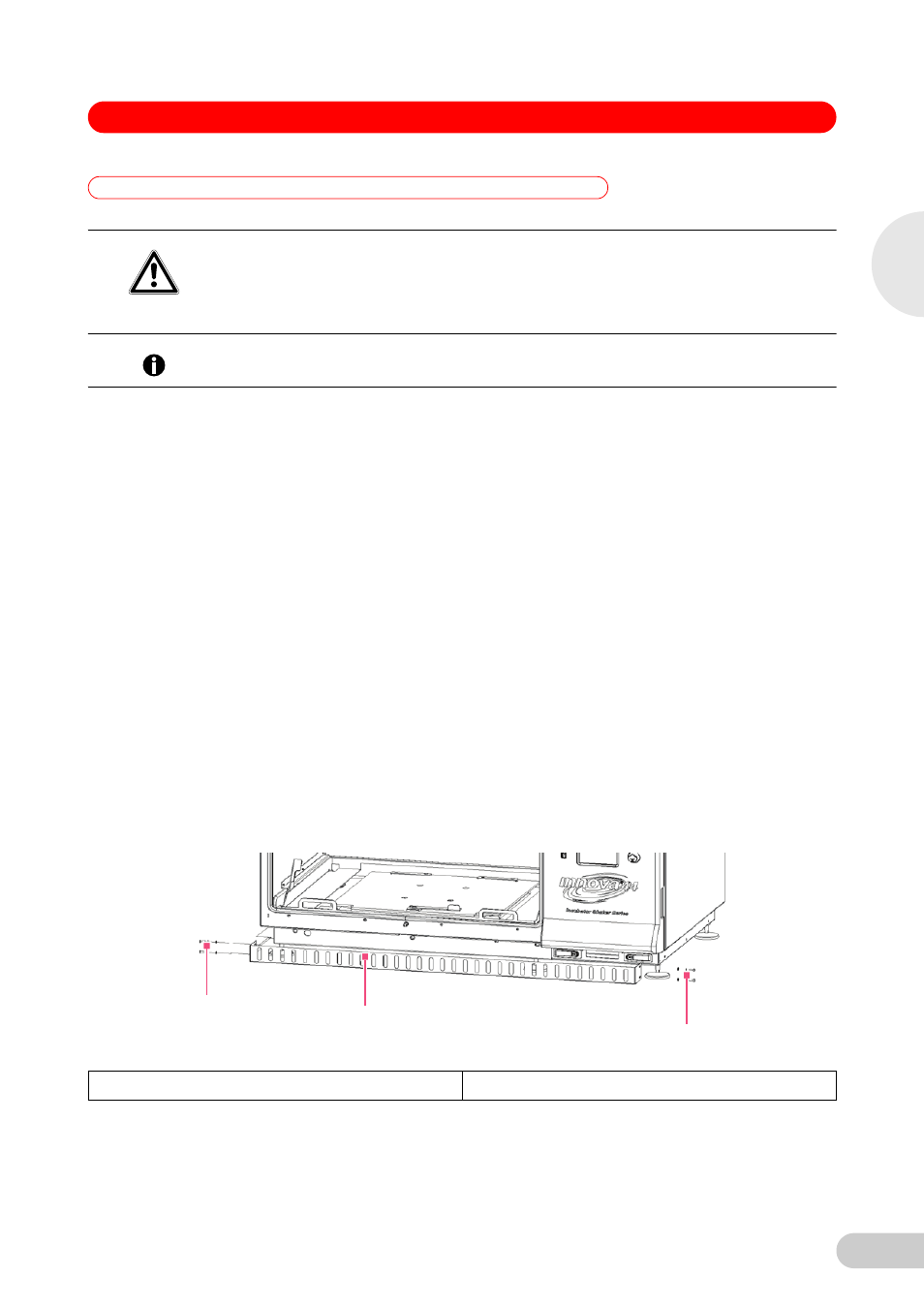

Abb. 4: Install the Front Grille
Fig. 4: Install the Front Grille
6.3 Level a single shaker
These instructions are for a single shaker without an added base.
Make sure that the shaker is placed on a level surface and that all four feet are solidly on the
surface. If the shaker is not level, adjust the feet as needed to achieve leveling:
WARNING!
Risk of crushing due to missing auxiliary aid
 Lifting and transporting the shaker without suitable technical aids can result in crushing and
other injuries.
 Use a hydraulic lifting platform to install and uninstall the shaker.
Hint!
Feet are used on the shaker ONLY when a single unit is operated without a base. At all other
times (with two or three shakers stacked, or when a base is added), all feet must be removed.
1 Front Grille 2 Thumbscrews and Washers
1
2
2
6
Installation
