Biological Shakers Innova® 44/44R — Operating manual
34
4. Place the second girdle around the upper portion of clamp body (just as the first girdle was
initially). Make sure that its spring sections rest against the clamp legs, while its rubber tubing
sections sit against the flask, in between the clamp legs.

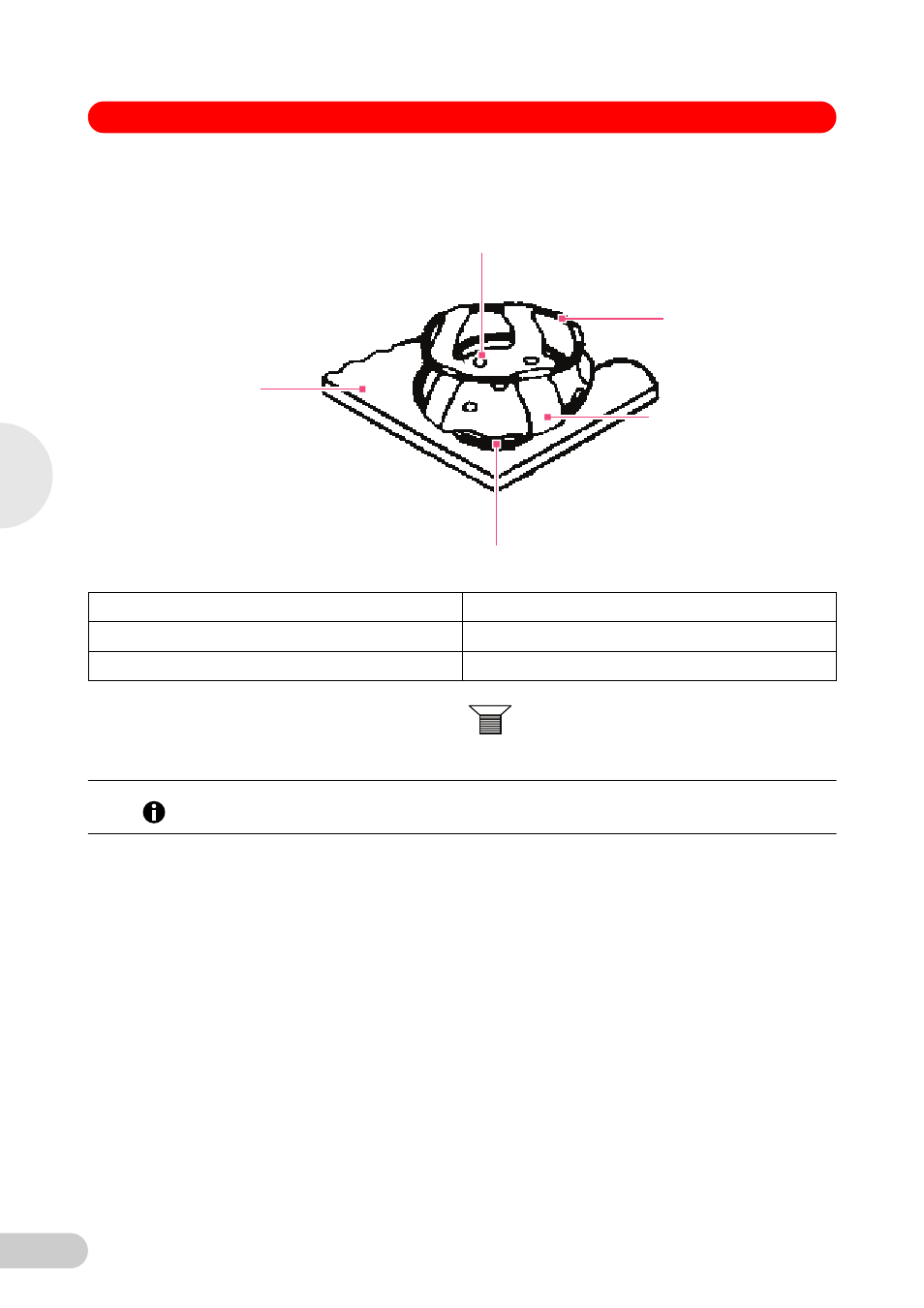

Abb. 16: Double Girdle Clamp Installation
Fig. 16: Double Girdle Clamp Installation
Abb. 17: Clamp Fastener
Fig. 17: Clamp Fastener
8.4 Electrical connections
Before making electrical connections, verify that the power source voltage matches the voltage
on the electrical specification plate and that the ON/OFF switch is in the OFF position. The
electrical specification plate is located on the rear panel of the unit near the power connector.
Connect the power cord to the power connector, then connect the other end to a suitable,
grounded receptacle. Make sure there is enough clearance to disconnect the plug whenever
necessary.
1 Upper Girdle with Girdle Tubes 2 Clamp Body (Legs and Base)
3 Lower Girdle with Girdle Tubes 4 Platform
5 Clamp Mounting Holes (5)
1
2
3
4
5
Hint!
The upper girdle secures the flask within the clamp, and the bottom girdle keeps the flask from
spinning.
