Biological Shakers Innova® 44/44R — Operating manual
22

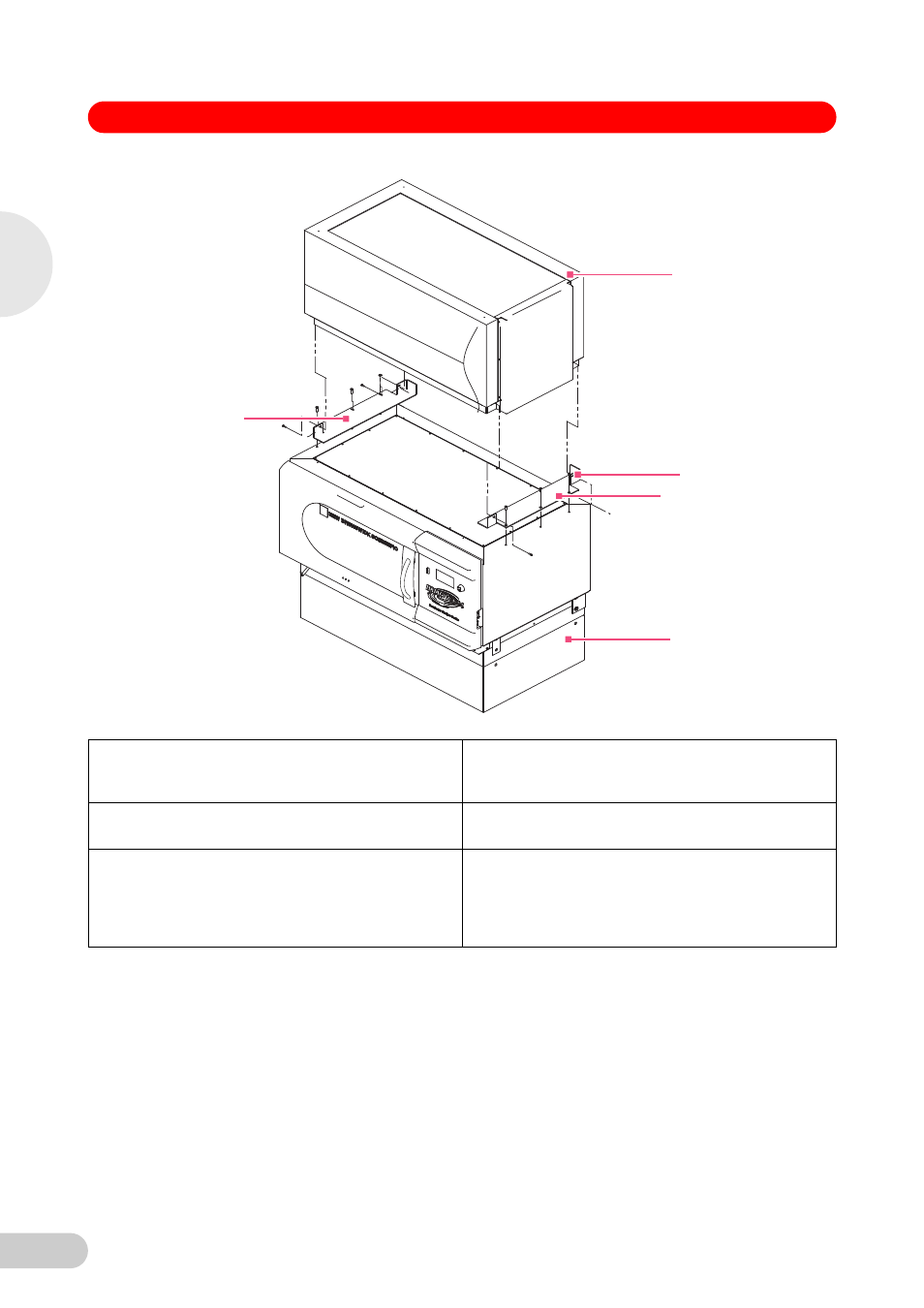

Abb. 9: Install 4400/4430 to 44/44R Stacking Kit
Fig. 9: Install 4400/4430 to 44/44R Stacking Kit
4. Use the countersunk flathead screws provided, with two drops of Loctite on their threads, to
attach the righthand (facing the door) mounting bracket to the top of the unit installed on the
base. Secure the bracket in place.
5. Use the other screws and washers provided to attach the lefthand mounting bracket to the top
of the unit installed on the base. Loosely tighten these screws, to allow some play.
6.7 Stack two Innova 44/44R shakers
1. Using a forklift or lifter, raise the Innova 44/44R to be stacked so that its back end is tilted
toward the rear of the mounting brackets.
2. Remove the feet from the unit. They will not be needed for stacking, but you may want to keep
them for future use.
1 Innova 4400/4430 2 Install right bracket with three 1/4 – 20 x 3/4 in
flathead socket screws, with two drops of Loctite
on the threads.
3 Remove screws before installing mounting
bracket.
4 Optional Base
5 Install left bracket with two sets of 10 – 32 x 1/2 in
screws, lockwashers and washers and three sets
of 1/4 – 20 x 3/4 in screws, lockwashers and
washers. Allow some play until top unit is secure
against right bracket, then tighten.
1
2
3
4
5
6
Installation
