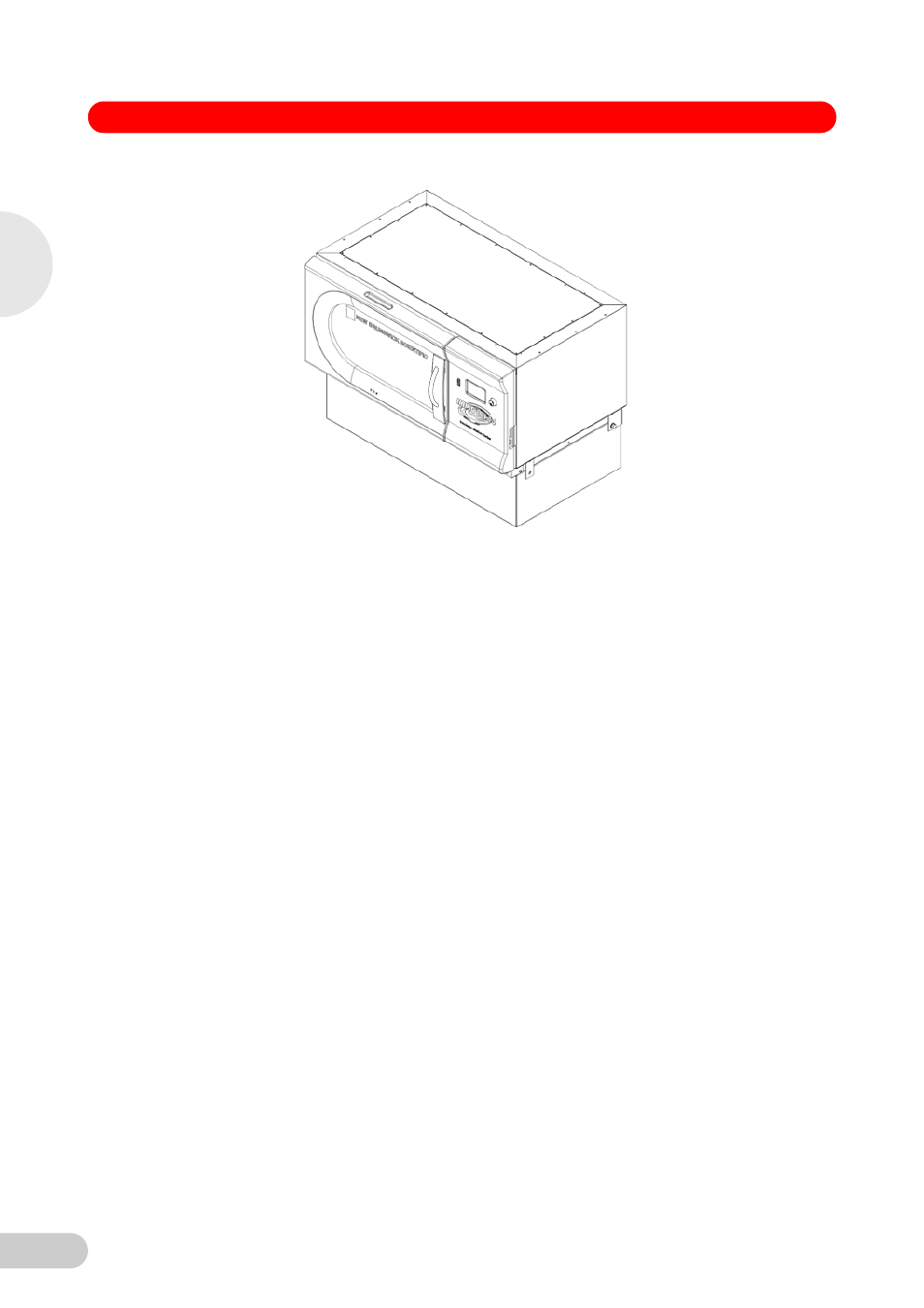

Abb. 7: Shaker Installed on Base
Fig. 7: Shaker Installed on Base
10. Make sure the shaker is level; add metal shims under the base as needed to level the unit.
Shims are provided with the stacking kit.
11. After installing a platform (see Getting started on p. 32), fully load the shaker and do a test run
at normal speed (see Start the shaker on p. 37). Make additional leveling adjustments if
necessary.
6.6 Install the stacking kit
To stack two Innova 44/44R shakers, (see For two 44/44R shakers on p. 20). To stack an Innova
4400/4300 on an Innova 44/44R, (see For an Innova 4400/4430 on an Innova 44/44R on p. 21).
6.6.1 For two 44/44R shakers
1. Remove all feet from the units (put them aside for possible future use).
2. If you do not plan to use an optional base, skip to Step 3. If you are using one, level the base
(see Level the optional base on p. 18), then mount the bottom unit on the base (see Mount
Innova 44/44R on optional base on p. 18). If you are stacking three units, use a 4 in base.
3. With reference to the figure below (see Fig. 8 on p. 21), remove the set screws from the top of
the bottom unit, on the two side edges, and remove the set screws (from the sides of the unit
to be stacked) that correspond to the mounting brackets.
6
