Biological Shakers Innova® 44/44R — Operating manual
3 Product description
3 Product description
3.1 Main illustration

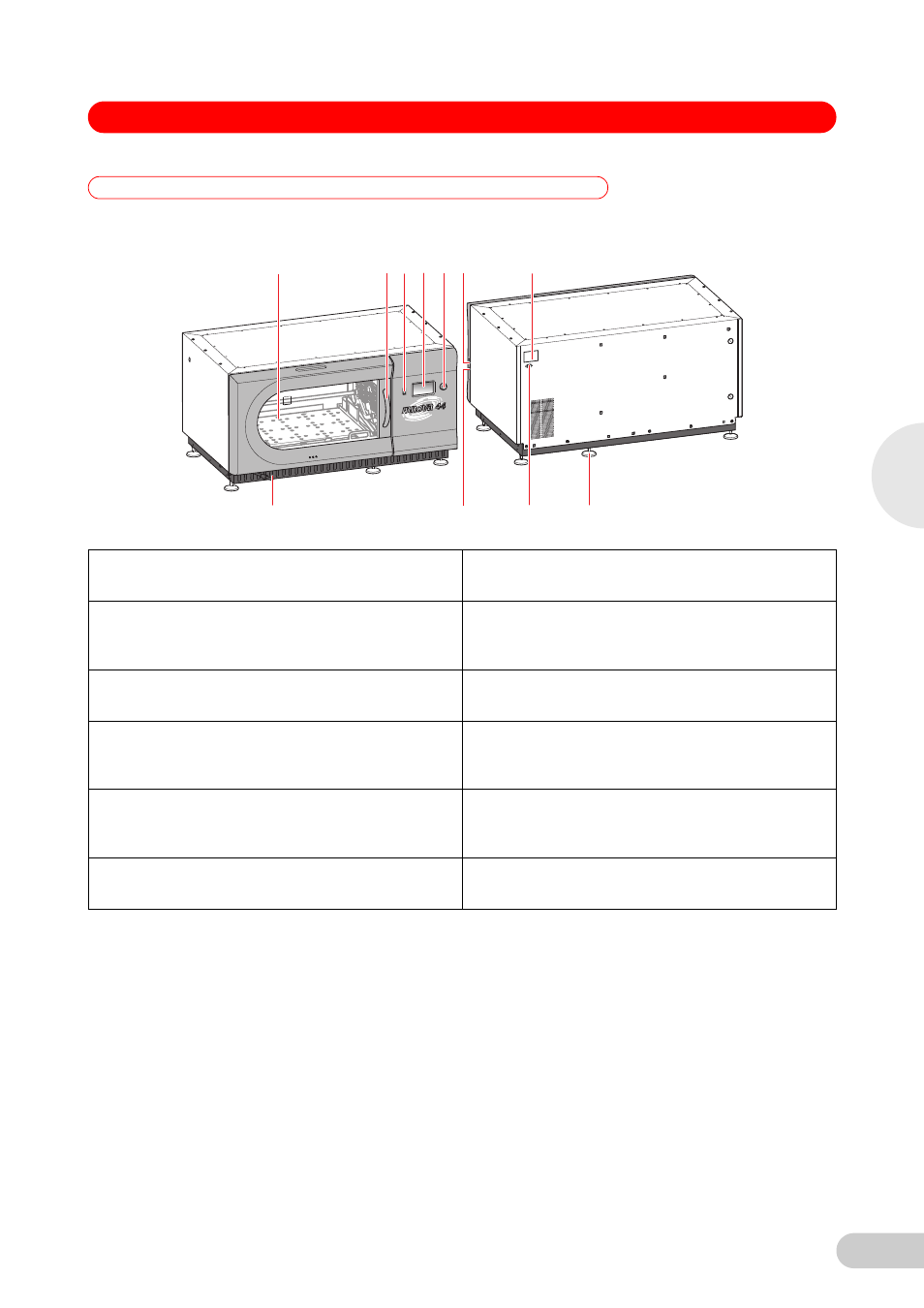

Abb. 1: Front and rear view of the Innova 44/44R
Fig. 1: Front and rear view of the Innova 44/44R
1 Door
With automatic stop function
2 Door handle
3 Start/Stop switch
Start or stop drive
4 Display
Graphical user interface with display of parameters
and parameter values
5 Push button control knob
Set or change the parameters or Start or stop drive
6 Mains power switch
Switch device on or off
7 Name plate
Model number, documentation number, serial number
and electrical connection data
8 Base stand
Align the device horizontally.
9 Mains power connection
Connect the power cable
10 RS-232 interface
Read out parameter values and control operational
functions using computer applications
11 Discharge hose
Discharge hose with clamp
