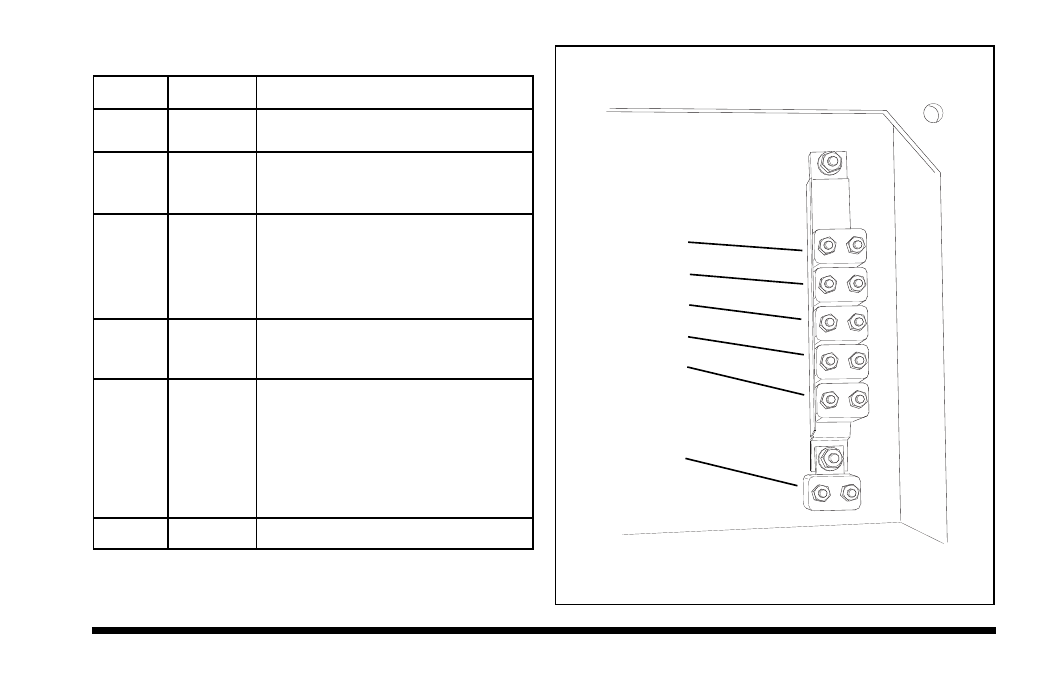

Figure 55
5
1
2
3
4
6
OA0483
The following circuit breakers are used (Figure 55):
Index Size Circuit Protected
1 6 amp Steering Select Switch and Valve
2 10 amp Horn and Back-up Alarm
(Optional - Cab Heater Fan)
3 6 amp Instrument Panel, Emergency
Brake Solenoid Switch
(Optional - Electric Joystick
and TLC System Feed)
4 40 amp Ignition Switch Feed for entire
Electrical System
5 6 amp Enclosed Cab Windshield
Washer/Wiper Switch and
Circulation Fan
(Optional - This breaker will
not be found on vehicles with
an open cab)
6 20 amp (Optional - Lighting Package)
FOR VEHICLES WITH CIRCUIT BREAKERS ONLY
