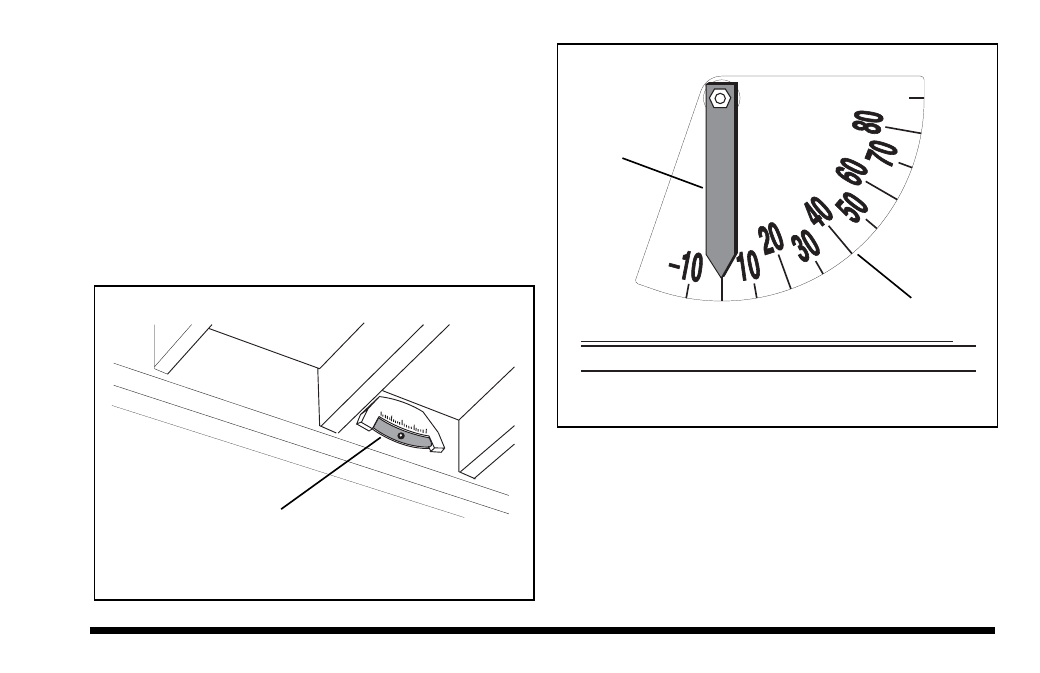

Boom Angle Indicator (See Figure 8)
The boom angle indicator is a plumb arrow with angular
graduations from minus 10°
to plus 80°. It is located on
the left side of the boom and is visible from the
operator’s position. Use this indicator to determine the
boom angle when reading the capacity chart (see
"Using The Capacity Chart").
Figure 8 OH0301
SCALE
PLUMB
ARROW
0 °
FRAME LEVEL
INDICATOR
Figure 7
OA0092
Frame Level Indicator (See Figure 7)
The indicator is mounted on the top inside of the Opera-
tor's Protective Structure (cab). This is a bubble type
indicator which allows the operator to tell if the vehicle
has been positioned in a level condition. Always frame
tilt the vehicle either right or left until the indicator reads
zero degrees (0°). If zero cannot be achieved, then
reposition the vehicle until it is level before placing the
load.
NOTE: Maximum frame tilt is 10° in either direction.
