Range Select Lever (See Figure 2)
The range select lever has three positions to select the
gear range:
1 = Low .............. all the way down
2 = Medium ........ center position
3 = High .............. all the way up
Use first gear for highest torque and pulling power. Use
third gear for highest ground speed.
Boom Control Lever (See Figure 3)
The boom control lever is a joystick with variable motion
from the center to control the boom functions:
Boom Raise ....... move lever backward
Boom Lower ....... move lever forward
Boom Extend ..... move lever to the right
Boom Retract ..... move lever to the left
OH0170
0H0360

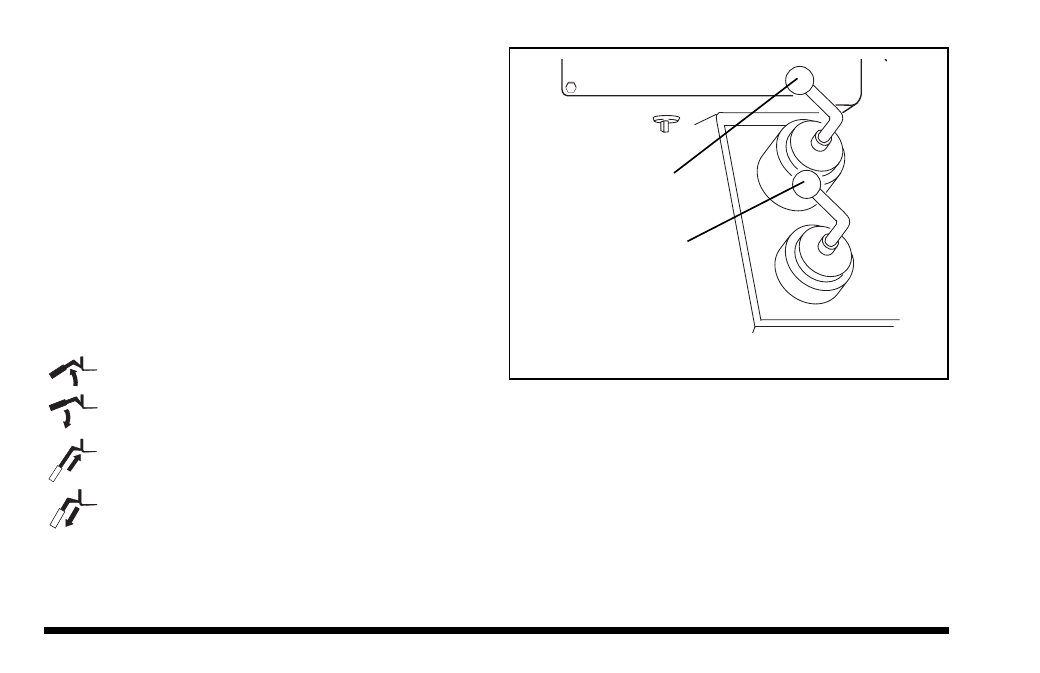

BOOM CONTROL
LEVER
Figure 3
Two boom functions can be accomplished at the same
time by moving the lever into the proper quadrant. For
example: moving the lever forward and to the left will
lower and retract the boom simultaneously.
The speed of boom movement depends on the amount
of lever movement in the corresponding direction. The
overall speed of movement depends directly upon the
speed of the engine.
ATTACHMENT AND
FRAME TILT
CONTROL
LEVER
