6036/6036T
3000 x 24
3000 x 24
24”
610 mm

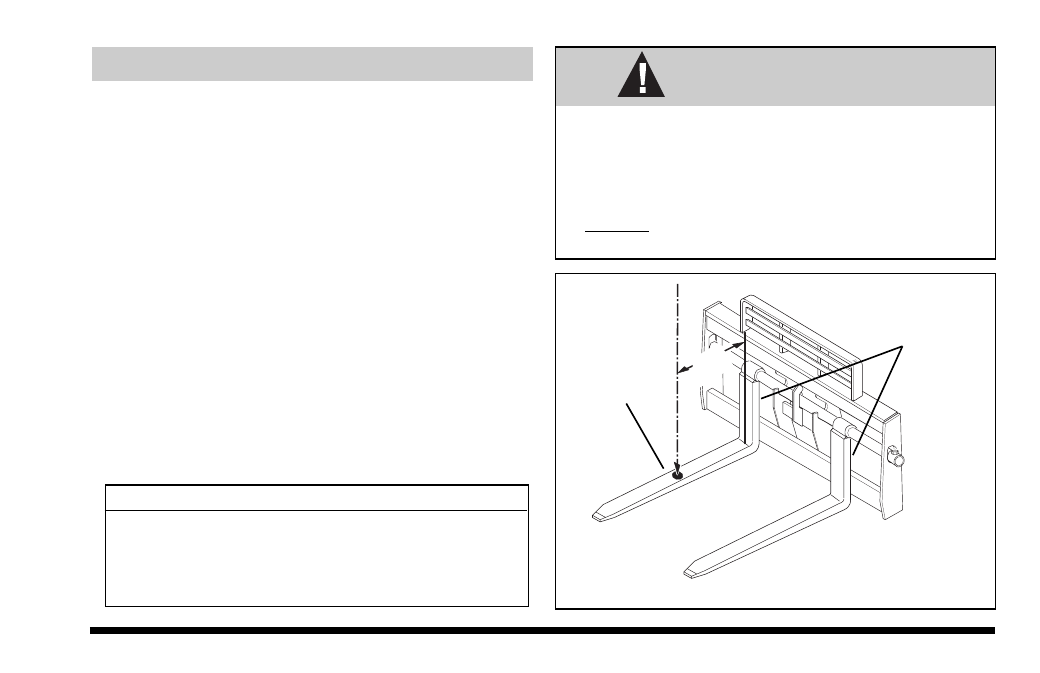

Figure 19 OA1061
MAXIMUM
LOAD
CENTER
Warning
DO NOT exceed the total rated load capacity of
the specific type fork being used. Forks can break
causing loss of load and possible death or serious
injury to the operator or other personnel in the
area. If the total rated load capacity of the forks
exceeds the capacity of the vehicle, the vehicle
capacity governs.
24 INCH LOAD CENTER 610 MM LOAD CENTER
1900 lbs. ............................................. 860 kg
3000 lbs. ............................................. 1360 kg
4000 lbs. ............................................. 1810 kg
5000 lbs. ............................................. 2270 kg
INDIVIDUAL FORK RATING EQUIVALENTS
LOCATION
STAMPED FORK
RATING
Fork Ratings
All forks that can be used on this vehicle are marked
with a maximum load capacity rating. This rating can
be found stamped on the left edge of the fork just below
the fork pivot shaft (Figure 19). This rating is listed in
U.S. pounds and based upon a 24" (610 mm) load
center. For metric equivalents see table below.
This rating specifies the maximum load capacity that the
individual fork can safely carry at a maximum load
center of 24" (610 mm) (Figure 19). Since forks are
always used in multiples, the total load rating of any
combination of forks will be the sum of their rated
capacities.
The maximum load capacity for this vehicle is 6000 lbs
(2720 Kg). Forks used on this vehicle should have total
load ratings which equal or exceed 6000 lbs (2720 Kg).
When the load rating of the vehicle differs from the load
capacity rating of the forks, the lower value becomes
the overall load capacity. See "WARNING" this page.
