Attachment and Frame Tilt Control Lever
(See Figure 3)
The attachment and frame tilt control is a joystick with
four perpendicular motions from the center to control
two attachment functions and two frame tilt functions:
Circulation Fan (Enclosed Cab Only)
(Not Pictured)
The circulation fan is only operable when the ignition
switch in is the RUN position. The fan switch is located
at the base of the fan mount.
Rear Window Control (Enclosed Cab Only)
(See Figure 4)
Loosen the knob and slide the pivot arm in the slot to
open the rear window. Tighten the knob to secure.
Reverse the procedure to close the window.
NOTE: The rear window can be used as an emergency
exit if necessary. Unscrew the knob from the stud, raise
the pivot arm over the stud, and push the window out.
Horn Button (See Figure 2)
Pressing the momentary-contact horn button sounds the
vehicle horn.
Sliding Windows ( Enclosed Cab Only)
(Not Pictured)
The sliding windows are latched with a combination
slide bar and squeeze actuated latch.
Frame Tilt Left ................. move lever to the left
Frame Tilt Right ............... move lever to the right
Attachment Tilt Down ...... move lever forward
Attachment Tilt Up ........... move lever backward
OH0410
The attachment is self leveling and will retain any set
angle throughout boom raising, lowering, retracting or
extending operations.
OA0052

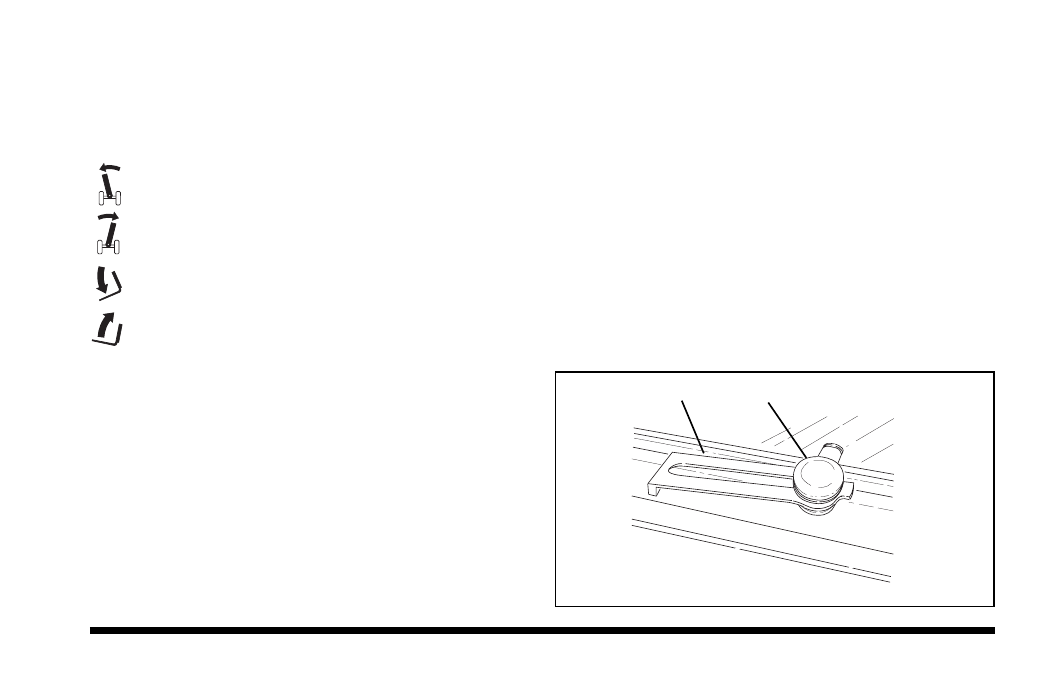

Figure 4
PIVOT ARM KNOB
