Poison Spyder Customs • TJ-YJ-CJ ROCKBRAWLER REAR BUMPER Page 7
6
X 5.5
6
X 5.5
6
X 5.5
5
X 5.5
5
X 4.5
5
X 4.5
5
X 4.5
5
X 5
5
X 5
5
X 5
5
X 5.5
5
X 5.5

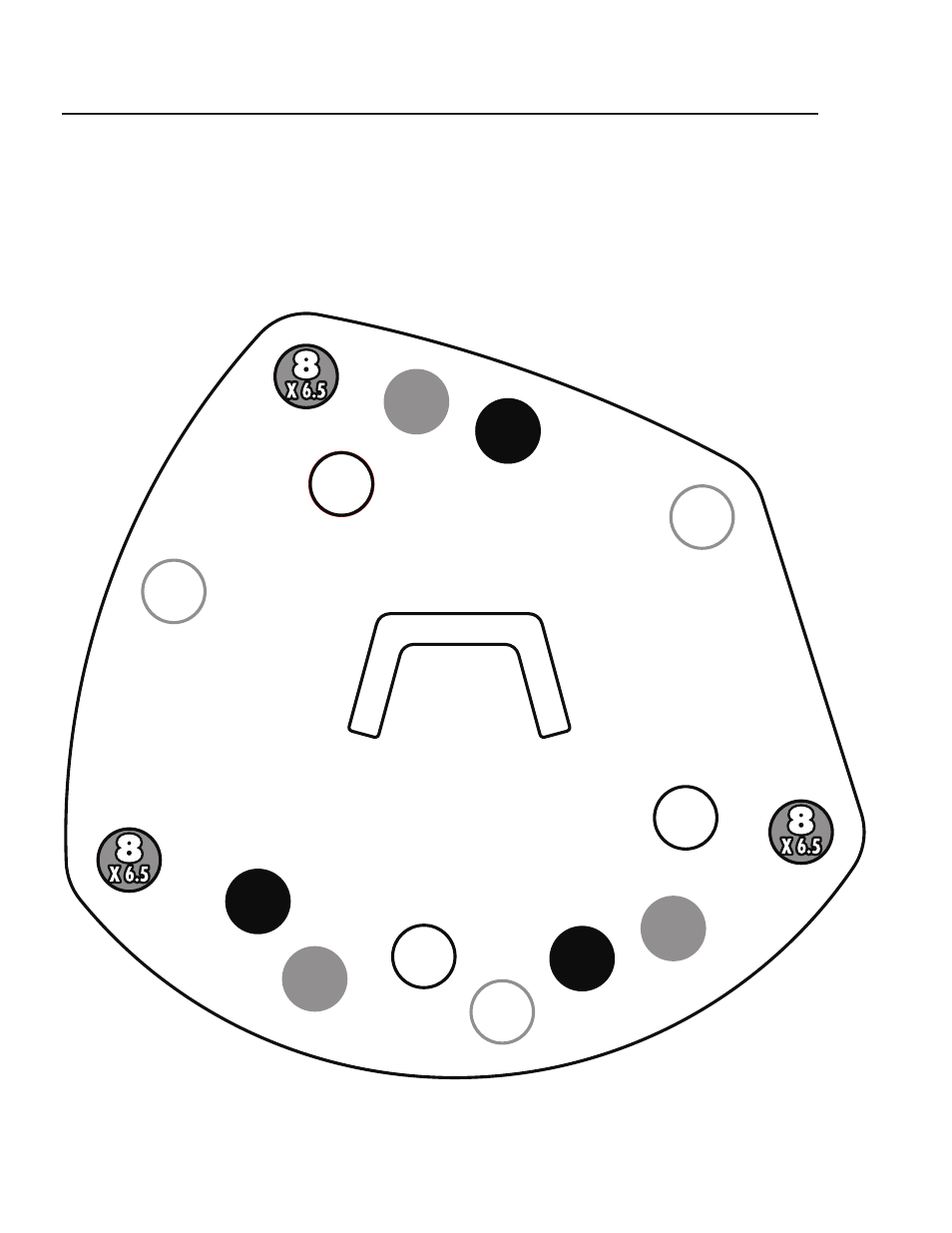

Use this Bolt Pattern Template to determine the
correct holes to use in the Tire Mount - Tire Side
plate, for your specific bolt pattern. The plate can
be used for any of 5 different bolt patterns, each of
which uses 3 holes which can be identified using
the template. The list at right identifies some of
the vehicle models each bolt pattern is typically
used with, although there may be exceptions.
5 X 4.5 ‘87-’96 Jeep YJ, ‘97-’06 Jeep TJ, ‘84-’01 XJ
5 X 5.5 Jeep CJ, 1/2-ton Ford & Dodge trucks*
5 X 5
2007+ Jeep JK
6 X 5.5 Toyota, 1/2-ton Chevy & Jeep trucks*
8 X 6.5 Ford, GM, Dodge & Jeep 3/4- & 1-ton trucks*
*Prior to converting to metric for various models
BOLT PATTERN TEMPLATE
