❑ Corrective Maintenance
98
Pump Ends
p/n: 029-0020-61-0
Pump Head Assembly
–
30 FS Series Only
Review heading 6a.1 “General Preparation” on page 85.
Also refer to the appropriate plate drawing of your specific pump model. See
Section 8, heading “Drawing Package” on page 151.
Pump Shaft Oil Seal, 30 FS Series
1.
Dismantle the
pump head
assembly, and
gasket from the
gearbox - remove
the upper four (4)
5/16”-18 screws
and the two (2)
lower 5/16”-18
screws of the
pump head. (See
Figure 6a-7:
“Replacing 30 FS
Series Pump
Shaft Oil Seal.”)
WARNING !
SECURE THE PUMP
HEAD ASSEMBLY TO
AN APPROPRIATE
HOIST TO PREVENT
POSSIBLE INJURY OR
DAMAGE.
2.
Move the pump head assembly to a suitable work area and safely support
the assembly.
3.
Remove (press–out) the oil seal and discard. Oil seals cannot be reused.
To replace, order Hale p/n: 296-2110-00-0. (See Figure 6a-7: “Replacing
30 FS Series Pump Shaft Oil Seal” on page 98.)
4.
Inspect all parts for excessive wear, chips, scoring or other damage. Repair
and/or replace accordingly.

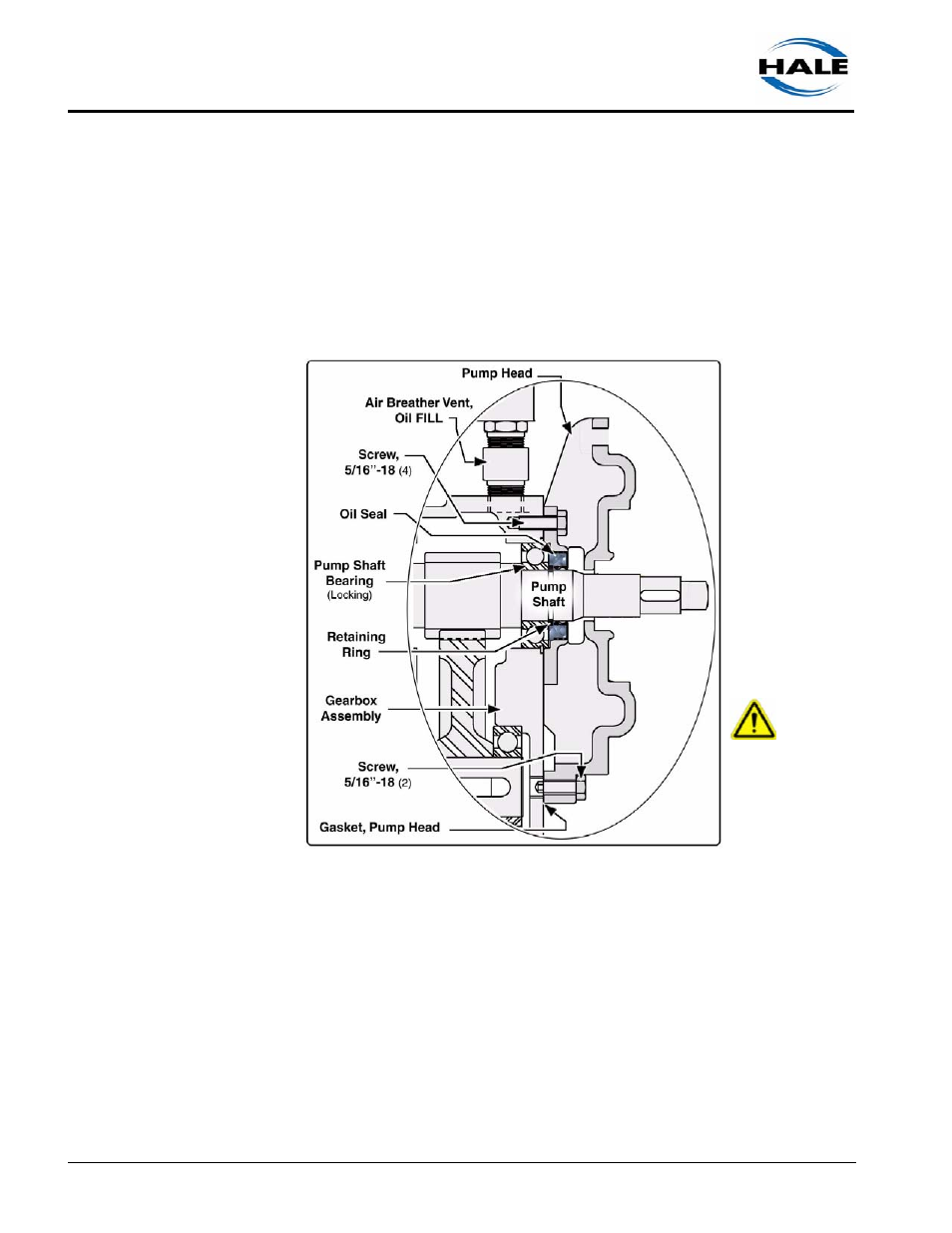

Figure 6a-7: Replacing 30 FS Series Pump Shaft Oil Seal
