19
Pump Ends
p/n: 029-0020-61-0
In tro d u ctio n
❑
2
Overview
2.1
PUMP ENDS

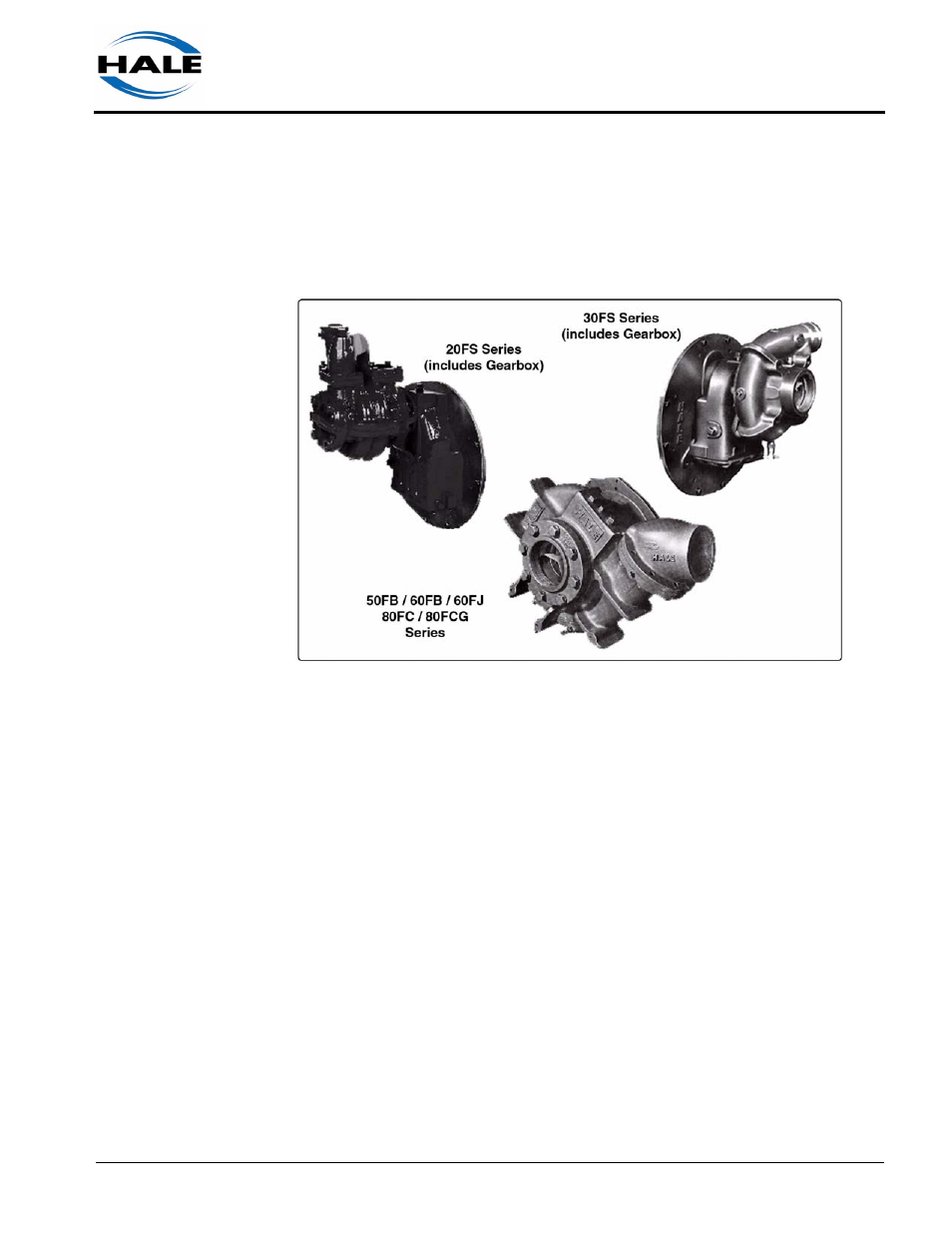

Figure 2-1: Typical Pump End Pumping Systems
The Hale Pump End Series Pumping Systems fulfill many types of in-ser-
vice fire fighting applications. The pumps are available in configurations
providing a wide range of pressures and flows to suit most user require-
ments in a transportable unit. (See Figure 2-1: “Typical Pump End Pumping
Systems.”)
The Pump End series pumping systems are capable pumping water from
draft, relay or hydrant and can deliver discharge pressures up to approxi-
mately 800 PSI (55 BAR) and flow up to approximately 3,000 GPM (11,356
LPM / 189 LPS), NFPA 1901 performance rated. For a unit overview, see
heading, 2.2 “Pumping System Overview” beginning on page 22.
Pump end systems are available in the following models:
20FS-2M / 20FS-3M / 20FS-4M Series, with Gearbox
❑
Standard centrifugal pump and gearbox assembly with universal
mounting bracket designed to bolt directly to either SAE #4 or #5
engine flywheel bell housing and available for gasoline or diesel
engines.
