❑ Corrective Maintenance
86
Pump Ends
p/n: 029-0020-61-0

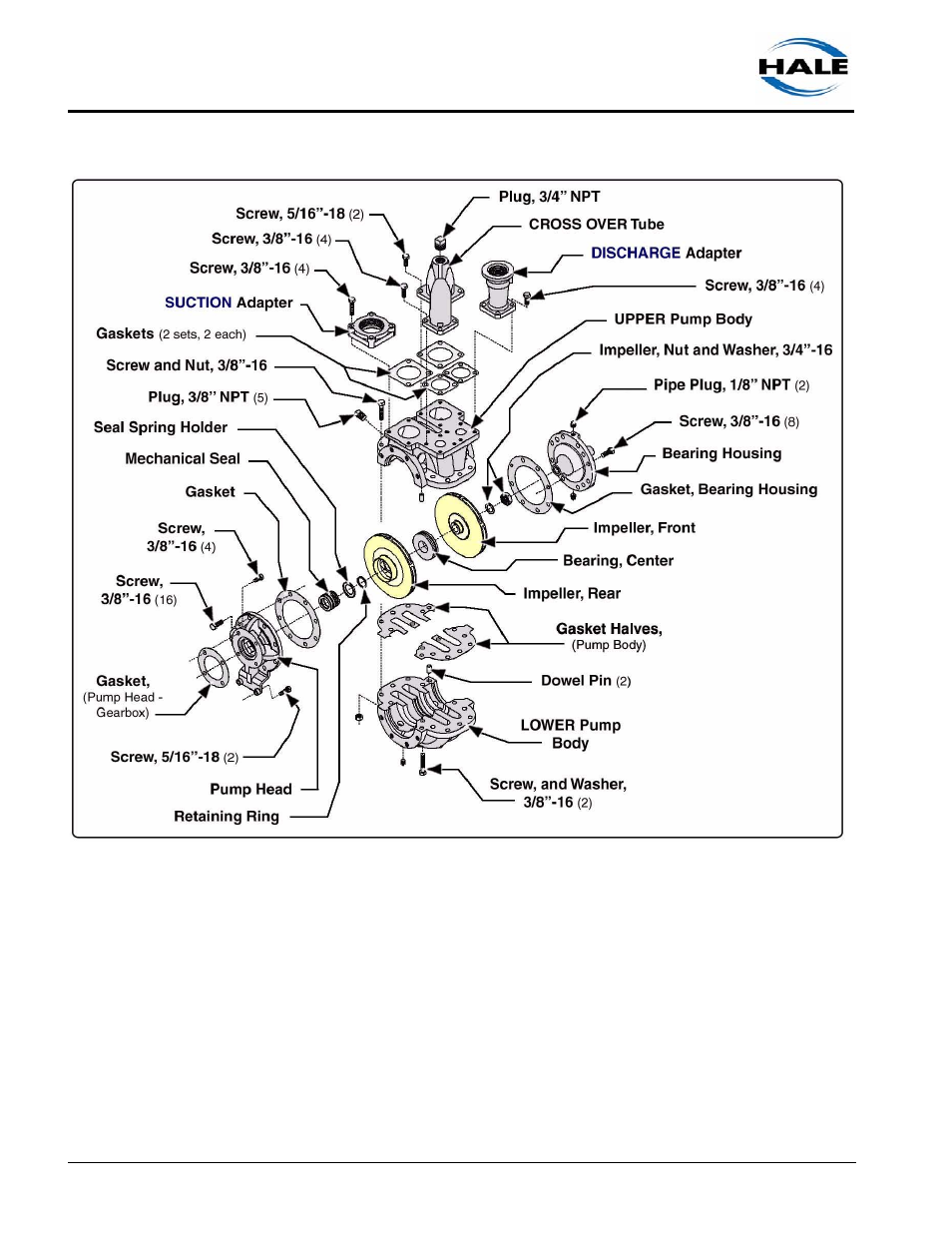

Figure 6a-1: 20FS Series, Pump and Bearing Housing Overview
2.
If installed, disconnect the primer hose from the bearing housing fitting (3/8”
NPT).
3.
Remove the eight (8) 3/8”-16 screws holding the housing to the volute
(pump body). Slide the bearing housing from the pump / impeller shaft.
4.
Examine the housing bearings and spring pins. Replace accordingly.
Note: If bearings (2) are being replaced, they are press-fit and both must be
replaced.
5.
Re-assemble by following the preceding in reverse order.
