Page 36
❑ Introduction
36
Pump Ends
p/n: 029-0020-61-0
The pedestal is constructed of fine grain cast iron, and consists of bearings,
an oil seal and an oil reservoir.
2.7
HALE ENGINE MOUNT BELL HOUSING
Model pump ends are available with an adapter to accept #2, #3, #4 and #5
SAE bell housings. Elastomeric drive discs are also available for 10”
(254mm) and 11.5” (292mm) clutch discs.
(See Figure 2-16: “Bell Housing Mount,” on page 36.)

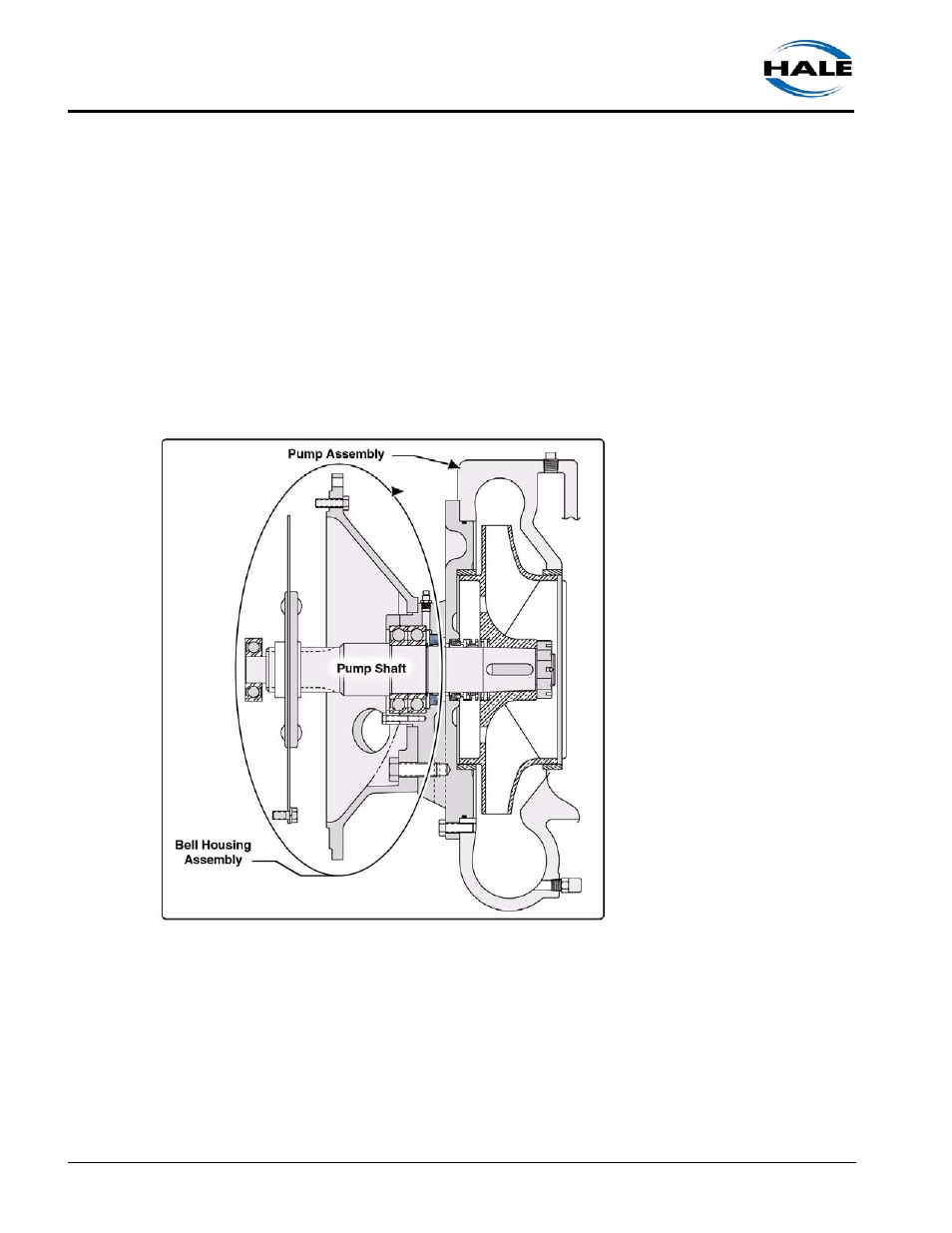

Figure 2-16: Bell Housing Mount
