Dual In-Line Memory Module (DIMM) 304
5

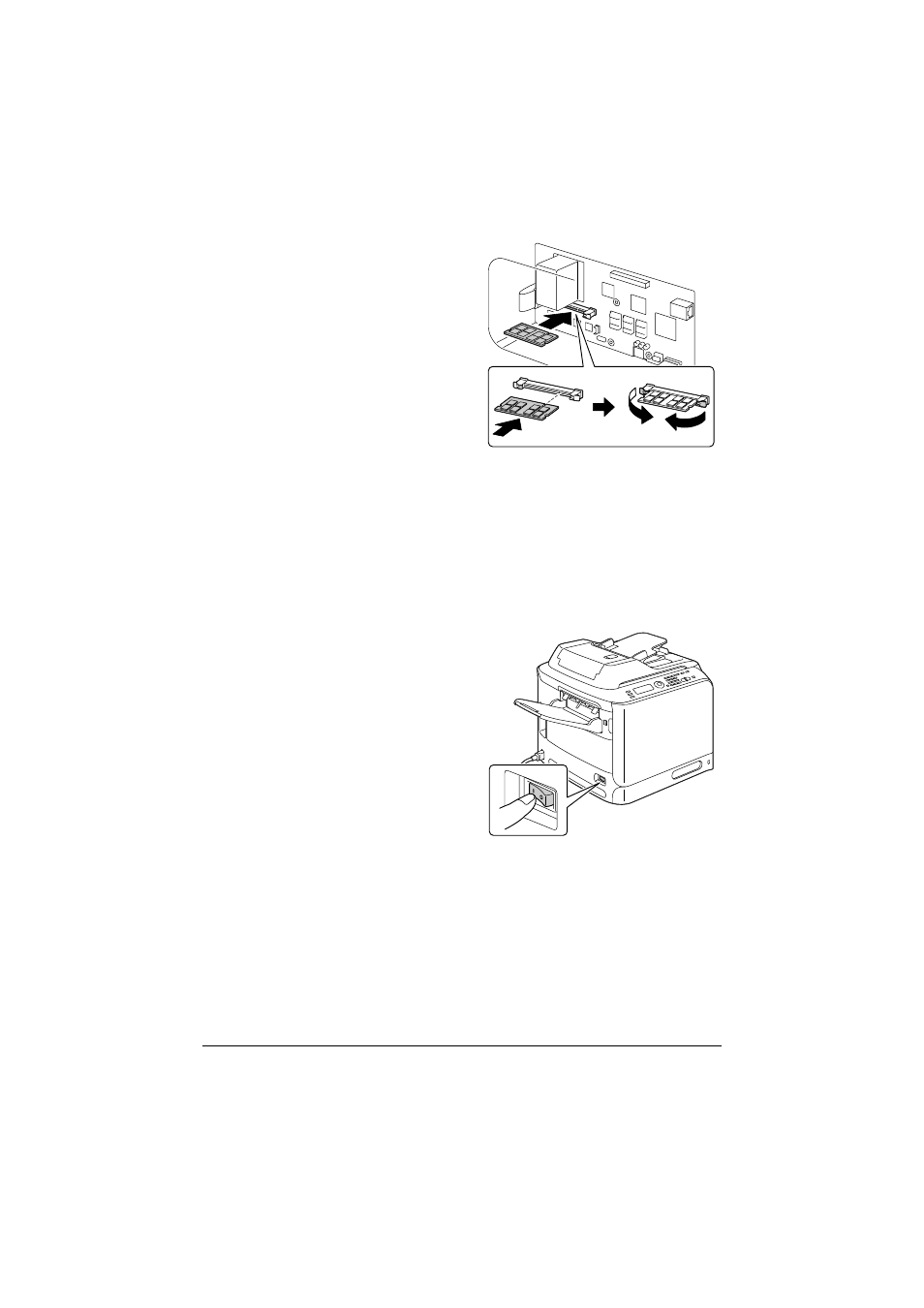

Insert the new DIMM straight
into the DIMM connector until
the latches snap into the locked
position.
Observe the keyed side of the
DIMM to align it with the connec-
tor. If you cannot snap the DIMM
into place, do not force it. Repo-
sition it, making sure that the
DIMM is seated completely in
the connector.
6
Close the inside cover, and then tighten the screw.
7
Close the rear cover.
8
Reconnect all interface cables.
9
Reconnect the power cord, and
turn on the machine.
10
Declare the additional Printer
Memory in the Windows printer driver (Properties/Configure tab).
11
Print a configuration page ( REPORT/STATUS / REPORT / CONFIGU-
RATION PAGE ) and verify that the total amount of the RAM installed in
your printer is listed.
