Data modules and asynchronous data units
555-233-116 96 Issue 4 October 2002

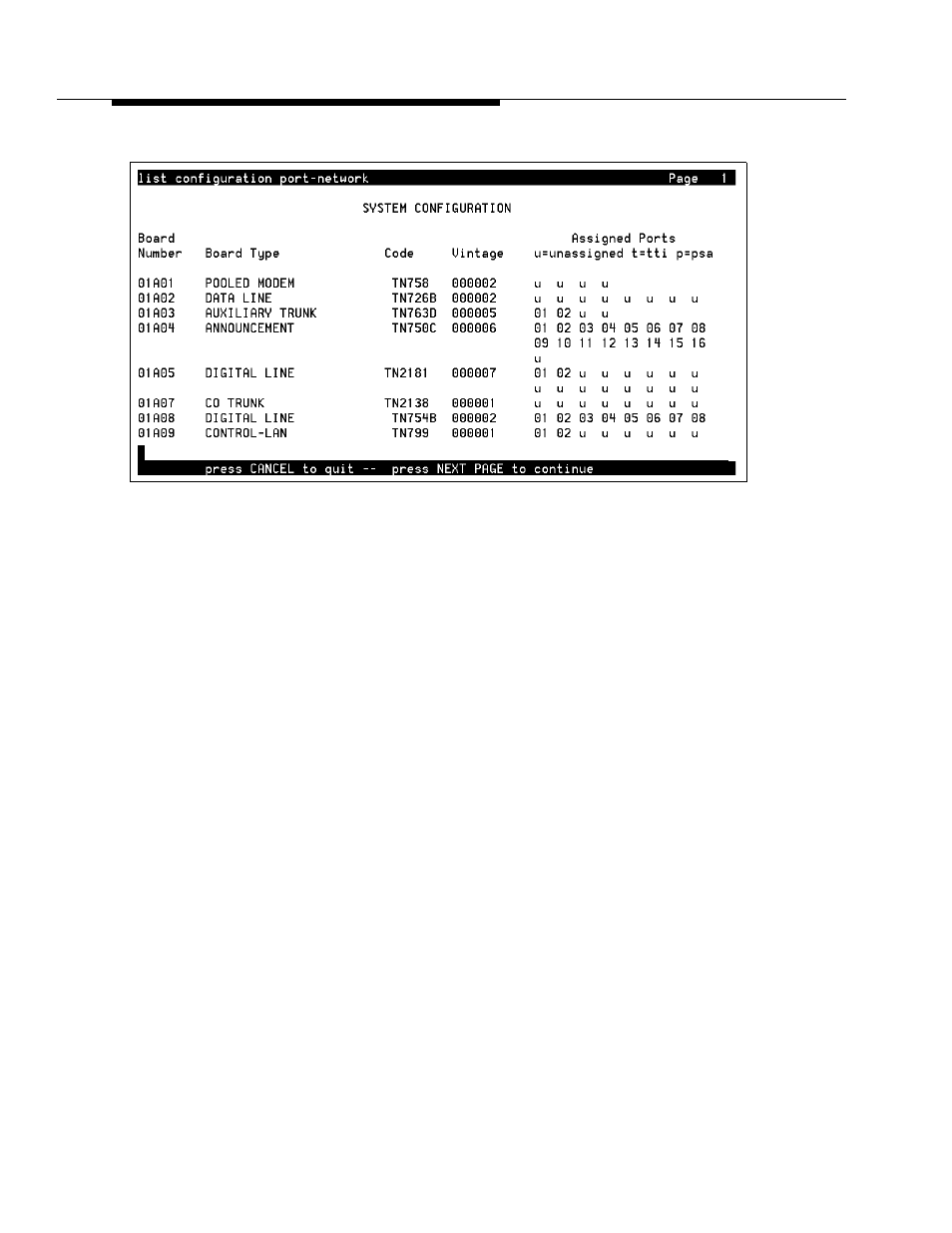

Screen 1. Typical system-configuration listing
2. Locate an unassigned port on a suitable circuit pack, and make a note of
the corresponding port number.
The port number is the Board Number, UUCSS (where UU is the 2-digit
cabinet number, C is the single-character carrier identifier, and SS is the 2-
digit slot number) followed by the next 2-digit number, PP, in the sequence
in the Assigned Ports fields at the right side of the form: UUCSSPP.
For example, in the listing above, the next available port address for the
TN2181 digital line circuit pack would be 01A0503.
3. From the DEFINITY administration console, open a new data-module form
by typing
add data-module next
The system automatically assigns the next available extension number to
the data module.
