Administer the data modules, Figure 18 – Avaya 555-233-116 User Manual
Page 95
Administer the data modules
Issue 4 October 2002
95
555-233-116
Figure 18.

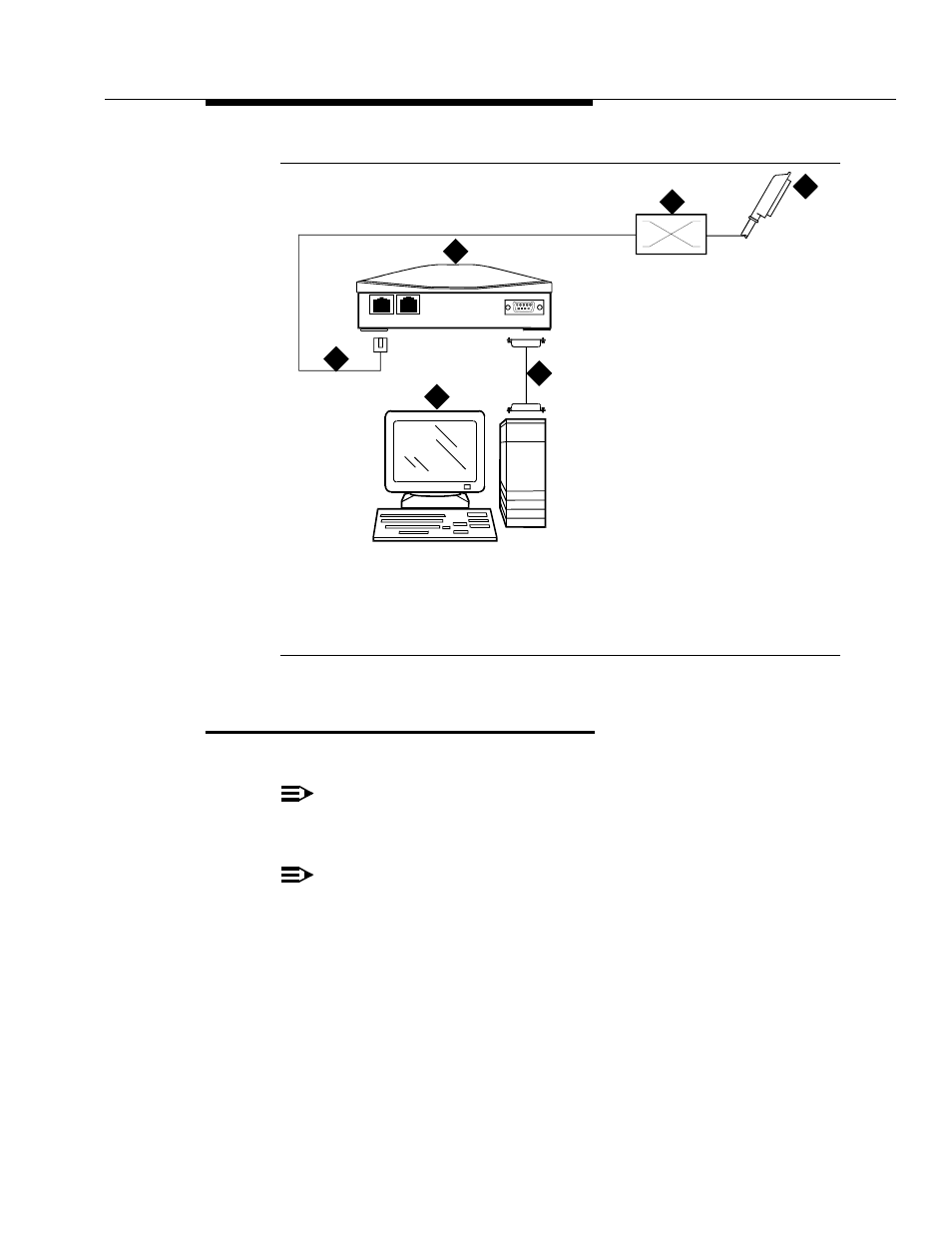

Typical ExpressRoute 1000 data module connections
Administer the data modules
You have to administer each data module that you attach to the system.
NOTE:
Only the basic procedure is covered here. For the full range of options, see
the Administrator’s Guide for Avaya MultiVantage Software.
NOTE:
Data modules, PGATE boards, printers connected through data modules,
SATs connected through data modules, and anything related to the X.25
connectivity protocol are not supported on the S8300 or S8700 Media
Server platforms.
1. Locate an available port. At the SAT, enter
list config port
1. To BRI circuit pack or DCP digital line
circuit pack
2. Main distribution frame (MDF)
3. ExpressRoute 1000 data module
4. PC administration terminal
5. Modular line cord
6. M25B (25-Pin RS-232) cable
cydf008 RPY 123097
