Paging and announcement equipment
555-233-116 206 Issue 4 October 2002
Loudspeaker paging for G700 Media
Gateways
On a G700 Media Gateway, the loudspeaker paging feature is connected through
a port on an MM711 Analog Media Module.
The G700 Media Gateway does not support an auxiliary trunk circuit pack.
Therefore, the loudspeaker feature through an auxiliary trunk is not supported on
a G700 Media Gateway. However, ECC G700 Media Gateway users can access
the loudspeaker paging feature if equipment is physically connected to a TN763
auxiliary trunk circuit pack in an EPN carrier of an ECC system.
Figure 54 shows the connections for loudspeaker paging, dial dictation, or
recorded announcement features on a G700 Media Gateway.

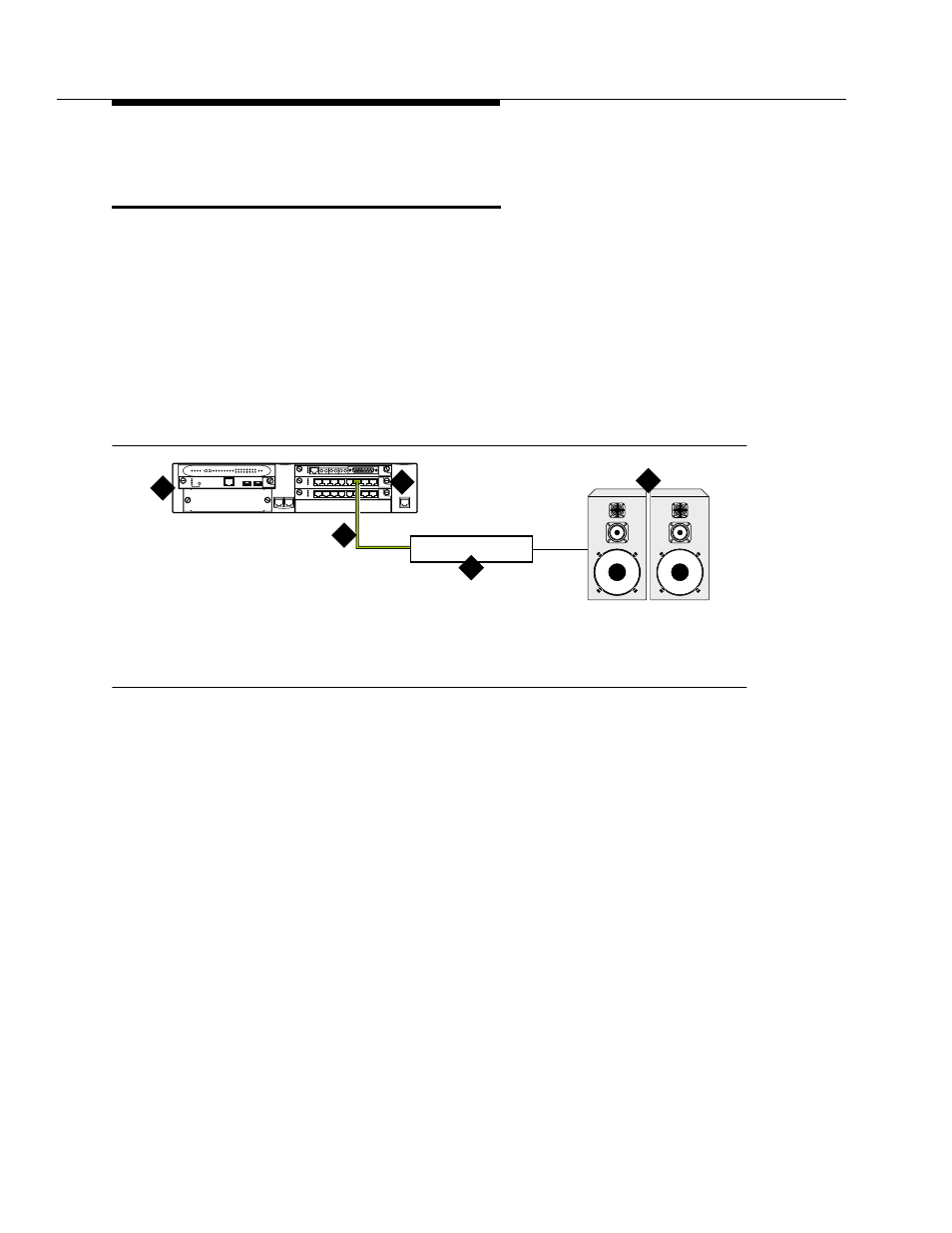

Figure 54. Typical loudspeaker equipment connections for a G700 Media Gateway
To hook up loudspeaker paging from a G700 Media Gateway:
1. Connect one end of an RJ-45 cable to a port in the MM711 Analog Media
Module.
2. Connect the other end of the RJ-45 cable to a customer-supplied
telephone hybrid device.
3. Follow the manufacturer’s instructions to properly connect the telephone
hybrid device to your loudspeaker paging system.
4. Administer the switch for the new equipment.
1. G700 Media Gateway
2. MM711 Analog Media Module
3. RJ-45 connection 4. Telephone hybrid (third party) device
5. Loudspeaker paging system
cydfspkKLC 091802
ALM TST ACT
1 2 3 4 5 6 8 7
ALM TST ACT
1 2 3 4 5 6 8 7
REMOVE
ALM TST ACT OK TO SHUT DOWN
SERVICES USB 1 USB 2
E1/T1 EIA 530A DCE
ALM TST ACT SIG
EI SO EM SM EO SI
1
2
4
3
5
