1145B power supply
Issue 4 October 2002 37 555-233-116
6. Remove the output power cable between the 1145B and the 1147B units.
The cable will not be reused.
7. Connect the P1 connector end of the T-cable to the bottom power
distribution unit.
8. Connect the P2 connector to the top distribution unit.
9. Connect the P3 connector to the 1145B.
10. Power-up the 1145B as described on the label on the side of the unit.

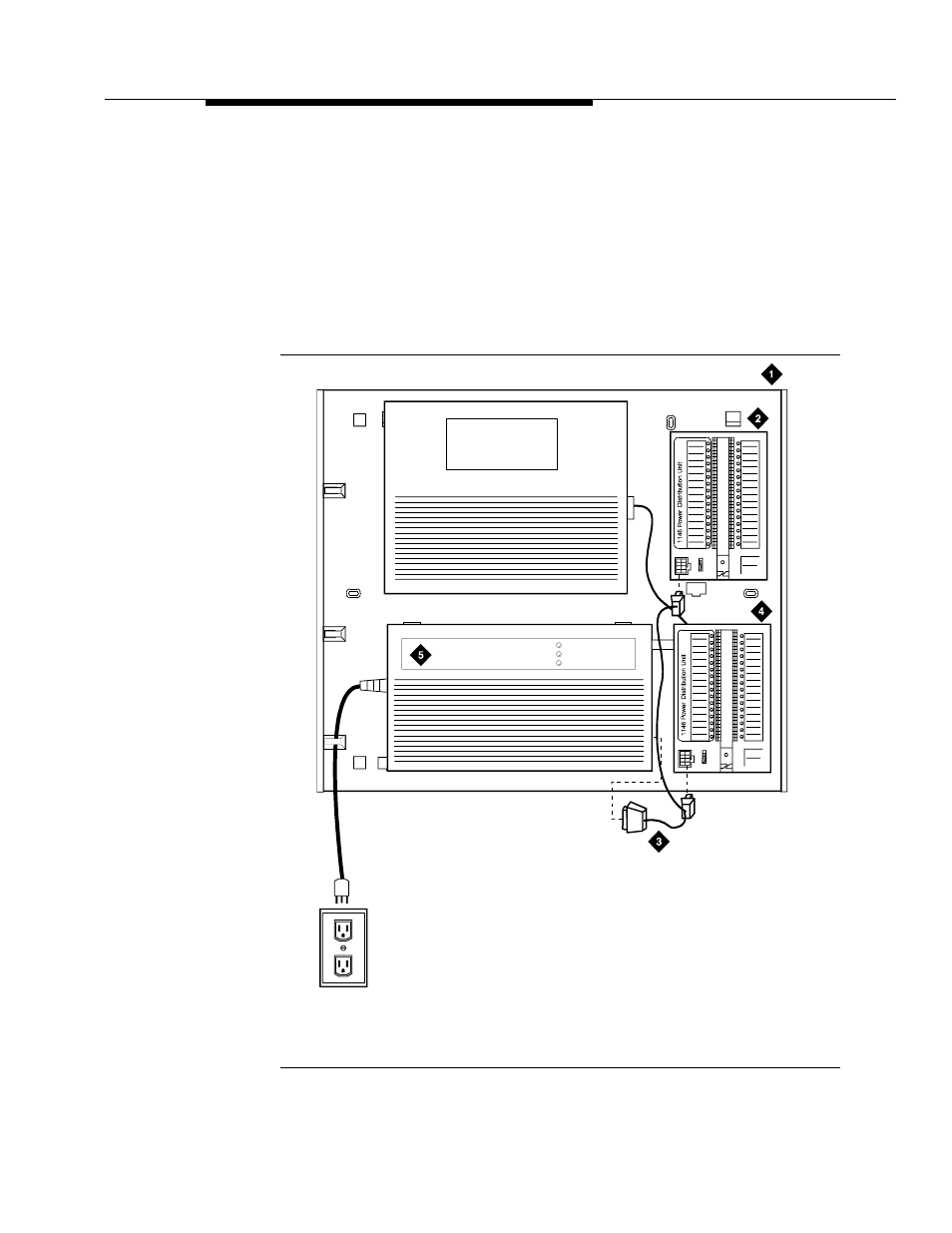

Figure 4. Expanded power distribution unit
1. Wall-mounting plate
2. Optional 1146 power distribution unit
3. T cable (H600-347-G7) 4. Standard 1146 power
distribution unit
5. 1145B power unit
1145 Power Unit
