Extenders for 2-wire DCP endpoints
555-233-116
46
Issue 4 October 2002
DCP extender, rack mount
shows a typical rack mount (multi-mount) DCP extender. Connections
from either a digital line 17-port 2-wire DCP circuit pack or a digital line 24-port
2-wire DCP circuit pack, are made through two DCP extender devices.
NOTE:
2-wire DCP extenders are not currently supported on G700 Media Gateway
configurations.

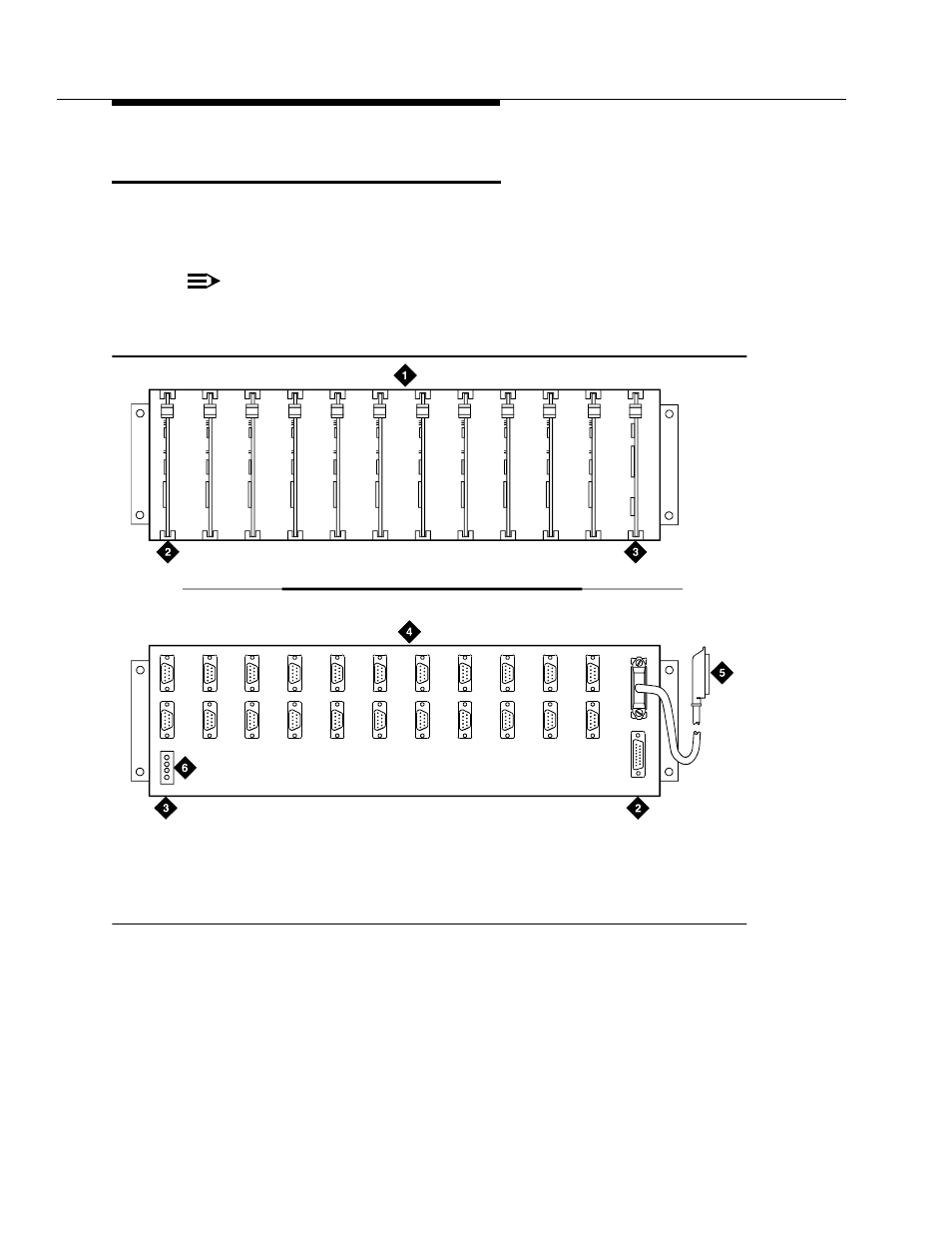

Figure 9.
Typical DCP extender connections
1. Front of rack mount assembly
2. First circuit pack in slot 1 (“A”)
3. Slot 12 (“L”)
4. Rear of rack mount assembly
5. 25-pair connector to the MDF and the digital
line circuit packs
6. Power connector
h2dferm PDH 100796
