Table 4 – Avaya 555-233-116 User Manual
Page 28
909A/B universal coupler
555-233-116
28
Issue 4 October 2002
shows the physical locations of the pins for J1, J2, and J3.

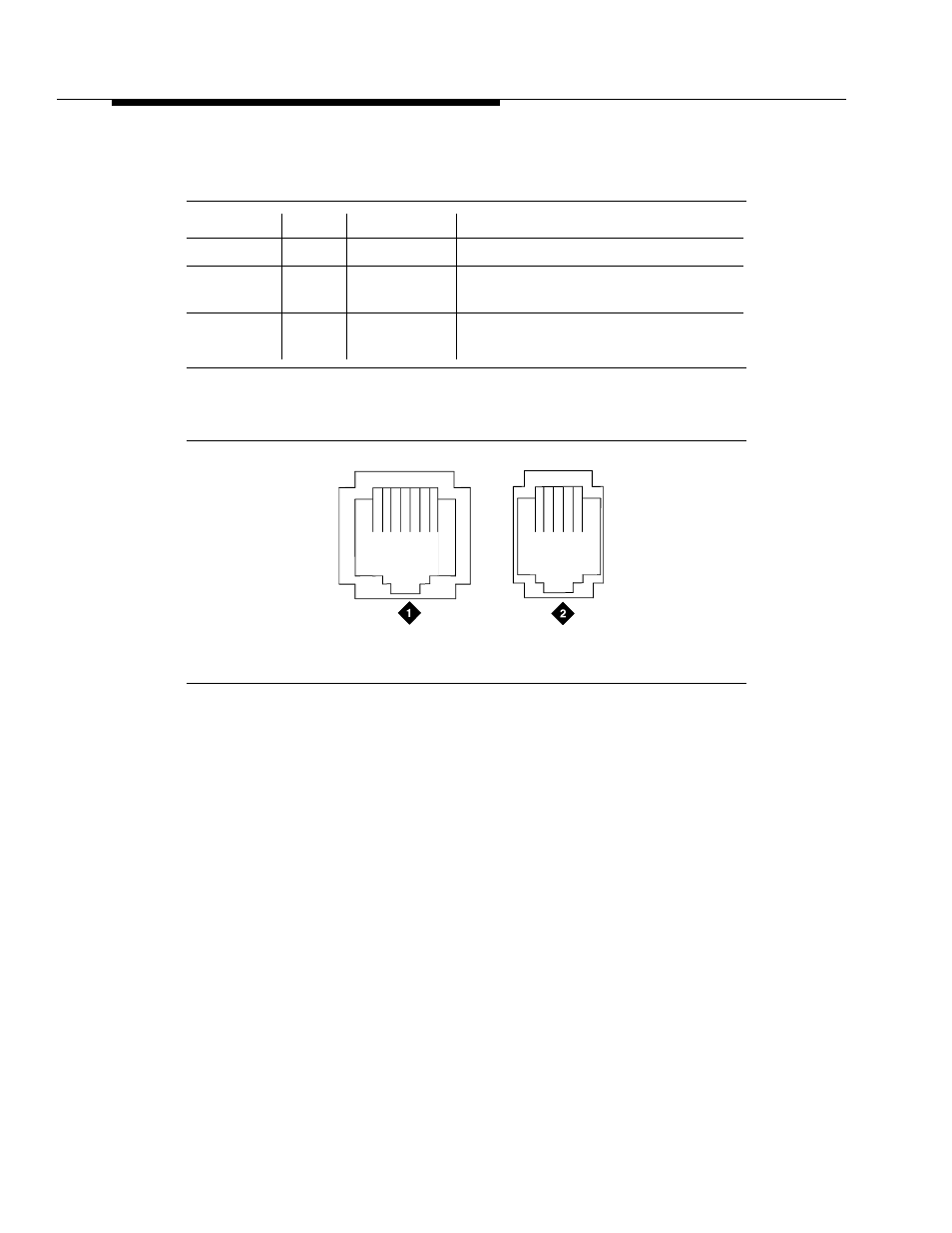

Figure 2.
Typical modular jack pinout
Table 4.
J3 Pin Assignments (Power Connections)
Pin Color
Designation
Description
1, 3, 4, & 7
—
—
Not used
2
Black
GRD
-48 RET or ground lead from system or
from positive lead of power supply
5
Yellow
-48 VDC
-48 VDC from system or from negative
lead of power supply
1. J1 and J2 8-pin modular jacks
2. J3 7-pin modular jack
1
8
2
5
mod_jack RBP 041796
