ISDN converters and adapters
555-233-116 158 Issue 4 October 2002
Converters for single-carrier cabinets
PRI-to-DASS and PRI-to-DPNSS converters
Figure 34 shows typical connections from the CCSC-1 PRI-to-DASS converter or
the CCSC-2 PRI-to-DPNSS converters to the coaxial facility.

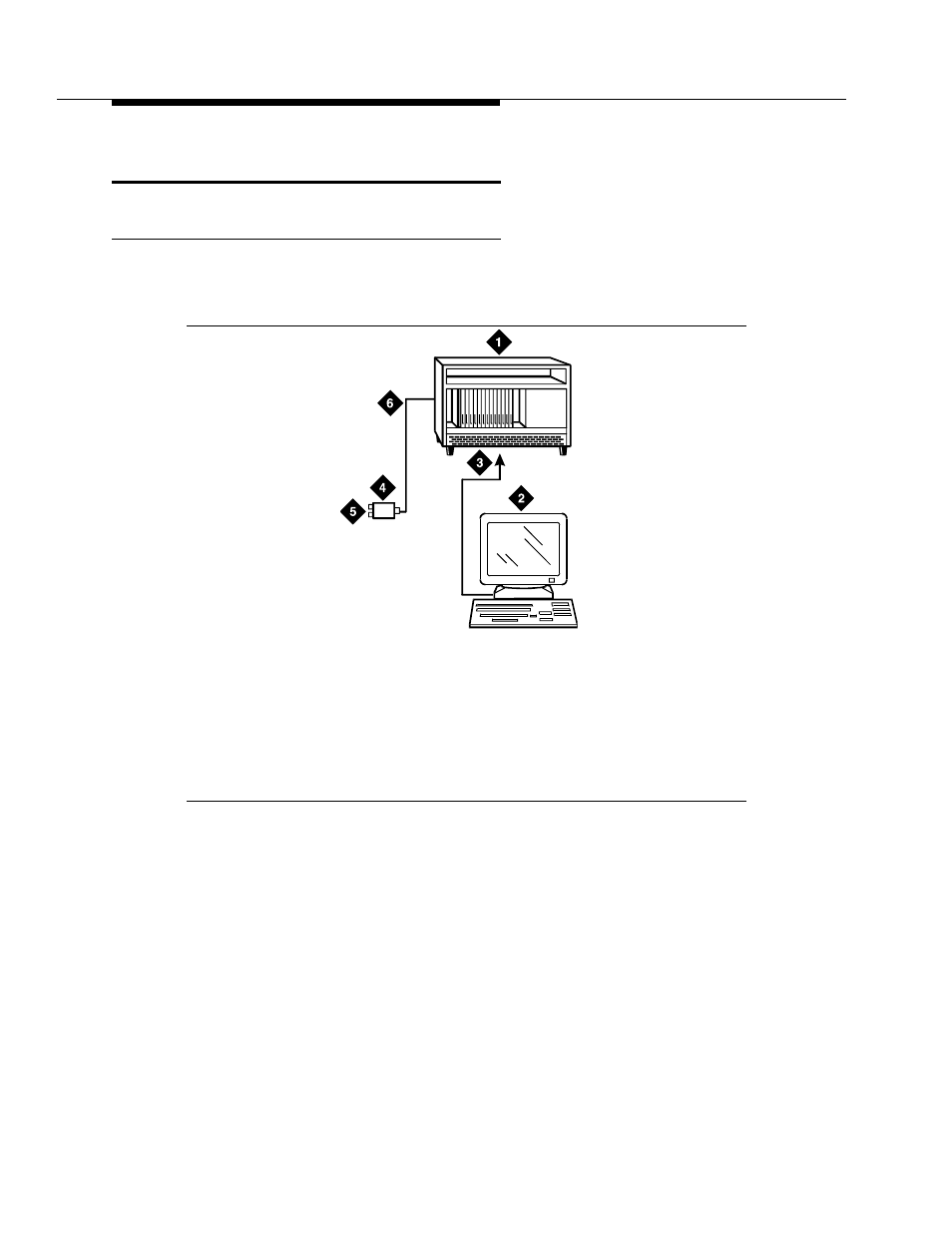

Figure 34. Typical DASS or DPNSS converter cabling
1. Plug the PC into the RS-232 connector on the front of the PRI converter
circuit pack.
2. Connect the coaxial Y-cable from the TN464F to the PRI converter circuit
pack.
3. Connect the opposite end of the Y-cable to the 888B coaxial converter.
1. To TN464F DS1 circuit pack and
either a CSCC-1 PRI-to-DASS
converter or a CSCC-2 PRI-to-
DPNSS converter circuit pack
2. Administration PC
3. RS-232 cable to front of PRI
converter circuit pack
4. 888B coaxial converter
5. Coaxial connection to 2-Mbps
facility
6. Coaxial cable from PRI converter
circuit pack to coaxial converter
0001 0 RBP 051396
