● High flow - Cv of 1.2 to 49.5
● Durable, robust construction
● Two mounting styles: inline or subbase
● 1/4" to 2" ports (BSPP, PTF, or ISO Rc threads)
● Wide range of voltages available
● Four functional types: available in 2/2, 3/2, 3/2
multi-directional, and 4/2 configurations

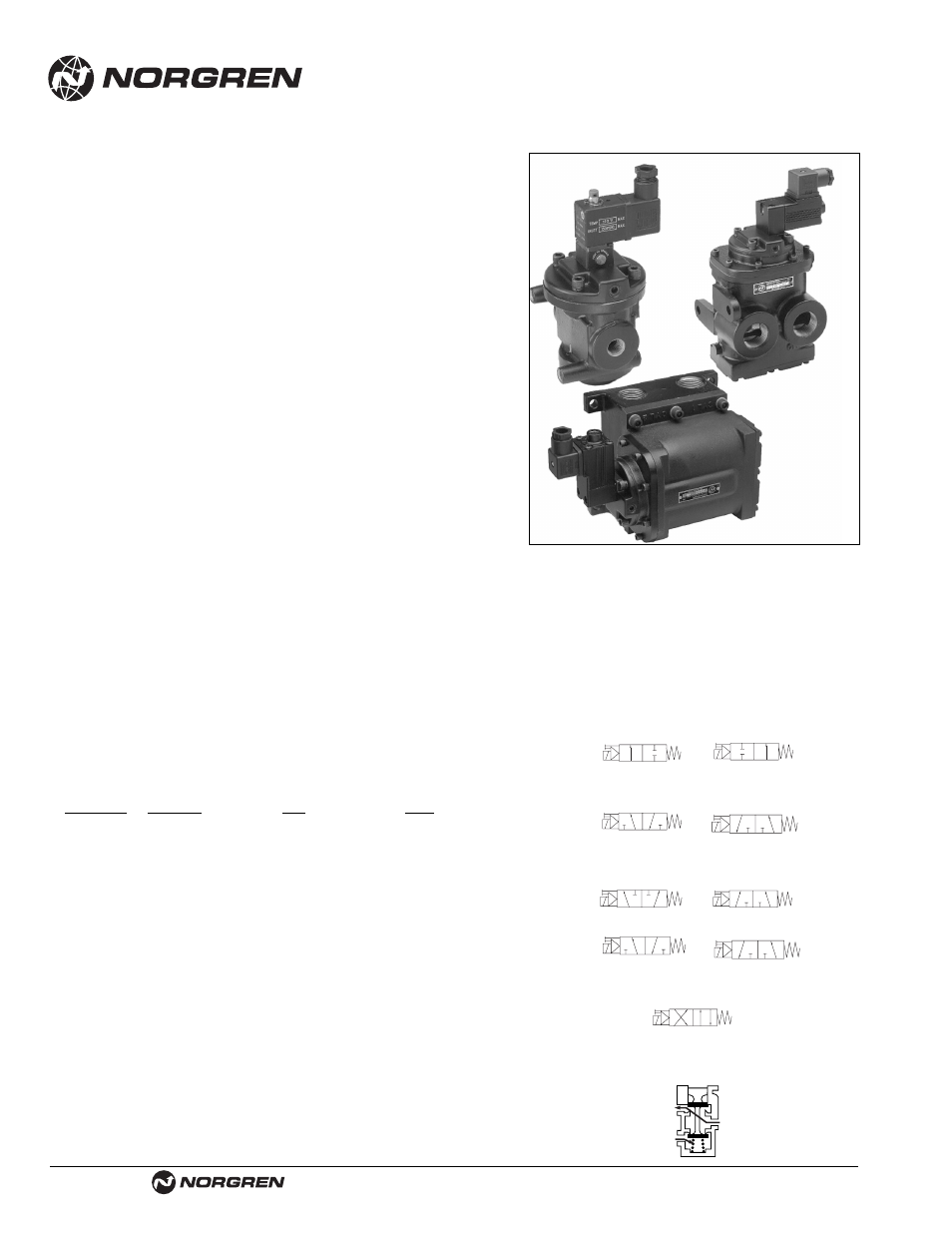

1/4" to 2" Solenoid Pilot Actuated
2/2, 3/2, & 4/2 Inline and Subbase Valves
Technical Data
Medium:
Filtered and lubricated or non-lubricated compressed air or vacuum.
Operation:
Poppet valve solenoid pilot actuated.
Mounting:
Through-holes in valve body and subbase.
Port Size:
1/4" to 2" PTF, BSPP, or ISO Rc.
Operating Pressure:
Maximum 150 psig (10.3 bar).
Flow Characteristics:
Basic Size Function Cv* l/min
1/4" 3/2 & 4/2 1.2 - 1.8 984 - 2,435
1/2" 2/2, 3/2 & 4/2 3.2 - 5.8 3,398 - 6,230
1" 2/2, 3/2 & 4/2 10.3 - 17.7 4,474 - 15,348
2" 2/2 & 3/2 39.6 - 49.5 38,228 - 54,085
*See VAL-12-58 for additional flow information.
Operating Temperature:
-20°F to 120°F** (-29°C to 49°C)
**Consult Technical Service for use below 34°F (+2°C).
Materials:
Body: Aluminum alloy body, piston, poppets and subbase.
Operators: Zinc or aluminum solenoid pilot operators, stainless steel or
steel, reinforced polyester, brass or polyurethane, acetal, copper wire.
Elastomers: Nitrile rubber seals. (Fluorocarbon seals are optional,
contact Technical Services.)
Ordering Information
To order standard poppet valves with coils, quote model
number and voltage code from tables overleaf, e.g.
order D1024C-00-CY1W6 for a 3-port, 2-position,
normally closed, Solenoid Pilot Operated, Spring
Return model with an internal pilot supply, fitted with
a 240/220V, 60/50Hz coil, and manual
non-locking override.
CYL2 CYL1
IN EXH
4-Way
3-Port/2-Position Multi-Directional
OUT B
A IN
Normally Closed
OUT
B
A
IN
Normally Open
3-Port/2-Position
4-Port/2-Position
2-Port/2-Position
IN
OUT
EXH
This example shows a 3-way
normally closed valve.
EXH IN
OUT
Normally Closed
B C
OUT
A
Normally Open
C B
EXH IN
OUT
A
Normally Closed
B C
EXH
IN
OUT
A
Normally Open
OUT2 OUT1
A IN
B C
Distributor
IN2 IN1
OUT A
B C
Selector
