Prospector Series Poppet Valves
All Dimensions in Inches (mm)
VAL-12-18 Littleton, CO USA Phone: 303-794-2611 www.norgren.com
4-Port/2-Position Inline Bodies

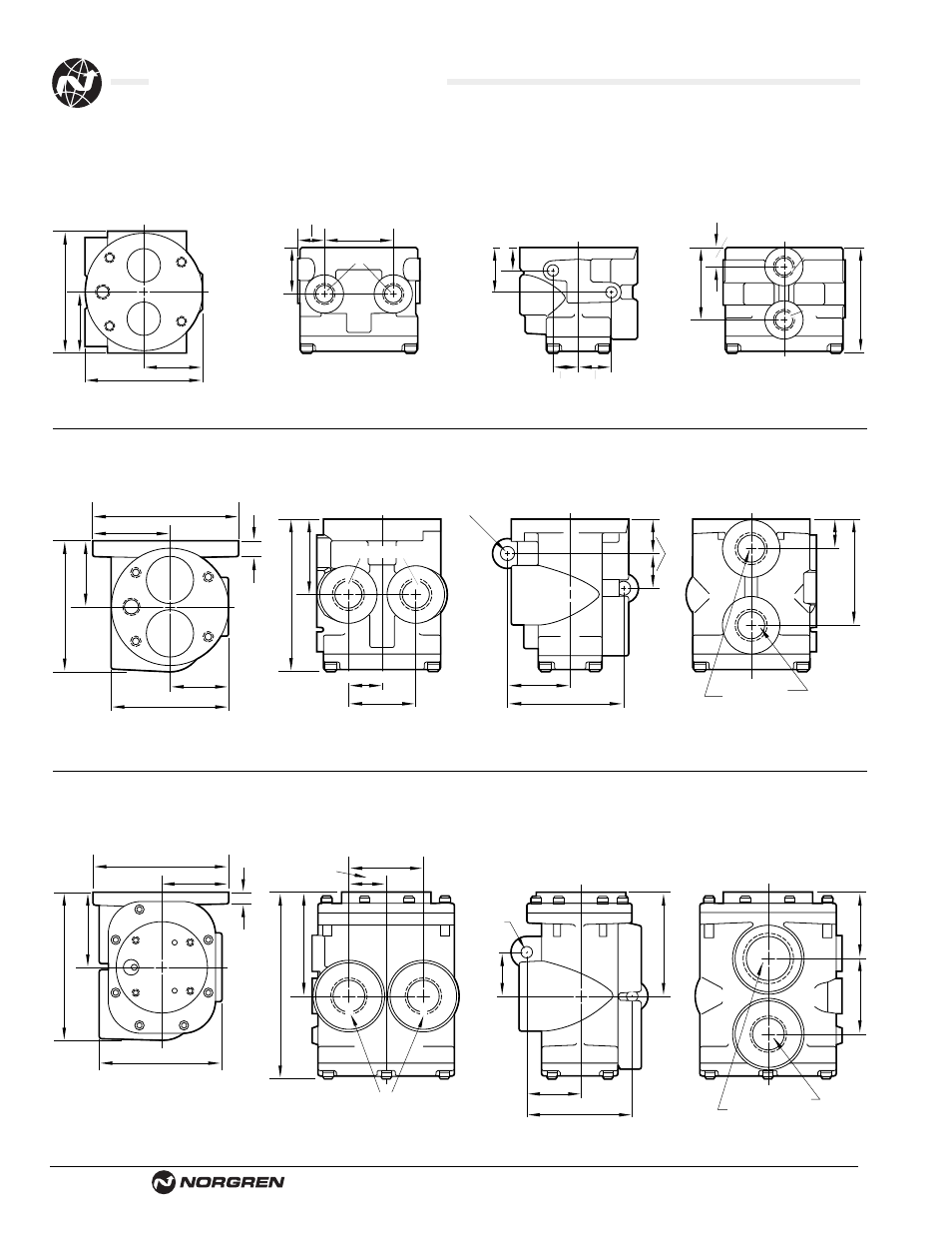

Basic 1/4 - Inch Body F101*C
(4-Port/2-Position Pilot Operated Valve)
CYL 2 CYL 1 IN
EX
1.75 (44.5)
.69 (17.5)
3.13 (79.5)
1.56 (39.6)
3.00 (76.2)
1.50 (38.1)
1.22 (31.1)
.66 (16.8) .84 (21.3)
1.15 (29.1)
1.84 (46.7)
.46 (11.7)
2.73 (69.3)
1/4", 3/8"
.59 (15.0)
1/4", 3/8"
3/8", 3/8"
Basic 1/2 - Inch Body F102*C
(4-Port/2-Position Pilot Operated Valve)
CYL 2 CYL 1 IN
EX
1.50 (38.1)
3.00 (76.2)
3.75 (95.3)
2.00 (50.8)
A
1.69 (42.9)
1.75 (44.5)
1.94 (49.3)
.88 (22.4)
.75 (19.1)
2.75 (69.9)
1.63 (41.4)
3.00 (76.2)
.34 (8.6) Dia. (2 plcs)
3.94 (100.1)
.38 (9.7) TYP
3/8", 1/2", 3/4"
1/2", 3/4", 3/4"
.88 (22.4)
3/8", 1/2", 3/4"
Basic 1 - Inch Body F103*C
(4-Port/2-Position Pilot Operated Valve)
CYL 2 CYL 1
IN
EXH
2.25 (57.2)
4.00 (101.6)
4.50 (114.3)
2.50 (63.5)
.38 (9.7) TYP
5.00 (127.0)
1.25 (31.8)
2.50 (63.5)
3.49 (88.6)
6.23 (158.2)
1.75 (44.5)
3.50 (88.9)
1.44 (36.6)
.41 (10.4)
Dia. (2 plcs)
3.49 (88.6)
2.24 (56.9)
2.50 (63.5)
3/4", 1", 1-1/4"
3/4", 1", 1-1/4"
1", 1-1/4", 1-1/4"
TOP VIEW
TOP VIEW
