Littleton, CO USA Phone: 303-794-2611 www.norgren.com VAL-12-5
Prospector Series Poppet Valves
4-Port/2-Position (4-Way)
This 4-way valve has a normally closed and a
normally open 3-way valve element in a common
body. Both elements are actuated simultaneously
by a single operator. The valve body has an inlet,
exhaust, and two outlet ports. In the normal
position, pressurized air is directed to one outlet
port and air is exhausted from the second outlet
port. In the actuated position, the connections
are reversed. Typical applications include control
of double acting cylinders and reversible air
motors.
This valve is available with an optional air or
solenoid momentary signal operator.
Momentary signal operators are used when it is
desirable to control the valve with two alternately
applied momentary signals. The first signal shifts
and holds the valve poppets in the actuated
position; the second allows the poppets to return
to the normal position.

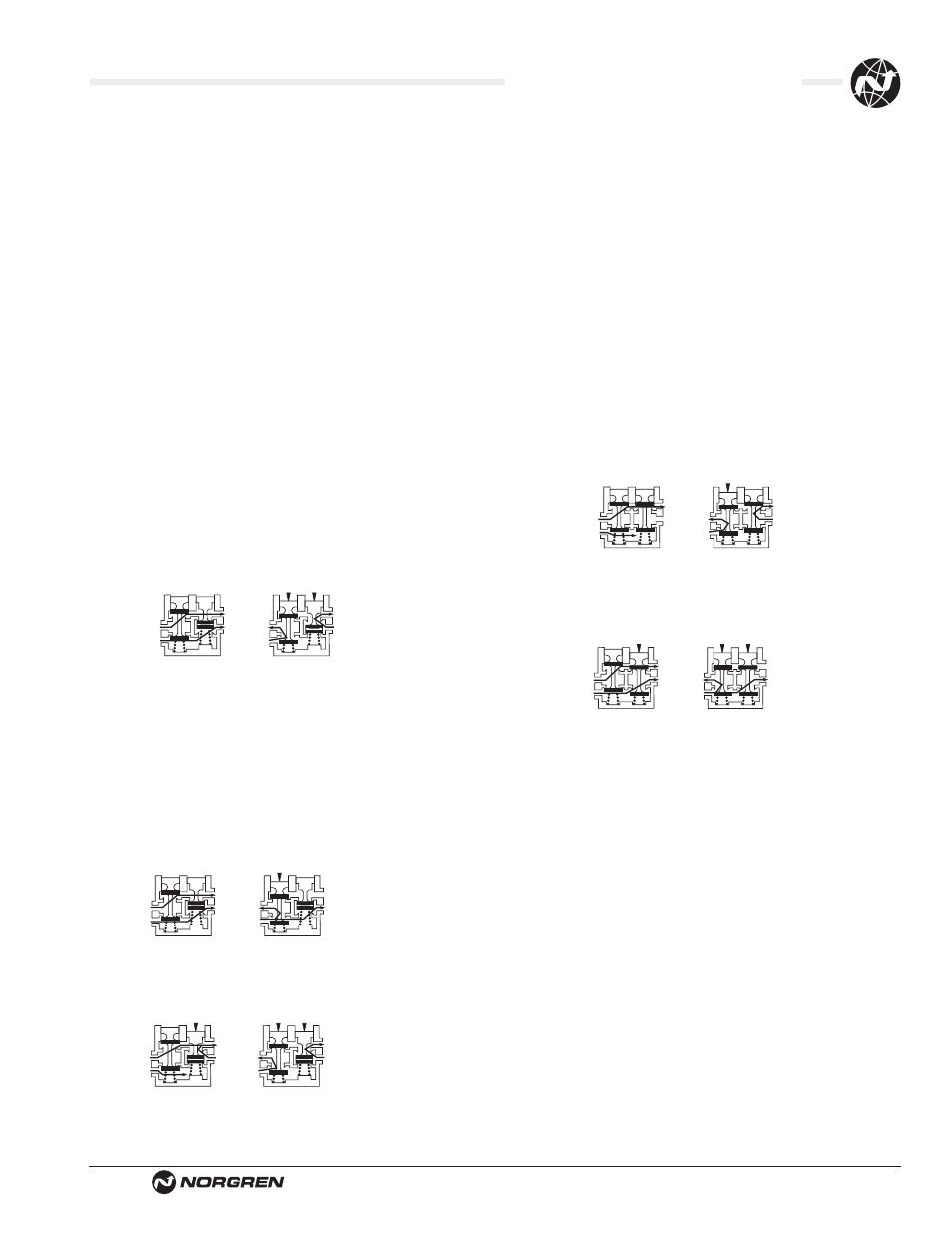

Flow Diagrams with Single and Momentary
Signal Operator
The 4-port/2-position (4-way) valve is also
available with an optional air or solenoid twin
operator, which allows independent operation of
each valve element.
Flow Diagrams with Twin Operator
NORMAL ACTUATED
A & B NORMAL A ACTUATED
B ACTUATED A & B ACTUATED
4-Port/2-Position (3-Way Twin, Normally
Closed)
This 3-way twin valve has two normally closed 3-way valve
elements in a common body. Each element is capable of
independent actuation by an air or a solenoid operator. The valve
body has an inlet, exhaust, and two outlet ports. In the normal
position, pressurized air is blocked at the inlet port and air is
exhausted from both outlet ports. It functions the same as two 3-
port/2-position valves but provides greatly simplified plumbing and
reduced package size.
NOTE
This valve may be used as a 3-position, 4-way, spring centered
valve with cylinder ports open to exhaust in centered or normal
position.
Flow Diagrams
A & B NORMAL A ACTUATED
B ACTUATED A & B ACTUATED
Cylinders Open to Exhaust Inlet Open to Cyl. 1
Cyl. 2 Open to Exh.
Inlet Open to Cyl. 2 Inlet Open to Cylinders
Cyl. 1 Open to Exh.
Cylinders Open to Exhaust Inlet Open to Cyl. 1
Cyl. 2 Open to Exh.
Inlet Open to Cyl. 2 Inlet Open to Cylinders
Cyl. 1 Open to Exh.
Inlet Open to Cyl. 2 Inlet Open to Cyl. 1
Cyl. 1 Open to Exh. Cyl. 2 open to Exh.
CYL
1
IN
CYL
2
EXH
CYL
1
IN
CYL
2
EXH
CYL
1
IN
CYL
2
EXH
CYL
1
IN
CYL
2
EXH
CYL
1
IN
CYL
2
EXH
CYL
1
IN
CYL
2
EXH
CYL
1
IN
CYL
2
EXH
CYL
1
IN
CYL
2
EXH
CYL
1
IN
CYL
2
EXH
CYL
1
IN
CYL
2
EXH
