10.ADC & DAC DIGITAL FILTERS

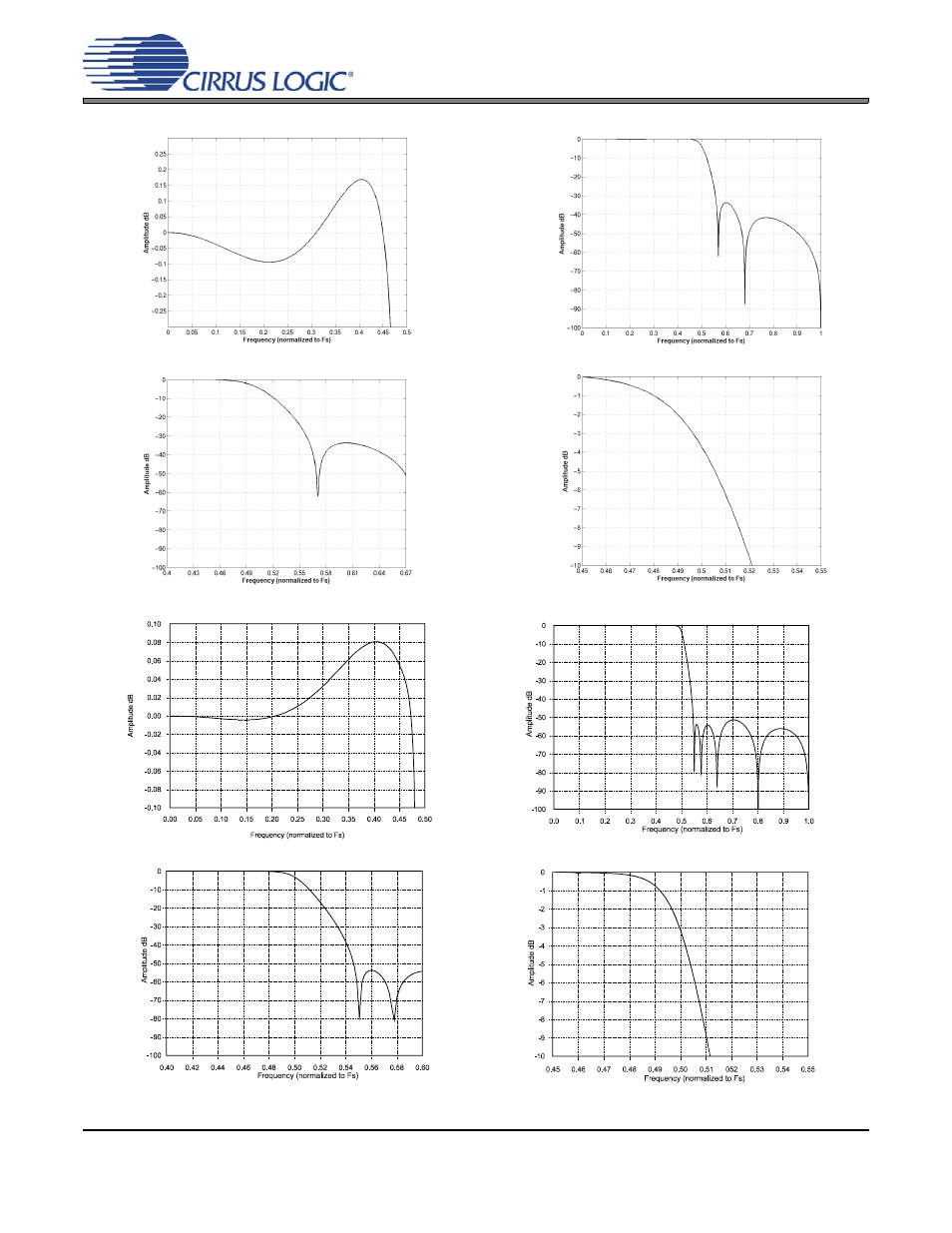

Figure 34. ADC Passband Ripple

Figure 35. ADC Stopband Rejection

Figure 36. ADC Transition Band

Figure 37. ADC Transition Band Detail

Figure 38. DAC Passband Ripple

Figure 39. DAC Stopband

Figure 40. DAC Transition Band

Figure 41. DAC Transition Band (Detail)
