56
DS679F1
CS42L51
6.7
ADCx Input Select, Invert & Mute (Address 07h)
ADCX Input Select Bits (AINX_MUX[1:0])
Default: 00
Function:
Selects the specified analog input signal into ADCx. The microphone pre-amplifier is only available when
PDN_PGAx is disabled. See
ADCX Invert Signal Polarity (INV_ADCX)
Default: 0
0 - Disabled
1 - Enabled
Function:
When enabled, this bit will invert the signal polarity of the ADC x channel.
ADCX Channel Mute (ADCX_MUTE)
Default: 0
0 - Disabled
1 - Enabled
Function:
The output of channel x ADC will mute when enabled. The muting function is affected by the ADCx Soft bit
(SOFT).
7
6
5
4
3
2
1
0
AINB_MUX1
AINB_MUX0
AINA_MUX1
AINA_MUX0
INV_ADCB
INV_ADCA
ADCB_MUTE ADCA_MUTE
PDN_PGAx
AINx_MUX[1:0]
Selected Path to ADC
0
00
AIN1x-->PGAx
0
01
AIN2x-->PGAx
0
10
AIN3x/MICINx-->PGAx
0
11
AIN3x/MICINx-->Pre-Amp
(+16/+32 dB Gain)
-->PGAx
1
00
AIN1x
1
01
AIN2x
1
10
AIN3x/MICINx
1
11
Reserved
MUX
AIN1x
AIN2x
AIN3x / MICINx
PGA
+16/
32 dB
MUX
AINx_MUX[1:0]
PDN_PGAx
AIN1x
AIN2x
AIN3x
Decoder
ADC

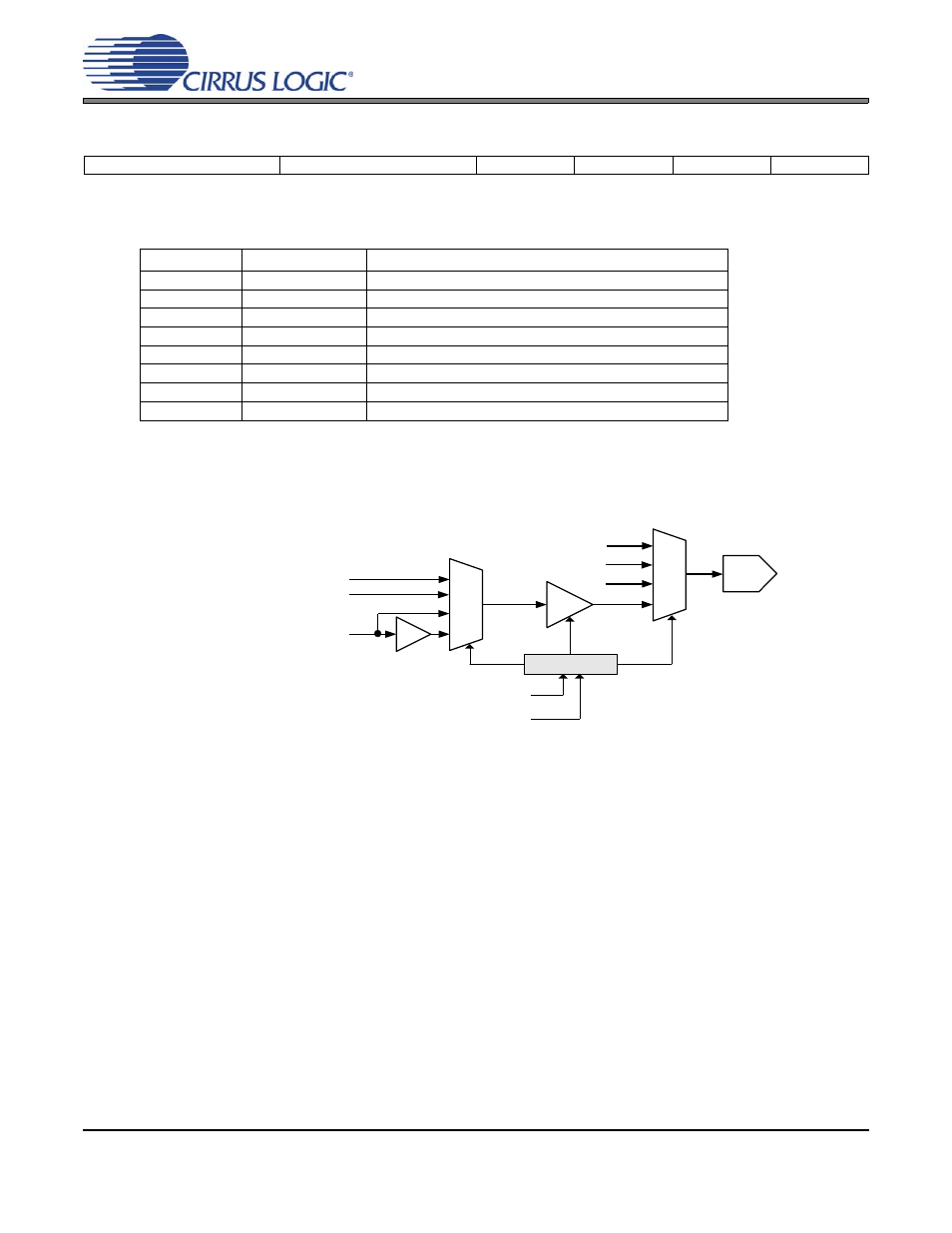

Figure 26. AIN & PGA Selection
